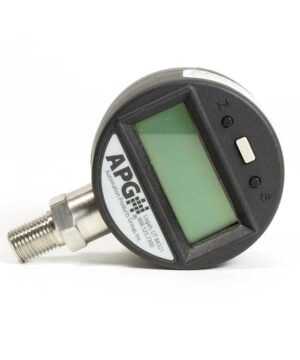

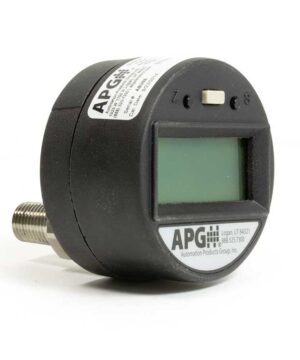

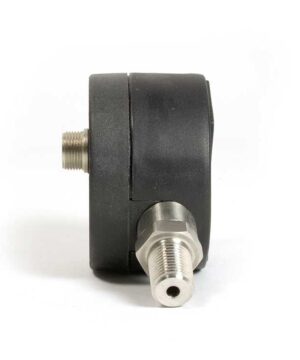

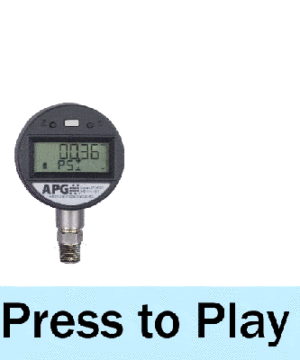

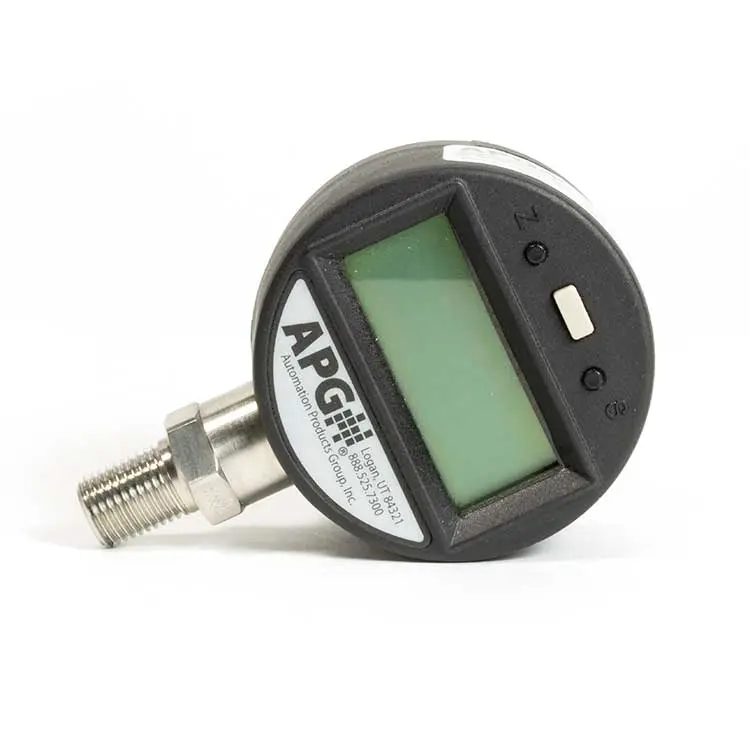

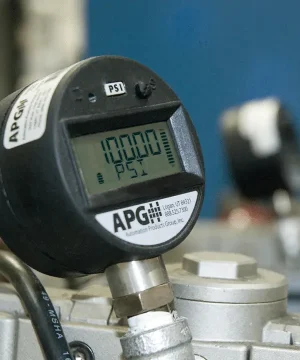

General Purpose Digital Pressure Gauges

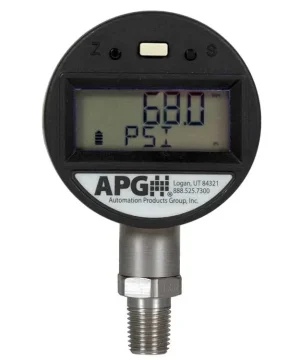

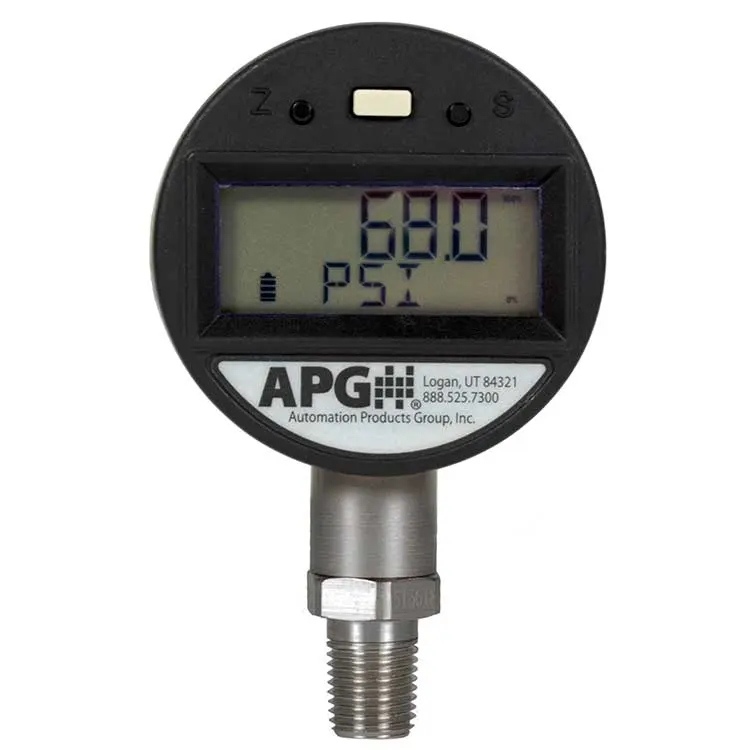

PG5

DESCRIPTION
Features

Full Featured Gauge For Indoor Use

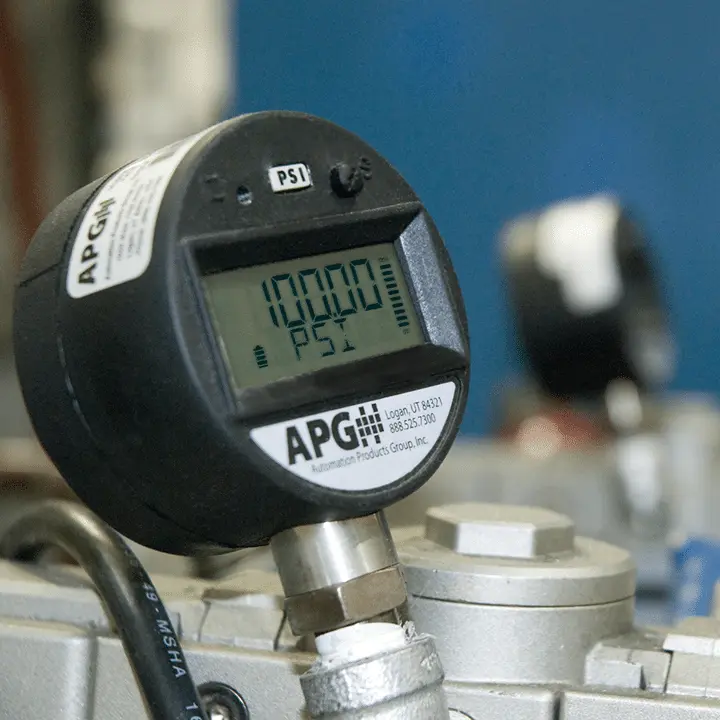

The PG5 General Purpose Digital Pressure Gauges are designed for accurate pressure measurements in indoor environments. As the core model in the PG series, the PG5 offers advanced features like tare, peak hold, max/min, and more. These gauges provide high accuracy, reducing common issues like vibration and drift, ensuring reliable measurements. The easy-to-use interface is designed for quick navigation with only three buttons. Available in a wide range of pressure ranges up to 10,000 PSI, the PG5 is ideal for a variety of applications requiring precise pressure control.

Zeroing Made Easy: Tare function for zeroing
Peak Recording: Peak hold for recording maximum pressure
Pressure Tracking: Max/Min for tracking pressure fluctuations
High Accuracy: ± 0.25% of full scale, NIST ± 0.1% available in select ranges
Wide Pressure Range: Pressure range up to 10,000 PSI
Multiple Outputs: 4-20mA, 0-2 VDC, 0-5 VDC
Reliable Power Supply: Battery-powered with 9V battery or external 9-28 VDC power
User-Friendly Interface: Simple operation with a 3-button menu system
Built to Last: Durable with 15-5 SS and 316L SS wetted materials

Description
Additional information

PG5 Datasheet

PG5 User Manual

Performance

Accuracy (linearity & hysteresis):
- ±0.25% of full scale (BFSL)
- ±0.1% accuracy in selected ranges
Stability – One Year Zero Drift: <±1% FS
Thermal Zero Shift: ±0.04% FS/ ºF
Thermal Sensitivity Shift: ±0.04% FS/ ºF
Life: 10 million cycles minimum
Adjustments: Auto zero, tare

Environmental

Compensated Temp: 20º – 130ºF (-7º – 54ºC)
Storage Temp: -40º – 160ºF (-40º – 71ºC)
Operating Temp: 0º – 160ºF (-18º – 71ºC)

Electrical

Battery Option:
- (1) Standard 9V (typical life 700 hrs)
- Auto-off: 2 – 32 minutes
- Low battery detection with 25% increments
External Power Option: 9-28 VDC
5-Pin M-12 Connector

Programming

Programmable Features:
- User selectable units of measure, Max/Min
- Reset & Reading, Peak-Hold, Tare, Sample Rate,
- Range Adjustment, Adjustable Resolution,
- Auto-Off

Connectivity

Output Options: 4-20 mA, 0-2 VDC, 0-5 VDC

Physical

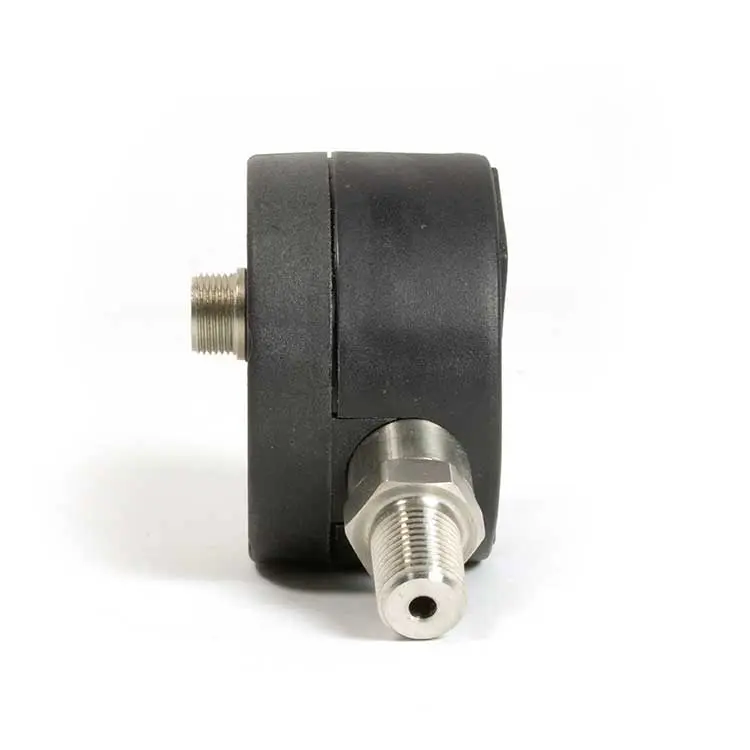

Size: 2.66” x 1.55” (67.6 x 39.4 mm)
- Connection: 1.25” (31.8 mm)
Weight: 0.36 lb (163 grams)
Injected molded case (EMI-X® PDX-W-88341)
Wetted Materials:
- 316L SS: up to 5,000 psi
- 15-5 SS: 5,000 psi and above

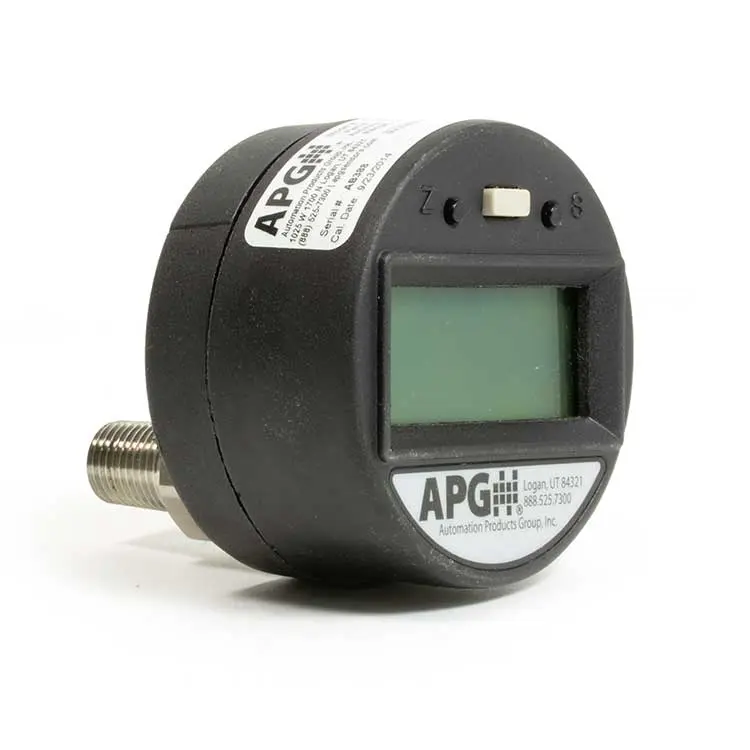

Display: 5 digit LCD, 0.4 in. digits

Certifications

NIST certifi cation on select ranges
CE

What is the PG5 Digital Pressure Gauge used for?

The PG5 is designed for accurate indoor pressure measurements in a variety of applications, including industrial processes, HVAC systems, and laboratory testing. It provides high-precision readings and advanced functions for pressure monitoring.

What pressure ranges are available for the PG5?

The PG5 is available in multiple pressure ranges, with options up to 10,000 PSI, making it suitable for a wide range of applications requiring precise pressure control.

What advanced functions does the PG5 include?

The PG5 features several useful functions, including:

Tare Function – Allows zeroing out unwanted pressure offsets.
Peak Hold – Captures and holds the highest pressure recorded.
Max/Min Tracking – Displays the maximum and minimum pressures observed during use.

Is the PG5 durable for harsh environments?

Yes, the PG5 is built with 15-5 stainless steel (SS) and 316L SS wetted materials, ensuring durability and resistance to corrosion in demanding applications.

Can the PG5 be used for absolute pressure measurement?

Yes, the PG5 is available in both gauge pressure and absolute pressure models, providing flexibility depending on your measurement needs.

BATTERIES	1 9V (700 hrs)
CERTIFICATION	CE, NIST
OUTPUT	4-20 mA, Voltage
INDUSTRY	Industrial Automation
PRESSURE	0-10,000 psi
