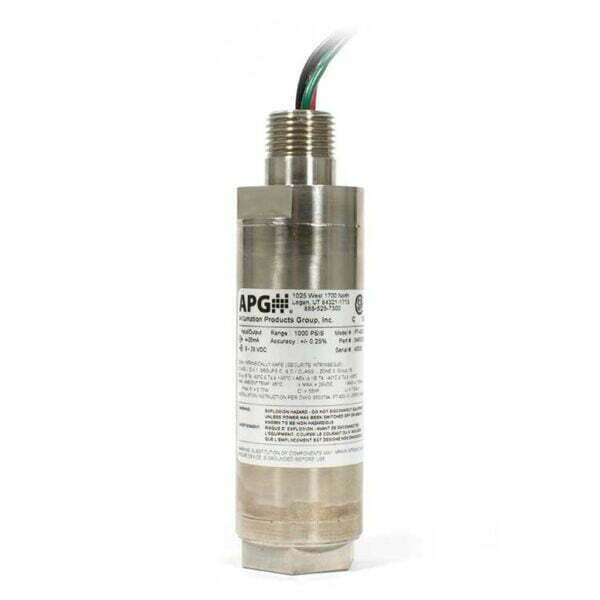

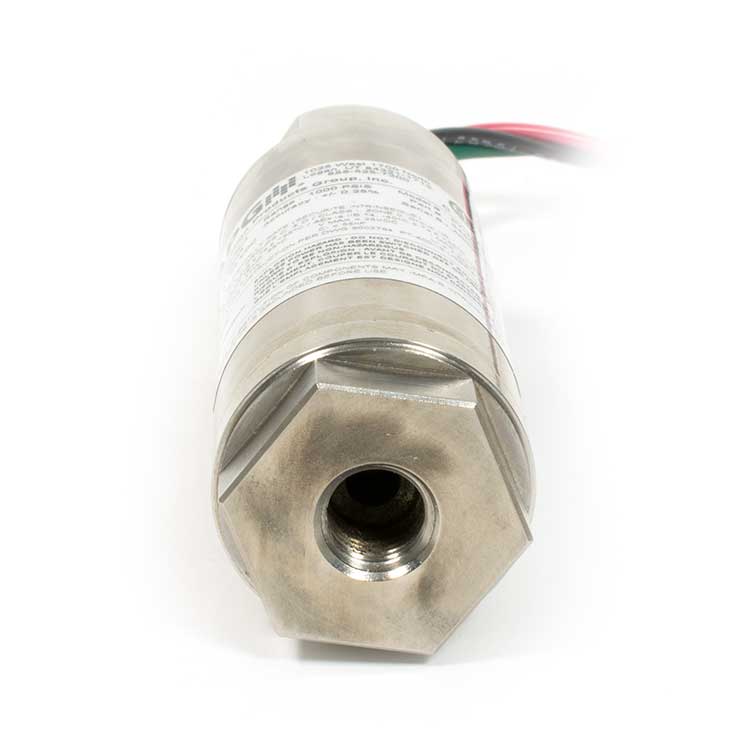

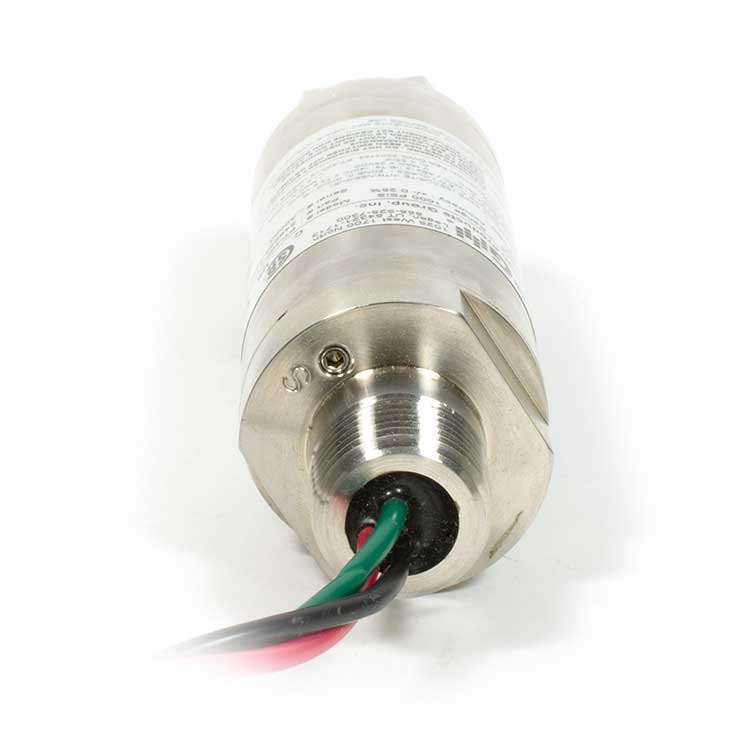

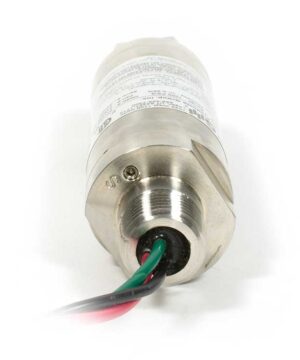

Explosion Proof, Heavy Duty Pressure Transducer

PT-405

DESCRIPTION
Features

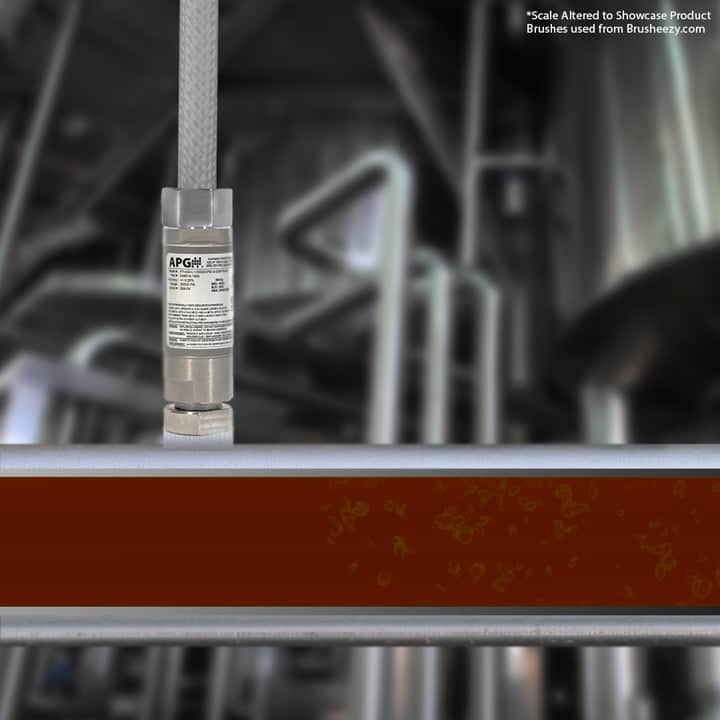

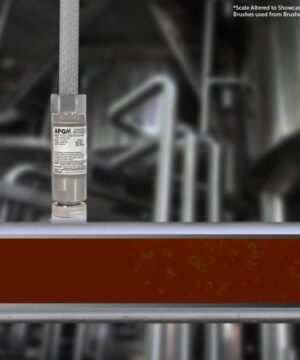

Made For Harsh Conditions & Hazardous Locations

The PT-405 Explosion Proof, Heavy Duty Pressure Transducer is designed for demanding applications in hazardous locations. Certified with Class I, Div 1 Explosion Proof certification from CSA, the PT-405 excels in high-pressure, high-vibration, and harsh environments. Its durable construction ensures reliability under extreme conditions, including temperature fluctuations and pressure spikes. Equipped with Modbus RTU output, the PT-405 can be monitored or controlled online through Settler and Explorer, offering enhanced connectivity and versatility.

Explosion-Proof Safety: CSA Explosion Proof Certified (Class I, Div 1)
Durable Construction: Built to withstand harsh environments
Precise Measurement: Accurate and stable performance
Seamless Monitoring: Modbus RTU for easy online monitoring

Description
Additional information

PT-405 Datasheet

Modbus Software Download

PT-405 User Manual

PT-405 CSA Certificaiton

PT-405 Modubus Manual

PT-405 Install Guide

Performance

Accuracy (linearity & hysteresis): ±0.25% of full scale (BFSL)
Standard Pressure Ranges: 0 – 30,000 psi
Stability – One Year Zero Drift: 17-4 / 316L: <±0.5% FS
Overpressure: 1.5x full scale
Burst Pressure: up to 3x full scale or limit of process connection
Frequency Response: Less than 5ms

Environmental

Standard Compensated Temp.:
- ≤ 10 psi: 0º – 60ºC / 32º – 140ºF
- 10 < x ≤ 1000 psi: -10º – 70ºC / 14º – 158ºF
- > 1000 psi: -17º – 54ºC / 0º – 130ºF
Storage Temp: -40º – 82ºC / -40º – 180ºF
Operating Temp: -40º – 85ºC / -40º – 185ºF

Electrical

Supply Voltage:
- 4-20 mA, 0-5 / 0.5-4.5 / 1-5 VDC: 9-28 VDC
- 0-10 VDC: 12.5-28 VDC
- Modbus/RTU (RS-485): 9-28 VDC

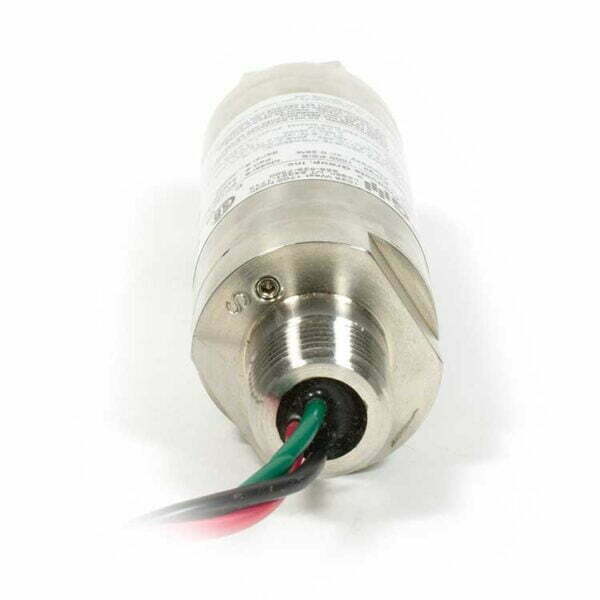

Electrical Connection: Pigtail with flying leads (4-foot minimum length)
Electrical Protection: Protected against reverse polarity, surge per IEC 61000-4-5

Connectivity

Output:
- 4-20 mA (2 wire, loop-powered)
- 0-5, 0.5-4.5, 1-5, 0-10 VDC (non-isolated 3 wire)
- Modbus/RTU (RS-485) with temp. output

Physical

Weight: 0.9 – 1.5 lbs. (408 – 680 g) typical
Wetted Materials:
- 16L Stainless Steel ( ≤ 1,000 psi)
- 17-4 Stainless Steel ( > 1,000 psi)
- Incoloy ( > 10,000 psi)
Incoloy conforms to NACE MR-01-75 and ISO 1516-3

Certifications

CSA/cCSAus Contract #237484
- Ambient: -40º to 85º C / -40º to 185ºF
- Max. Working Pressure: 30,000 psi
- Single Seal
- 4-20mA, 0-5/0.5-4.5/1-5 VDC, 0-10 VDC, RS-485/Modbus
  - Explosion Proof: Class I, Div. 1, Groups C & D

Settler

Remote Monitoring Gateway
Part #: 125422

VIEW PRODUCT PAGE

Modbus Scout

Modbus Configuration Device
Part #: 125424-0001

VIEW PRODUCT PAGE

MND

Modbus Network Display
Part #: Varies

VIEW PRODUCT PAGE

LPD

Current Loop Display
Part #: Varies

VIEW PRODUCT PAGE

What makes the PT-405 Explosion Proof Pressure Transducer suitable for hazardous environments?

The PT-405 is CSA certified with Class I, Div 1 Explosion Proof certification, ensuring safe operation in hazardous locations. Its heavy-duty construction is built to withstand extreme conditions like high pressure, high vibration, and harsh temperatures.

Can I use the PT-405 for high-pressure applications?

Yes, the PT-405 is designed to handle pressures up to 30,000 psi, making it ideal for high-pressure applications in industries such as oil and gas, water treatment, and manufacturing.

What types of industries or applications is the PT-405 suitable for?

The PT-405 is ideal for industries such as:

Oil and gas (e.g., pumper trucks, oilfield truck pressures, gas compressors)
Water treatment and hydraulic lines
Die casting, steel mills
Irrigation systems, compression skids

Is there a need for regular calibration of the PT-405?

Yes, regular factory recalibration is recommended to maintain the long-term reliability and accuracy of the PT-405. We offer NIST-certified calibration services, ensuring precision for your critical applications.

What is the protection rating of the PT-405?

The PT-405 has an IP65 protection rating, ensuring it is dust-tight and protected against water jets, making it reliable in demanding environments.

OUTPUT	4-20 mA, Modbus, Voltage
INDUSTRY	Chemical, Industrial Automation, Oil & Gas, Water & Wastewater
PRESSURE	0-30,000 psi
CERTIFICATION	CSA – General, Explosion Proof

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.
