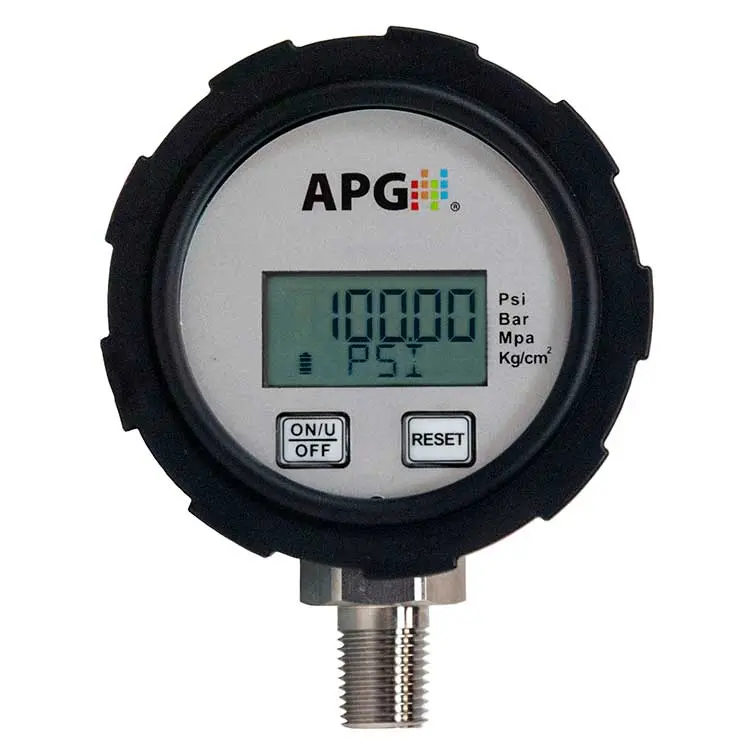

IP65 Digital Pressure Gauges

PG2

DESCRIPTION
Features

Long Lasting Performance at a Low Cost

The PG2 IP65 Digital Pressure Gauge is designed for accurate pressure measurement of gases and liquids at an affordable price. With its rugged, weatherproof case and 304L stainless steel wetted materials, this base-line digital gauge is ideal for outdoor and industrial applications. The IP65 rating ensures reliable performance in harsh environments. It offers user-friendly features like auto-off, re-zeroing, and selectable units of measure. The large, backlit LCD display ensures easy reading, making the PG2 simple to set up and operate. Available in various PSI ranges, it is perfect for a wide range of industrial uses.

Enhanced Readability: Large, full 4-digit display
Versatile Pressure Ranges: Available ranges from vacuum up to 5,000 psi
High Precision Accuracy: ±0.5% accuracy of full scale up to 1,000 psi, ±1% accuracy of full scale above 1,000 psi
Variety of Measurement Units: User selectable units of measure (psi, bar, MPa, kg/cm2)

Description
Additional information

PG2 Datasheet

PG2 User Manual

PG2 Install Guide

Performance

Accuracy (linearity & hysteresis):
- ±0.5% of full scale (BFSL) up to 1,000 psi
- ±1% of full scale above 1,000 psi
Stability: ±0.05% FS per year
Thermal Zero Shift: ±0.04% FS/ ºC (±0.07% FS/ ºF)
Thermal Span Shift: ±0.04% FS/ ºC (±0.07% FS/ ºF)

Environmental

Compensated/Operating Temp: -10º – 60ºC (14º – 140ºF)
Enclosure Rating: IP65

Electrical

Battery:
- (1) 3V CR123A Lithium Battery
- Optional Auto-off: 10 minutes
- Low battery alert
- 2-3 years typical battery life

Physical

Size: 3.145” x 1.657” (94.48 x 42.10 mm)
- Connection: 0.575” (14.61 mm)
Weight: 0.34 lb (150 grams)
Body: Fiberglass-reinforced PP plastic
Wetted Materials: 304L SS
Display: 4 digit LCD

What is the PG2 IP65 Digital Pressure Gauge used for?

The PG2 is designed for accurate pressure measurement of gases and liquids in industrial and outdoor environments. Its rugged, weatherproof construction makes it ideal for a variety of applications, including manufacturing, HVAC, and process control.

What pressure ranges are available for the PG2?

The PG2 is available in various PSI ranges, with a maximum pressure range of up to 5,000 PSI.

What materials are used in the PG2’s construction?

The wetted materials are made of 304L stainless steel, ensuring durability and corrosion resistance. The housing is constructed from fiberglass-reinforced PP plastic for additional strength and weather resistance.

What type of display does the PG2 have?

It features a large, backlit LCD display for easy reading, even in low-light conditions.

What type of fitting does the PG2 use?

The PG2 comes with a standard 1/4″ NPTM fitting for easy installation.

ENCLOSURE PROTECTION	IP65
BATTERIES	1 3V Lithium (2-3 years)
PRESSURE	0-1,000 psi
INDUSTRY	Industrial Automation
