The next generation of radar level measurement from APG.

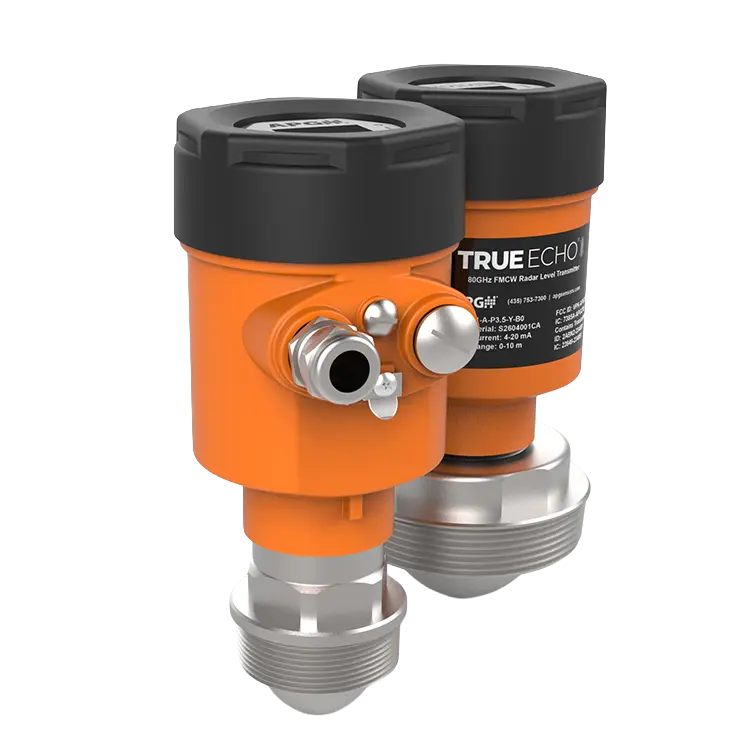

The CR-S radar level sensor combines long-range measurement, narrow beam performance, and intuitive configuration to deliver reliable level measurement across challenging liquid and bulk solid applications.
Radar Technology
Dielectric Rating
Beam Angle
Enclosure Rating
Make decisions with confidence. The CR-S delivers the precision, reliability, and flexibility needed to help operators better monitor inventory, optimize processes, and reduce uncertainty.
Up to 394 ft. of reliable measurement.
Monitor tall silos, deep tanks, and large storage vessels with confidence. Extended measuring range allows a single sensor to handle applications that would challenge traditional level technologies.

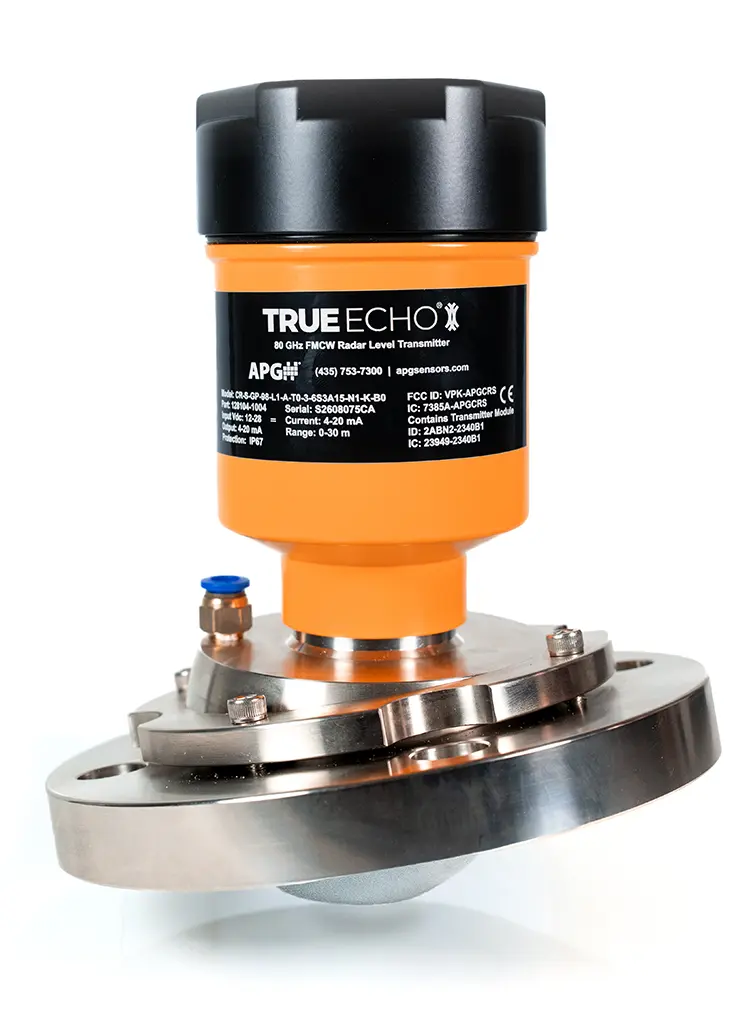

Swivel flange options available.
Help simplify mounting and alignment, making it easier to position the radar beam perpendicular to the measured media for optimal performance.
Integrated air purge features on select models
Keep lens clear of dust, buildup, and material accumulation without frequent manual cleaning to keep readings accurate.
Millimeter wave technology, 3º beam angle, and ±2 mm accuracy
A high signal-to-noise ratio helps ensure strong echoes and reliable measurements, and the smaller blind zone enables measurement closer to the sensor. The focused 3° beam angle and ±2 mm accuracy help deliver dependable level data, even in challenging installations.
RANGE
0.1—120 m (0.3—393.7 ft.)
ACCURACY
Up to ±2 mm
RESPONSE TIME
<6 seconds, based on parameter settings
BEAM ANGLE
3º or 8º
MEASURING FREQUENCY
W Band, 76 to 81 GHz, 5 GHz FMCW bandwidth
CERTIFICATIONS
FCC
ISED
CE
CSA approvals coming 2026
PROCESS TEMPERATURE
-40º to 392ºF (-40º to 200ºC)
AMBIENT WORKING TEMPERATURE
-40º to 158ºF (-40 to 70ºC)
PROCESS PRESSURE
-0.1 to 2 MPa (-14.5 to 290 psi)
DIELECTRIC CONSTANT OF MEASURED MEDIUM
≥ 1.5
PROTECTION RATING
IP68
OPERATING VOLTAGE
12–28 VDC
CABLE ENTRY
1/2″ NPT Cable Gland
KEYPAD
LCD (128 x 64 dot matrix)
APP
Smartphone with TRUE ECHO Radar App
OUTPUT
4-20 mA (2 wire), RS-485 Modbus RTU (4 wire)
HOUSING
Aluminum Alloy
LENS MATERIAL
PTFE

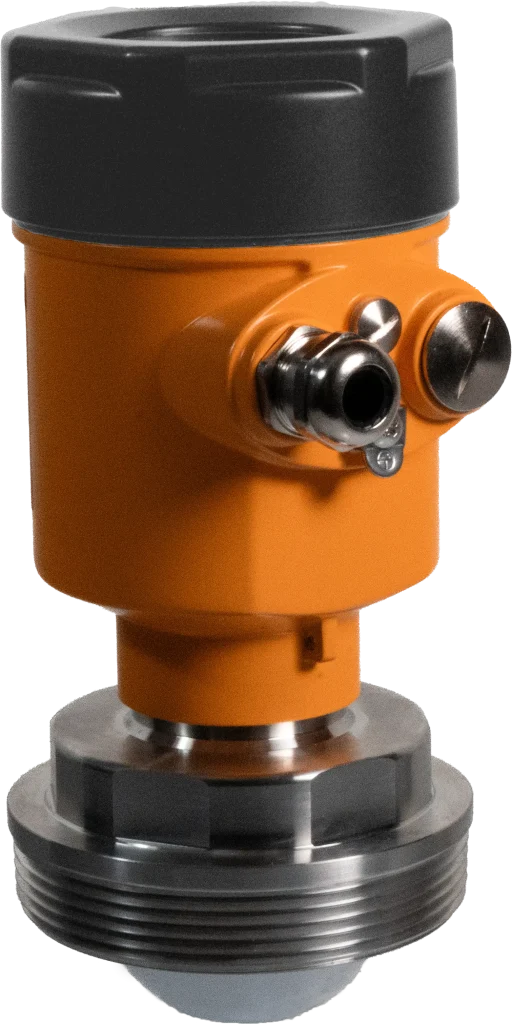

PROCESS FITTING
NPT Mount, Stainless Steel
NPT Mount, PTFE
Flange Mount, Stainless Steel
Flange Mount, Stainless Steel with PTFE Liner
Flange Mount, Stainless Steel, Swivel with Purge Port
Our product experts are committed to providing exceptional product support to ensure that your experience is top-tier.
The CR-S is designed to deliver reliable measurement with features that make setup, alignment, and operation easier from day one.
Spend less time configuring sensors and more time solving problems.
From liquids to bulk solids, CR-S adapts to different measurement challenges.
Durable materials and non-contact measurement help protect against demanding conditions.
Get application support from a team that understands level measurement, not just sensor specifications.
