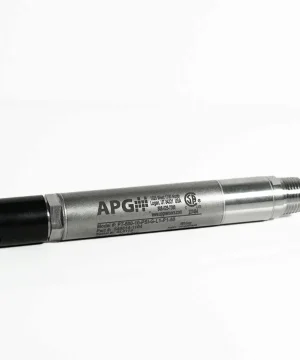

PT-500 Submersible Pressure Transducer

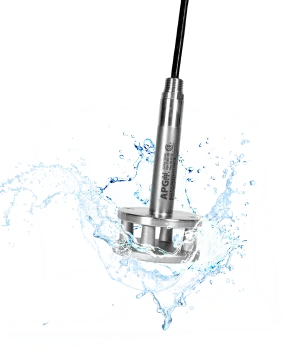

PT-500 Splash
PT-500-30 Animation
PT-500
PT-500 Submerged
PT-500-14
PT-500 Submersible Pressure Transducer
PT-500 Splash
PT-500-30 Animation

Submersible Pressure Transducer

PT-500

Quality and reliability you can trust

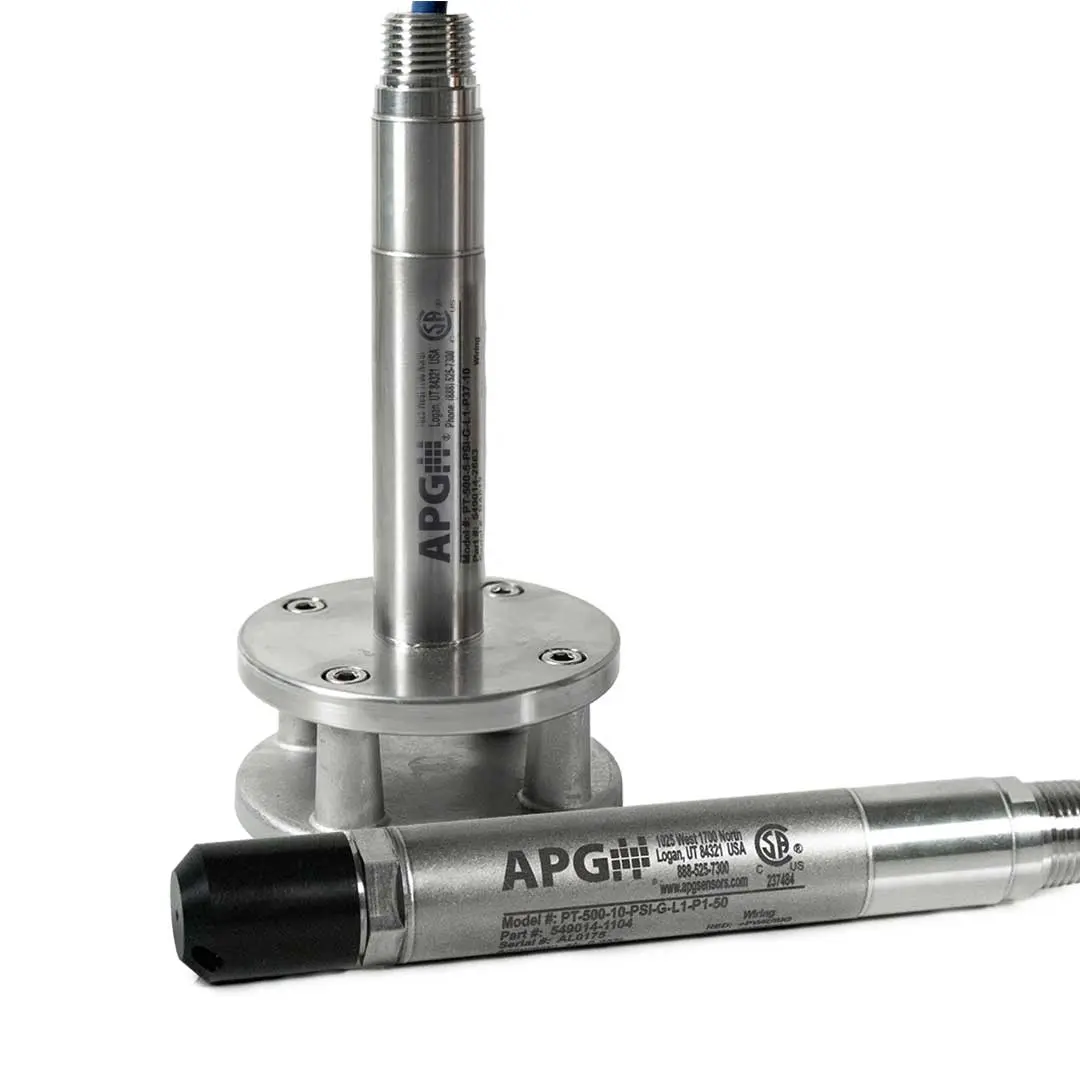

The PT-500 Submersible Pressure Transmitter line offers unparalleled reliability and accuracy in industrial applications. Built with lightning transience protection, Class 1, Div. 1 certification, and field-adjustable zero, this pressure transducer is designed to provide precise measurements in harsh environments. Featuring a durable 316L SS sensor, vented urethane cable, a compact Delrin nose cone, and an optional cage makes the PT-500 is ideal for use in clean or dirty liquids with depths up to 575 ft (250 psi). It includes conduit mounting threads, a built-in vent tube filter cap, and an optional NIST certificate for calibration accuracy to 0.1% full scale.

  • Enhanced Safety: Lightning transience protection for added safety
  • Easy Installation: Field-adjustable zero for flexible installation
  • Maximum Safety: Single seal for maximum safety
  • Long-Lasting Durability: Durable construction with 316L SS sensor and PVC cable
  • Submersible Design: Submersible up to 575 ft (250 psi) depth
  • Versatile Connectivity: Available outputs: 4-20mA, RS-485 Modbus, 0-5 VDC, mV/V
  • Seamless Integration: Settler and Explorer compatibility (for Modbus version)
  • Certified Protection: CSA Intrinsically Safe certification
  • Precise Measurements: Optional NIST re-calibration and accuracy certificates

CSA Certified

CUSTOMIZE YOUR SOLUTION

Indicates required field

Skip Configuration
SKUTITLE
Product Title
CONFIGURED MODEL NUMBER:
Select an option to begin configuring.
Other units available. Please consult with our sales team.
Other ranges available. All options available to downrange by 25%. Please consult with our sales team for further options.
Other ranges available. All options available to downrange by 25%. Please consult with our sales team for further options.
Other ranges available. All options available to downrange by 25%. Please consult with our sales team for further options.
Other ranges available. All options available to downrange by 25%. Please consult with our sales team for further options.
Other ranges available. All options available to downrange by 25%. Please consult with our sales team for further options.
Other ranges available. All options available to downrange by 25%. Please consult with our sales team for further options.
Other ranges available. All options available to downrange by 25%. Please consult with our sales team for further options.
Other ranges available. All options available to downrange by 25%. Please consult with our sales team for further options.
Other ranges available. All options available to downrange by 25%. Please consult with our sales team for further options.
Number represents cable length, in 1-ft increments. (Min. 0 Max. 3000)
Product total
Options total
Grand total
ⓘ
PDF Download Icon

PT-500
Install Guide
Software Download Icon

Modbus
Software Download
  • Pressure Ranges: 0 to 250 PSI
  • Outputs:
    • 4–20mA
    • 0/1–5VDC
    • 0/1–10VDC
    • mV/V
    • Modbus RTU
  • Over Pressure: 2X FSO
  • Burst Pressure: 3X FSO
  • 1 Year Stability: 0.75% FSO
  •  Linearity, Hysteresis & Repeatability:
    • ±0.25% of Full Scale (BFSL) up to ±0.1% of Full Scale
    • ±1.0% for ≤ 1 psi
  • Thermal Zero Shift @ 70 °F:
    • ±0.045% FSO/°C (±0.025% FSO/°F)
  • Thermal Span Shift @ 70 °F:
    • ±0.045% FSO/°C (±0.025% FSO/°F)
  • Operating Temperature: -40° to 80°C / -40° to 176°F
  • Compensated Temperature:
    • ≤ 10 psi: 0º to 60ºC / 32º to 140ºF
    • > 10 psi: -10º to 70ºC / 14º to 158ºF
  • Maximum Submersible Depth: 575 ft / 175.25 m / 250 psi
  • Supply Voltage (at sensor):
    • 4-20 mA, 0/1 to 5 VDC: 9 to 28 VDC
    • 1 to 10 VDC: 14 to 28 VDC
    • mV/V: 10 VDC (calibrated to 10 VDC input)
    • Modbus RTU: 5 to 28 VDC
  • Output Signal @ 21°C / 70°F: 3-30 mA max
  • Electrical Protection: Protected against reverse polarity, surge per IEC 61000-4-5
  • Startup Time:
    • 4-20 mA, VDC, and mV/V outputs: 50 ms
    • Modbus output: 200 ms
  • Current Draw:
    • 4-20 mA: 3-30 mA
    • VDC outputs: 3 mA
    • Modbus RTU: 2 mA max
  • Wetted Materials: 316L Stainless Steel
  • Anti–snag Cage: 316L Stainless Steel
  • Cable: Urethane, PVC, or Hytrel
  •  Protective Nose Cone: Delrin
  • Seal: Viton ETP–s
  •  Cable Tensile Strength: Up to 200 pounds
  • US Patent No. 7,787,330

Acid Gas Scrubber

Acid Vent Tube

Part #: 201246

Inquire with sales to purchase

Settler Ethernet Rendering

Settler

Remote Monitoring Gateway
Part #: 125422

VIEW PRODUCT PAGE

MND Display

LPD

Current Loop Display
Part #: Varies

VIEW PRODUCT PAGE

MND Display

MND

Modbus Network Display

Part #: Varies

VIEW PRODUCT PAGE

Desiccant Packet

3.5×1 Bentonite
Part #: 200242

Inquire with sales to purchase

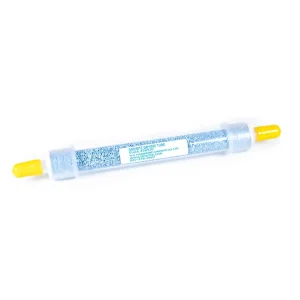

Desiccant Cartridge

Water Vapor Prevention

Part #: 122774-0028

Inquire with sales to purchase

What is the PT-500 Submersible Pressure Transmitter used for?

The PT-500 is designed for measuring pressure in clean liquid applications. It is ideal for industrial settings where accurate and reliable submersible pressure monitoring is required, including water tanks, wells, and other fluid measurement environments.

This transmitter features a 316L stainless steel (SS) sensor, a vented urethane cable, and a Delrin nose cone, ensuring durability and long-term performance in harsh environments.

Yes, it includes built-in lightning transience protection, which helps prevent damage from electrical surges in industrial applications.

Yes, our PT-500 uniquely features a field-adjustable zero, allowing users to calibrate it for more precise measurements in their specific installation.

The PT-500 includes conduit mounting threads for easy installation, and it also comes with a built-in vent tube filter cap to prevent contamination.

We recommend recalibration to be performed at least once a year to ensure accurate measurements—although some applications may require more frequent calibration. APG offers in-house NIST calibration services, with experienced technicians and quick turnaround times to help keep your operations on track.

You can start the recalibration process by submitting our RMA form, and set custom recalibration reminders through our Recalibration Reminder form.

OUTPUT

4-20 mA, mV/V, Voltage
CERTIFICATION

CSA – General, Intrinsically Safe
LIGHTNING PROTECTION

Yes
PRESSURE

0-250 psi
INDUSTRY

Chemical, Industrial Automation, Oil & Gas, Water & Wastewater
RANGE

Up to 575'
MATERIAL

316L SS

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.

RETURNS

Returns and allowances must be authorized by APG in advance, which authorization may be granted or withheld by APG in APG’s sole and absolute discretion. Read our full return policy HERE.
