Portable RS485 Modbus Communicator

Modbus Scout

DESCRIPTION
Features

Portable RS485 Modbus Communicator

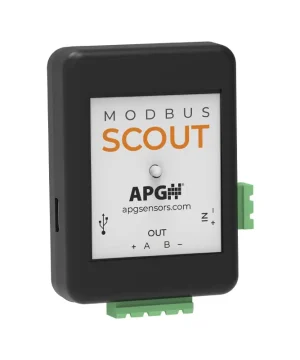

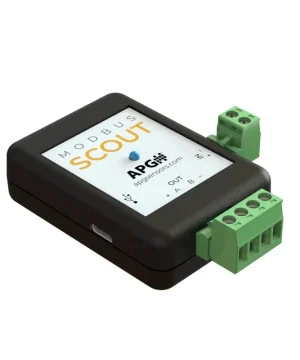

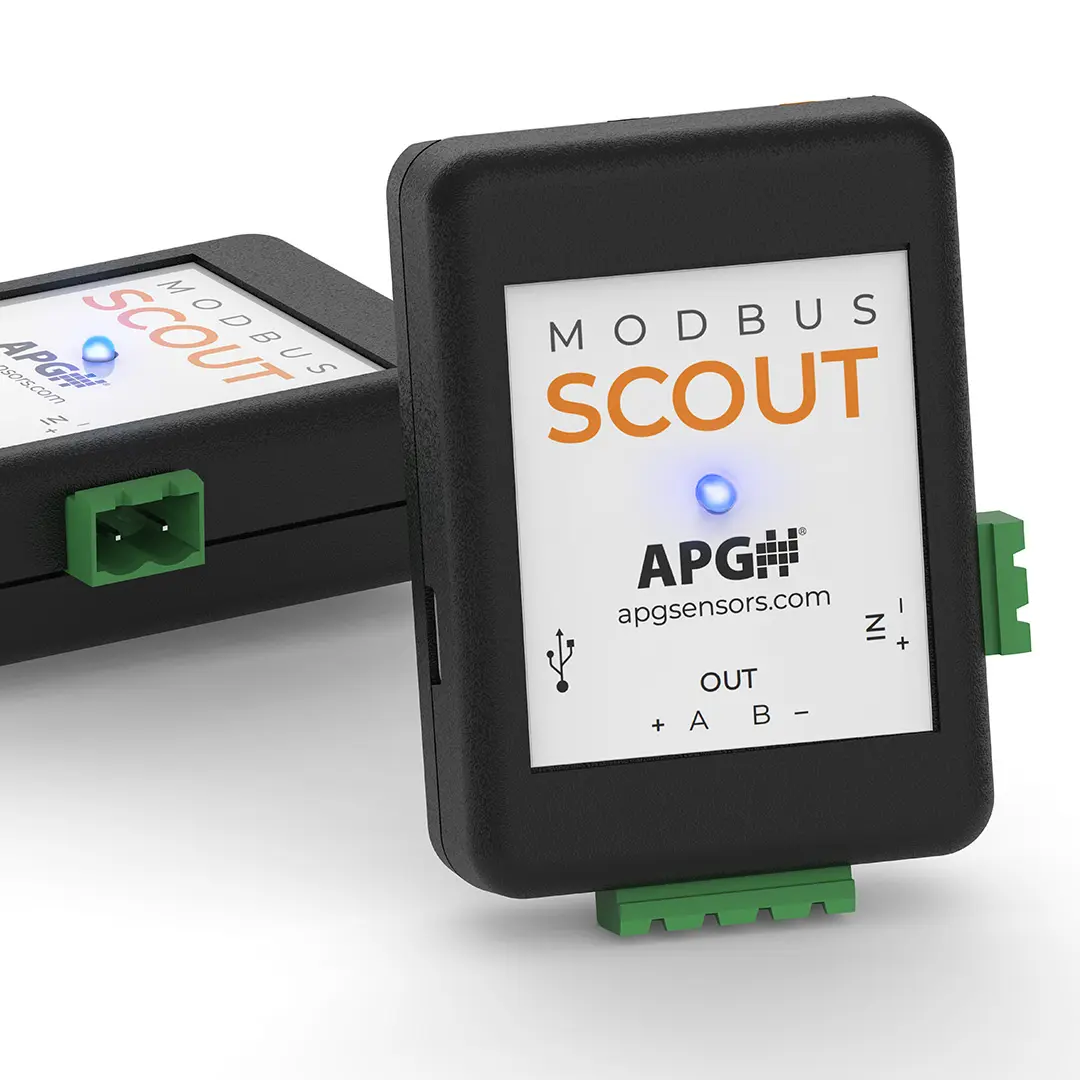

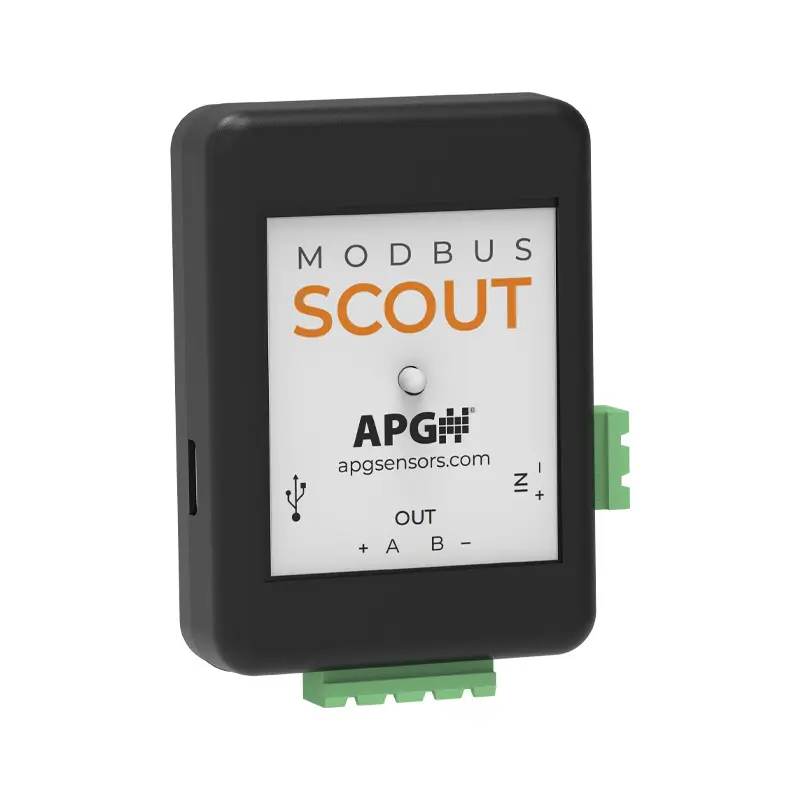

Modbus Scout is a portable RS485 Modbus communication device. The simple design allows users to connect to their Modbus sensor in the field via an easy-to-use app or a convenient USB port. Additionally, Modbus Scout can broadcast simple readings to the app, so users can quickly check the status of several devices within range at once.

Effortless Modbus Communication

Streamline field diagnostics with Modbus Scout, the portable and user-friendly RS485 Modbus communication tool. Designed for quick and easy sensor connectivity, Modbus Scout allows users to interface with their Modbus devices via a Bluetooth-compatible device or USB. With the APG Scout Communicator app, configuration is simple—whether in the field or at a workstation. The broadcast mode provides instant readings from multiple sensors within range, ensuring seamless monitoring at a glance. Compact and convenient, Modbus Scout is the ultimate solution for on-the-go Modbus communication.

Seamless Device Connectivity

With cross-platform compatibility, Modbus Scout connects effortlessly to Windows, Android, Mac, and iOS devices, making sensor configuration and data retrieval more accessible than ever. Whether you’re in the field or at your workstation, the APG Scout Communicator app provides an intuitive interface for quick setup, real-time monitoring, and troubleshooting.

Effortless Sensor Configuration: Configure Modbus sensors via APG Scout Communicator app
Wireless & Wired Connectivity: Bluetooth connectivity and USB communication options
Portable and Convenient: Portable size allows for convenient setup anywhere
Multi-Device Monitoring: Broadcast mode to check multiple device readings within range
Cross-Platform Compatibility: Connect to the APP on Windows, Android, Mac, and IOS devices

Description
Additional information

Modbus Scout
Datasheet

Modbus Scout
User Manual

Modbus Scout
Install Guide

Modbus Scout
App Download

Environmental

Operating Temperature: 0 to 140° F (-18 to 60° C)

Electrical

Power In:
- 2-Pin Connector 8 to 30 VDC, 3 Amp max
- USB C
Power Out: (to 4-Pin Modbus Connector)
- 2-Pin Connector: Output ≈ Input*
- USB C: 24 VDC (internal limit 70 mA)

*Warning: Due to internal circuitry, the output voltage will be slightly
less than the input voltage when using the 2-Pin External Power.

Connectivity

Interfaces:
- Bluetooth connectivity via APG Scout Communicator app
- USB connectivity via APG Scout Communicator app
- USB connectivity via virtual COM port
LED Indicator: Bluetooth connection status
Broadcast Range: Approximately 33 ft (10 m)

Physical

Material: ABS
Weight: 1.5 oz (45 g)
External Dimensions:
- 3.30 x 2.56 x 0.95
- 83.82 x 65.02 x 24.13 mm

What is Modbus Scout?

Modbus Scout is a portable RS485 Modbus communication tool designed for easy sensor connectivity. It allows users to configure, monitor, and troubleshoot Modbus devices via Bluetooth or USB using the APG Scout Communicator app.

How does Modbus Scout connect to my devices?

Modbus Scout offers two connectivity options:

Bluetooth for wireless communication with the APG Scout Communicator app
USB for direct, wired connection to a computer or compatible device

Can Modbus Scout read data from multiple devices at once?

Yes! Broadcast mode allows Modbus Scout to read and display real-time data from multiple sensors within range, providing quick insights at a glance.

What platforms are supported by the APG Scout Communicator app?

The APG Scout Communicator app is available for Windows, Android, Mac, and iOS, making it easy to configure and monitor Modbus devices from a variety of devices.

What is the range of Bluetooth connectivity?

The Bluetooth range depends on environmental conditions but typically extends up to 33 feet (10 meters) in an open, interference-free space.

OUTPUT	Modbus
INDUSTRY	Industrial Automation, Marine, Oil & Gas, Water & Wastewater
INPUT	Voltage
DISTANCE	Up to 32 ft.
