Pressure Transmitters

Industrial Pressure Transmitters with Amplified Output

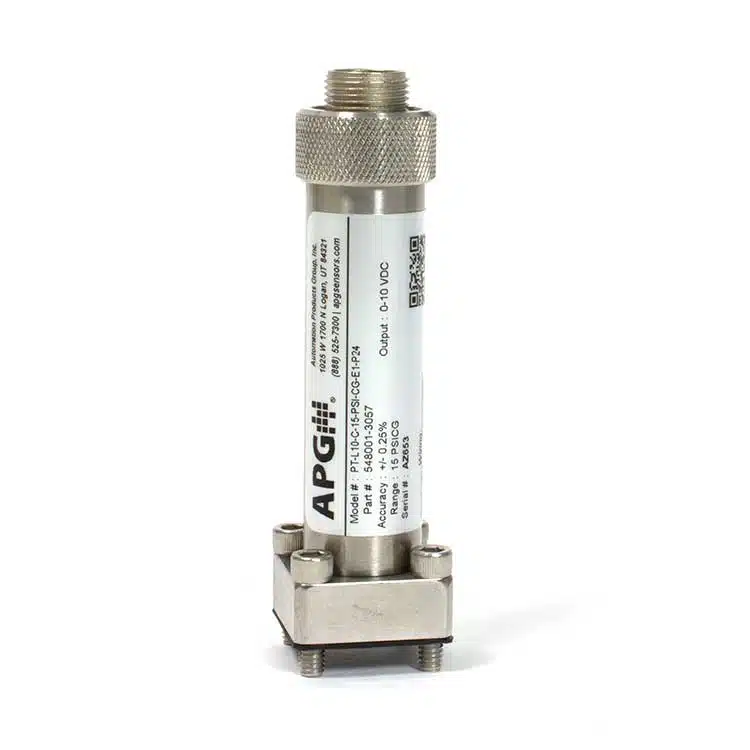

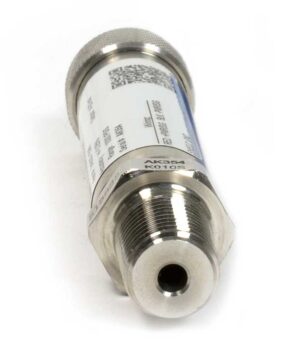

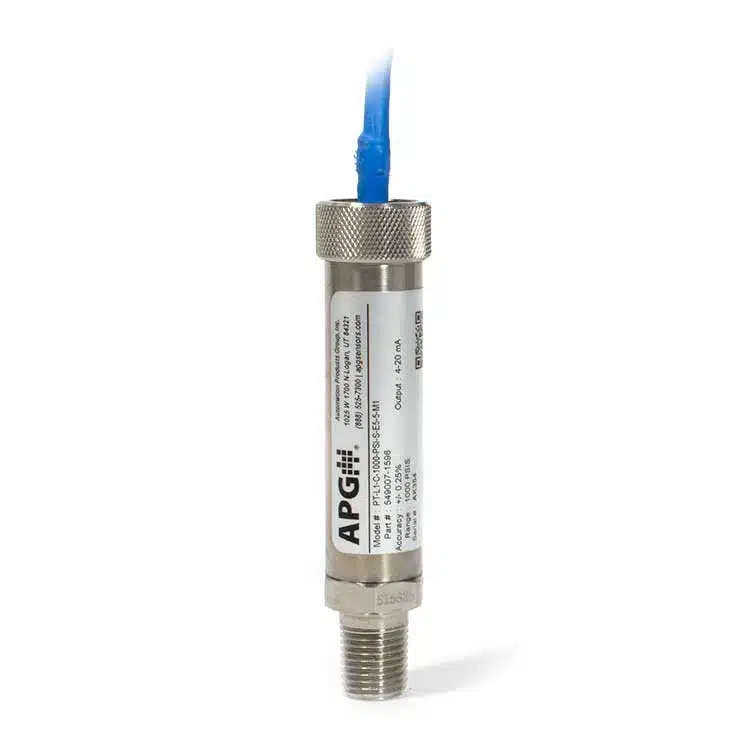

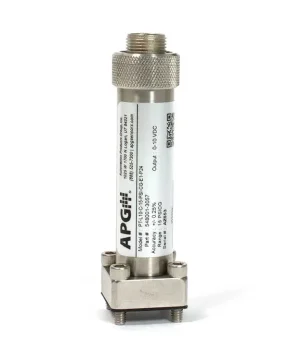

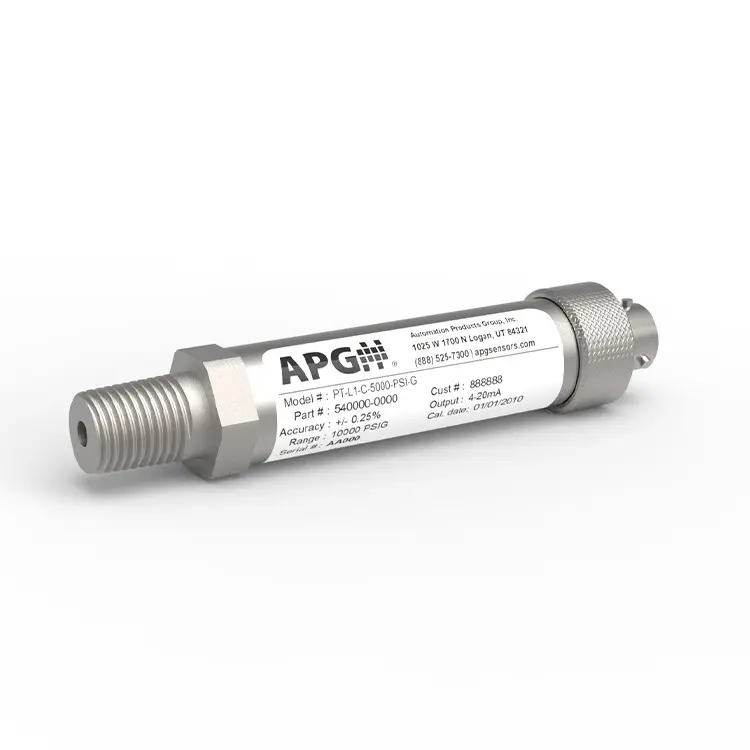

PT-L1/L3/L10

Amplified Output for General Use

The PT-L1/L3/L10 series industrial pressure transducers with amplified output provide precise, cost-effective pressure measurement for a wide range of applications, including OEM systems. Built with durable 316L, 15-5, or 17-4 stainless steel, these sensors are designed for long-lasting performance, offering high chemical compatibility and rugged construction. The compact design ensures easy integration into systems with limited space. Available in multiple output options—4-20mA, 0-5 VDC, and 0-10 VDC—these pressure transmitters deliver accurate, reliable readings across a pressure range of 0 to 10,000 psi. Optional NIST calibration services ensure top-tier accuracy (up to ±0.1% in select ranges).

  • Cost-Effective & Versatile: Inexpensive, reliable, and versatile for OEM applications
  • Durable Construction: Available in 316L, 15-5, or 17-4 SS for rugged performance
  • Space-Saving Design: Compact design for easy integration
  • Flexible Output Options: 4-20mA, 0-5 VDC, 0-10 VDC for seamless compatibility
  • Precise Measurement: Wide pressure range (0 to 10,000 psi) with high accuracy
  • Certified Precision: Optional NIST calibration certificates (0.25% or 0.1% accuracy)
  • Temperature Compensation: Temperature compensation from -40 to 180°F (-40 to 82°C)
  • Reliable Over Time: Factory re-calibration for long-term reliability

ⓘ

PT-L1/L3/L10
Datasheet

PT-L1/L3/L10
User Manual

PT-L1/L3/L10
Install Guide
  • Accuracy:
    • B.F.S.L. ≤ 0.25% of full scale
    • NIST up to ±0.1% available on select ranges
  • Temp Compensation Range: 0º – 130ºF (-17º – 54ºC)
  • Extended Temp Compensation Ranges: (Optional)
    • -40º – 180ºF (-40º – 82ºC)
    • 0º – 185ºF (-17º – 85ºC)
  • No Temperature Specification for ≤ 5 psi
  • Supply Voltage:
    • 4-20 mA: 10 – 36 VDC
    • 0-5 VDC: 9 – 33 VDC
    • 1-5 VDC: 9 – 33 VDC
    • 1-6 VDC: 9 – 33 VDC
    • 0-10 VDC: 14 – 33 VDC
  • Electrical Protection: Reverse polarity
  • Field Calibration: Zero and Span adjust
  • Output:
    • 4-20 mA
    • 0-5 VDC
    • 1-5 VDC
    • 1-6 VDC
    • 0-10 VDC
  • Internet Connectivity: RST-5003 (4-20 mA version only)
  • Material: 15-5, 17-4, or 316L SS
What are the key features of the PT-L1/L3/L10 industrial pressure transducers?

The PT-L1/L3/L10 series offers precise pressure measurement with amplified output, a wide pressure range (0 to 10,000 psi), and reliable performance. Features include rugged 316L, 15-5, or 17-4 stainless steel construction, multiple output options (4-20mA, 0-5 VDC, 0-10 VDC), and optional NIST calibration certificates for up to ±0.1% accuracy. The sensors are temperature-compensated from -40°F to 180°F (-40°C to 82°C) and designed for OEM and general use in compact systems.

The PT-L1/L3/L10 series pressure transducers are built with durable 316L, 15-5, or 17-4 stainless steel, ensuring long-lasting performance and high chemical compatibility in tough environments.

Yes, the PT-L1/L3/L10 series is designed specifically for OEM applications, providing a cost-effective and reliable solution for pressure measurement in a variety of systems.

These pressure transducers are ideal for various industries, including manufacturing, automotive, HVAC, energy, and any system requiring reliable and accurate pressure measurement. Their rugged construction and versatility make them suitable for both OEM and general industrial applications.

In addition to the optional NIST calibration service, the PT-L1/L3/L10 series also offers factory re-calibration services to maintain high accuracy and long-term reliability throughout the sensor’s lifespan.

OUTPUT

4-20 mA, Voltage
PRESSURE

0-10,000 psi
INDUSTRY

Chemical, Industrial Automation, Water & Wastewater

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.

RETURNS

Returns and allowances must be authorized by APG in advance, which authorization may be granted or withheld by APG in APG’s sole and absolute discretion. Read our full return policy HERE.
