The PT-200 series are rugged, general purpose sensors that offer reliable and accurate measurements under harsh conditions.

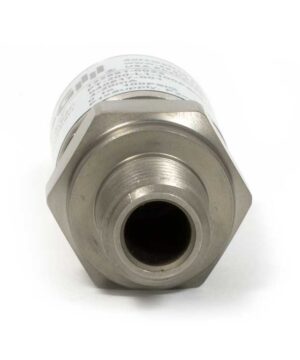

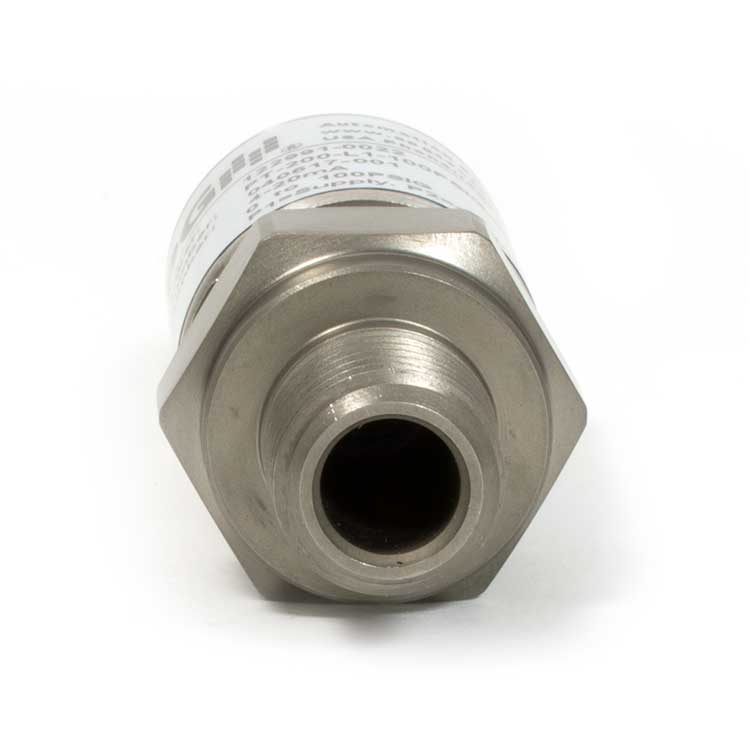

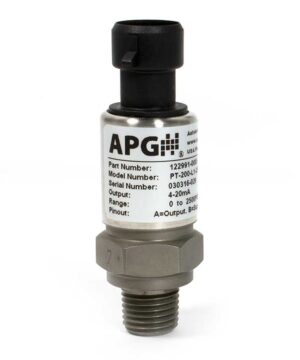

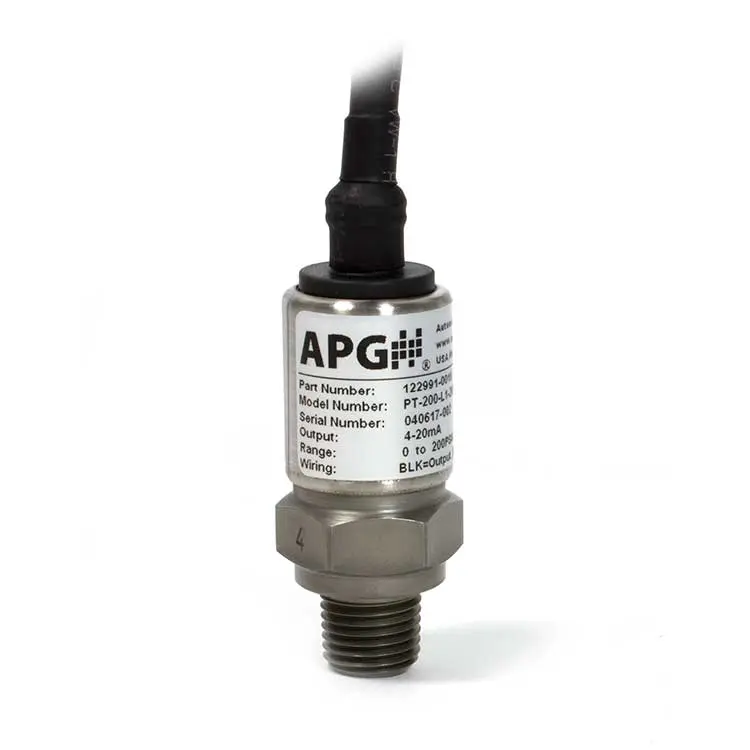

Series PT-200 0.5% Industrial Pressure Transmitters are rugged, general purpose sensors that offer reliable and accurate measurements under harsh conditions. The sensor fitting is machined from a solid piece of 17-4 SS to provide stable operation when subjected to shock and vibration. PT-200s also incorporate digital compensation and temperature correction for high accuracy and stability.
Low Cost
These pressure transmitters are inexpensive and great for a wide variety of uses, including OEM applications.
Rugged Build
With 17-4 SS bodies, these pressure sensors are built for endurance with high chemical compatibility and a solid construction.
Compact Design
Series PT-200 pressure transmitters are built with our most compact enclosure to fit your needs better.
All common model configurations can be purchased online, click the model number link below. Refer to Model Number Configurator on the datasheet for a full list of configuration options.
| Model Number | Model Description |
|---|---|
| PT-200-L1-100PSIG-E5-P0 | 0-100 PSI, gauge pressure reference, 4-20 mA output, 1/4" male NPT, 17-4PH SS, 2 ft. cable |
| PT-200-L1-250PSIG-E5-P0 | 0-250 PSI, gauge pressure reference, 4-20 mA output, 1/4" male NPT, 17-4PH SS, 2 ft. cable |
| PT-200-L1-500PSIG-E5-P0 | 0-500 PSI, gauge pressure reference, 4-20 mA output, 1/4" male NPT, 17-4PH SS, 2 ft. cable |
| PT-200-L1-1000PSIG-E5-P0 | 0-1,000 PSI, gauge pressure reference, 4-20 mA output, 1/4" male NPT, 17-4PH SS, 2 ft. cable |
| PT-200-L1-2500PSIG-E5-P0 | 0-2,500 PSI, gauge pressure reference, 4-20 mA output, 1/4" male NPT, 17-4PH SS, 2 ft. cable |
| PT-200-L1-5000PSIG-E5-P0 | 0-5,000 PSI, gauge pressure reference, 4-20 mA output, 1/4" male NPT, 17- 4PH SS, 2 ft. cable |
| PT-200-L1-10000PSIG-E5-P0 | 0-10,000 PSI, gauge pressure reference, 4-20 mA output, 1/4" male NPT, 17-4PH SS, 2 ft. cable |
| PT-200-L1-100PSIG-E51-P0 | 0-100 PSI, gauge pressure reference, 4-20 mA, 1/4" male NPT, 17-4PH SS, Packard connector |
| PT-200-L1-250PSIG-E51-P0 | 0-250 PSI, gauge pressure reference, 4-20 mA, 1/4" male NPT, 17-4PH SS, Packard connector |
| PT-200-L1-500PSIG-E51-P0 | 0-500 PSI, gauge pressure reference, 4-20 mA, 1/4" male NPT, 17-4PH SS, Packard connector |
| PT-200-L1-1000PSIG-E51-P0 | 0-1,000 PSI, gauge pressure reference, 4-20 mA, 1/4" male NPT, 17-4PH SS, Packard connector |
| PT-200-L1-2500PSIG-E51-P0 | 0-2,500 PSI, gauge pressure reference, 4-20 mA, 1/4" male NPT, 17-4PH SS, Packard connector |
| PT-200-L1-5000PSIG-E51-P0 | 0-5,000 PSI, gauge pressure reference, 4-20 mA, 1/4" male NPT, 17-4PH SS, Packard connector |
| PT-200-L1-10KPSIG-E51-P0 | 0-10,000 PSI, gauge pressure reference, 4-20 mA, 1/4" male NPT, 17-4PH SS, Packard connector |
Pressure Range
0 to 10,000 psi
Accuracy
B.F.S.L. ≤ 0.5% of full scale
Stability - Thermal Shift
Zero: ± 0.01% FSO/°C (± 0.02% FSO/°F)
Span: ± 0.02% FSO/°C (± 0.04% FSO/°F)
Stability - Long Term
± 0.5% FSO/year
Supply Voltage
9-32 VDC
Current Draw
less than 30 mA
Output Impedance less than 100Ω
Electrical Connection

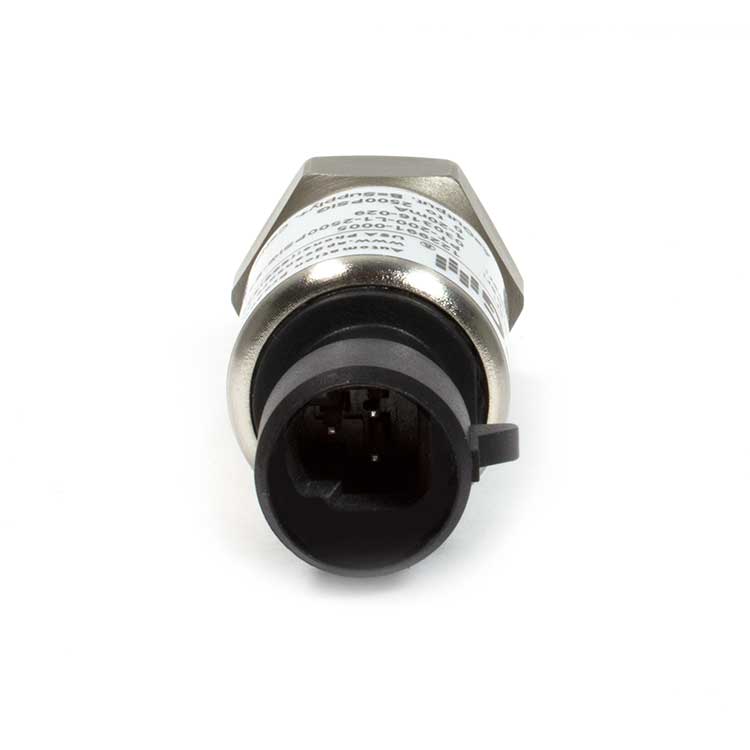

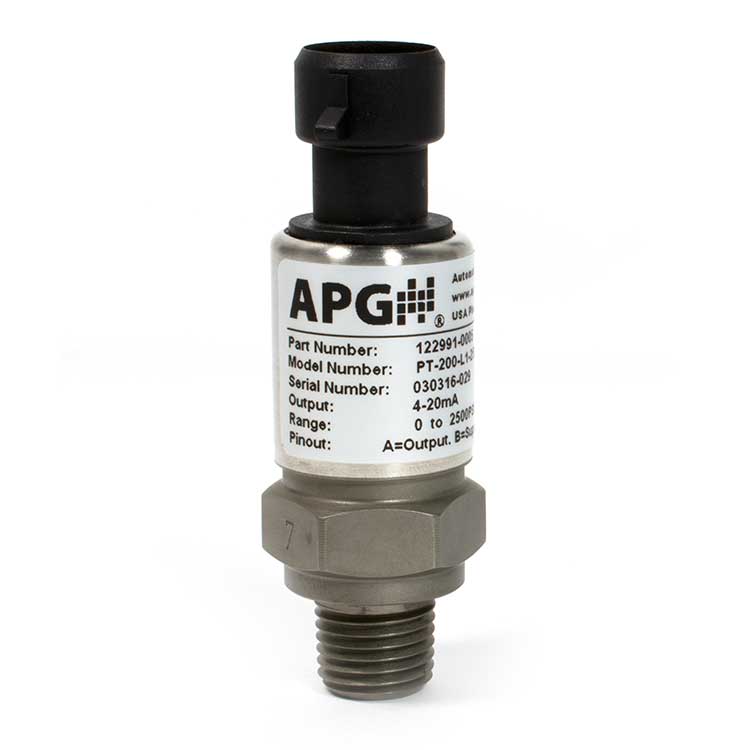

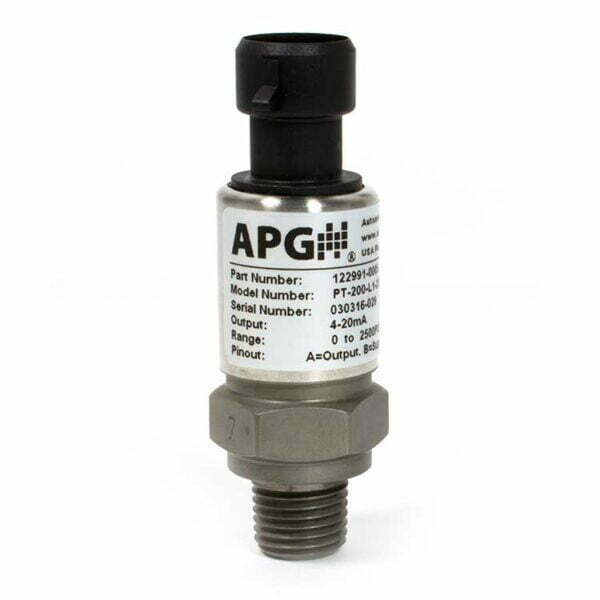

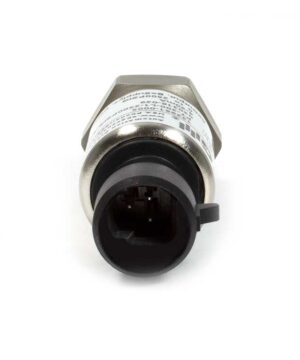

3-Pin Packard Connector

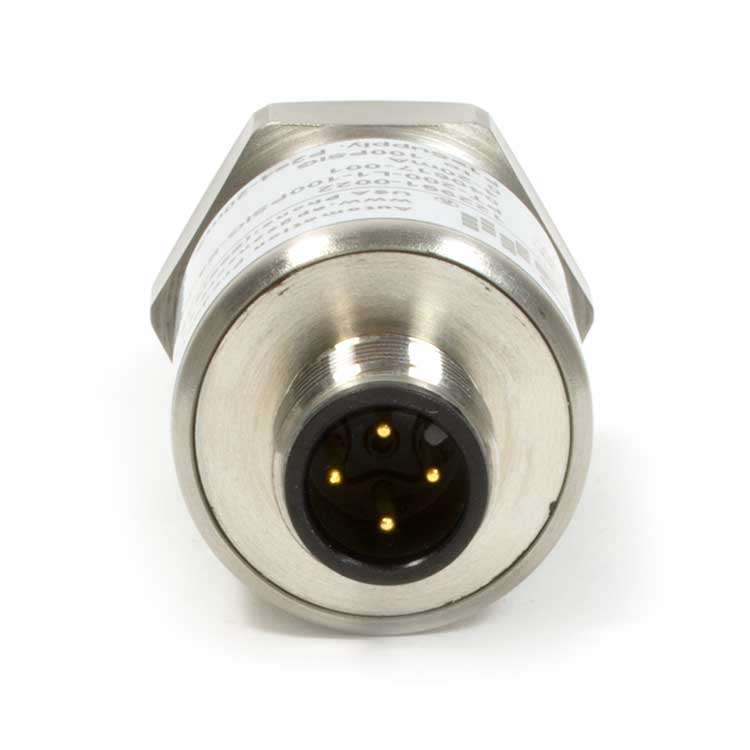

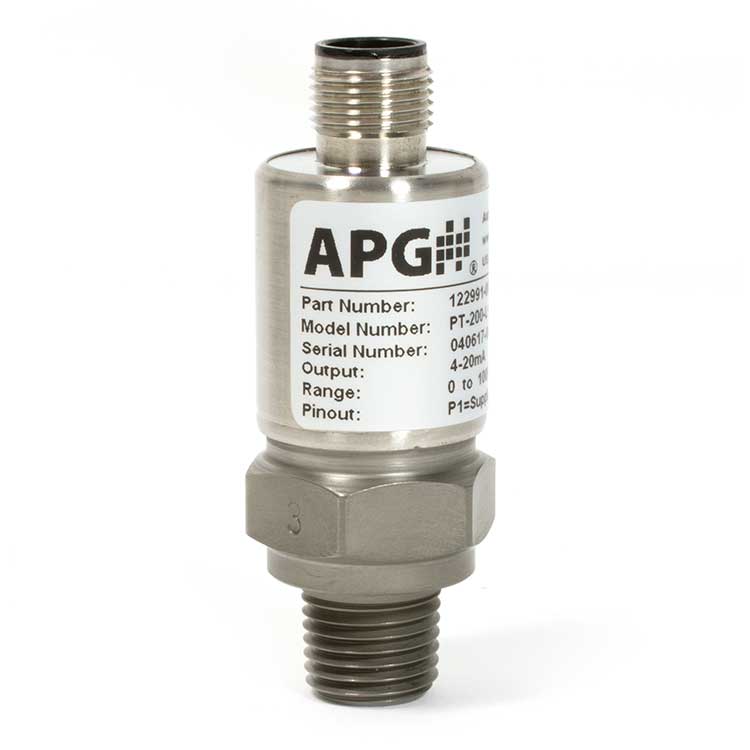

M12 Connector

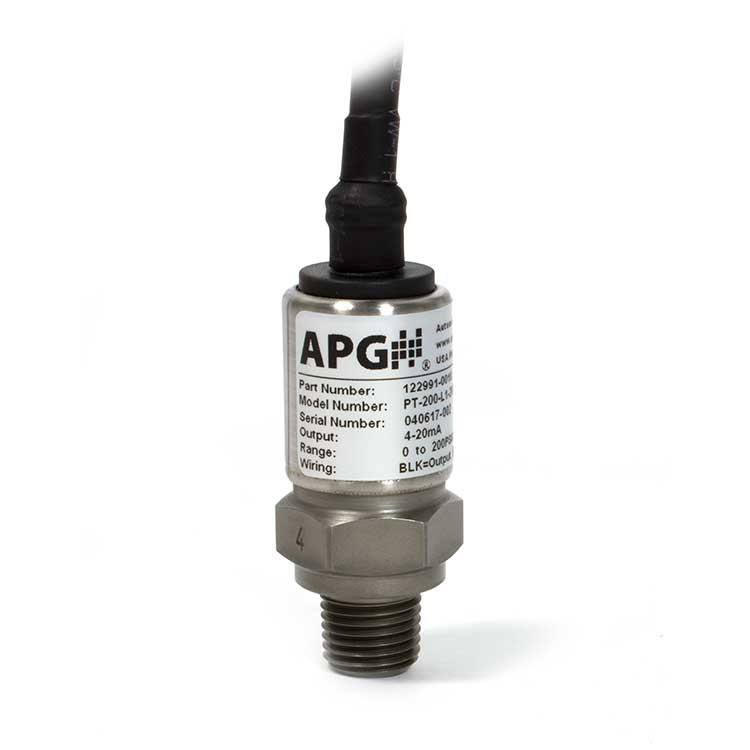

3-Wire Shielded Cable (60 cm / 1.97 ft.)
Operating Temperature
-10 to 100° C (14 to 212° F)
Compensated Temperature
0 to 85° C (32 to 185° F)
Storage Temperature
-20 to 125° C (-4 to 257° F)
Enclosure Rating
IP65
Output
4-20mA
