Large Digital Display Digital Panel Meter

Large Digital Panel Meter

DDL

DESCRIPTION
Features

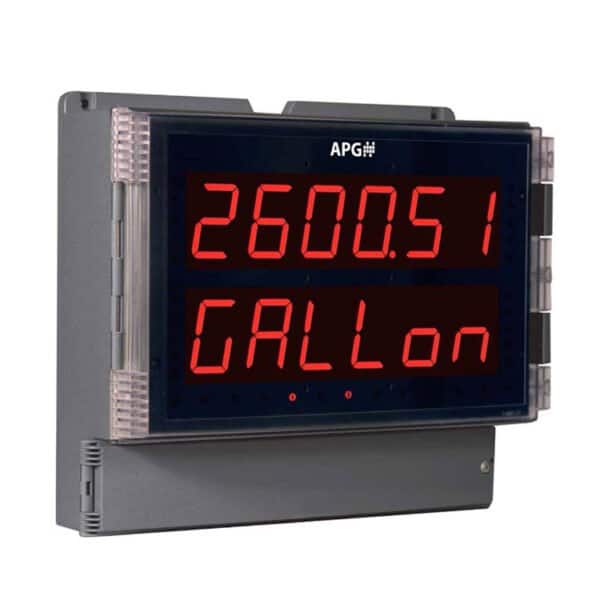

DDL Large Digital Panel Meter – High Visibility & Versatile Performance

The DDL Large Digital Panel Meter features a sunlight-readable display with 1.80″ characters and four LED alarm indicators for clear visibility from 100 feet even in bright sunlight. Designed for easy programming, it includes four push buttons and a USB port for MeterView Pro software integration.

Built for durability, the NEMA 4X, IP65-rated polycarbonate-glass front panel ensures long-lasting performance in harsh environments. This versatile digital meter supports multiple current and voltage inputs, five digital inputs, and controls up to four SPDT output relays with an isolated 4-20 mA output.

High Precision Inputs: 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Field Selectable Inputs with ±0.03% Accuracy
Reliable Power Supply: Isolated 24 VDC @ 200 mA Transmitter Power Supply
Advanced Control: 4 Relays with Interlocking Capability
Versatile Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
Expanded Connectivity: 5 Digital Inputs & 4 Digital Outputs Standard

Description
Additional information

DDL
Datasheet

DDL
User Manual

APG Digital Display
Modbus Register Guide

EU Declaration of
Conformity

Specifications

Please refer to the DDL Datasheet for specification details.

What is the visibility range of the DDL Large Digital Panel Meter?

The DDL Large Digital Panel Meter features a sunlight-readable display with 1.80” high characters, ensuring clear visibility from a distance, even in bright environments.

What kind of durability can I expect from this meter?

The DDL Large Digital Panel Meter is built for durability, featuring a NEMA 4X, IP65-rated polycarbonate-glass front face that ensures long-lasting performance in harsh industrial environments.

Can I configure the DDL Large Digital Panel Meter remotely?

Yes, the meter features a USB port for connecting to MeterView Pro software, allowing for remote configuration and management.

Are there different model options for the DDL Large Digital Panel Meter?

Yes, one common model, the DDL-A00, has an 85-265 VAC input power and a visual display without outputs.

How easy is it to program the DDL Large Digital Panel Meter?

Programming is straightforward with four intuitive push buttons and a USB port for MeterView Pro software, making setup and configuration quick and hassle-free.

OUTPUT	2 Relays, 4 Relays, 4-20 mA
MOUNT	Din Rail, Flange, Panel Mount, Pipe Mount, Surface Mount
INPUT	4-20 mA, Voltage
ENCLOSURE PROTECTION	IP65, NEMA 4X
INDUSTRY	Chemical, Food & Beverage, Industrial Automation, Marine, Oil & Gas, Water & Wastewater
CERTIFICATION	UL
