Intrinsically Safe, Chemically Resistant Magnetostrictive Float Level Transmitter

MPI-E Chemical

Anti-Corrosion Coating and Class I, Div 1 Ratings

The MPI-E Chemical is an Intrinsically Safe, Chemically Resistant Magnetostrictive Float Level Transmitter designed for small-scale liquid level measurement in highly corrosive environments. With an advanced anti-corrosion coating, it withstands sulfuric acid, boric acid, hydrochloric acid, and sodium hydroxide, making it ideal for water treatment, chemical processing, and marine applications.

This hazardous location-approved level transmitter features RS-485 Modbus RTU output, ensuring seamless integration with Modbus controllers. It also pairs with the MDI controller for a fully Intrinsically Safe level monitoring solution. With NEMA 4X/IP65 protection, CSA, ATEX, and IECEx approvals, and a maximum measurable length of 12 ft. 9 in., the MPI-E Chemical delivers high-accuracy, reliable level sensing in the toughest conditions.

  • Safe for Hazardous Locations: Intrinsically Safe for Class I, Div 1, and Zone 0 hazardous locations
  • Chemical Resistant: Chemical-resistant coating withstands corrosive liquids
  • Seamless Integration: RS-485 Modbus RTU output for seamless connectivity
  • Remote Monitoring Capabilities: Compatible with LOE Master and RST-5003 for remote monitoring
  • Accurate Measurements: High-accuracy level measurement with ±0.04 in. resolution

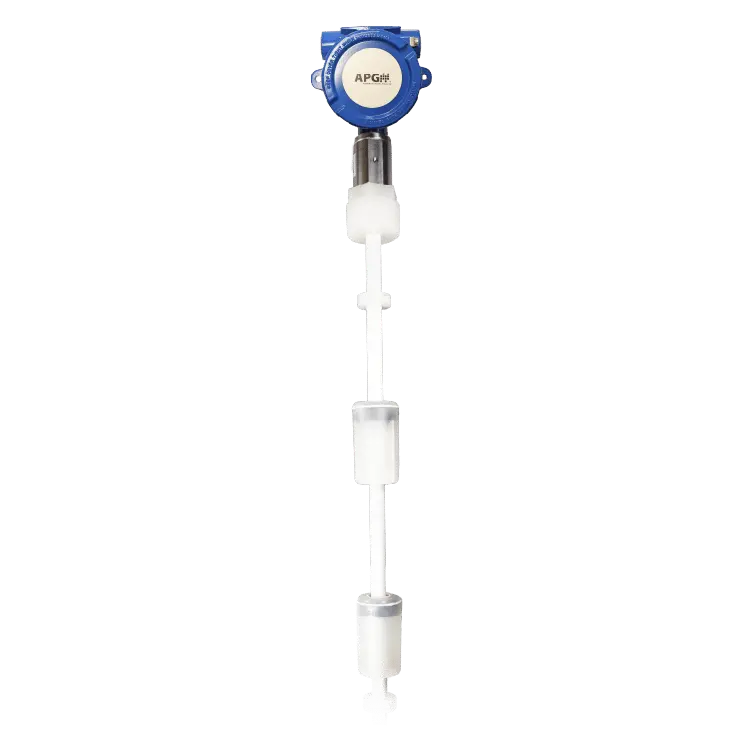

  • Durable Construction: Durable PVDF stem and Kynar float for long-term performance
  • Temperature Rated: Wide operating temperature (-40° to 185°F) and NEMA 4X/IP65 protection

ⓘ

MPI-E Chemical
Install Guide

MPI-E Chemical
IECEx Certificate

Modbus
Software Download
  • Resolution: Modbus: 0.04 in. (1 mm)
  • Distance Accuracy: ±0.04 in. (±1 mm)
  • Temperature Accuracy: ±1°C
  • Operating Temperature: -40º – 185ºF (-40º – 85ºC)
  • Maximum Operating Pressure: 30 PSIA @ 70°F / 21°C
  • NEMA 4X, IP65
  • Electrical Connection: Terminal Block, 8-24 VDC
  • Typical current draw: 24 mA
  • Reverse polarity protection: Yes
  • Surge protection (IEC 61000-4-5, 4-6, 4-7)
  • Optional RST-6001 USB to RS-485 converter
  • Output: Modbus RTU (RS-485) with Surge Protection

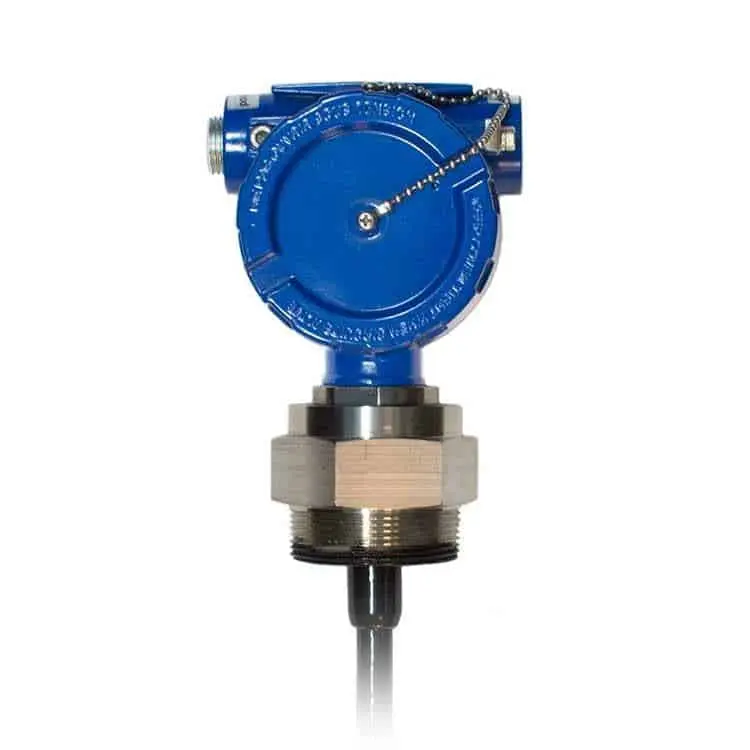

  • Housing: Cast aluminum, epoxy coated
  • Stem: 0.67” ø PVDF (rigid)
  • Stem Length: 1 – 12.75 ft. (0.3 – 3.9 m)
  • Float: 2” Ø PVDF, 0.94 SG or 0.65 Max SG
  • NEMA 4X, IP65
  • cCSAus Certificate CSA19CA70219727:
    • 8-24 VDC, Imax = 280mA
    • Class I, Division 1, Groups C, D T4;
    • Class I, Zone 0; AEx ia IIB T4 Ga; Ex ia IIB T4 Ga, IP65
    • Ta = -40º to 85ºC
  • ATEX Certificate Sira 19ATEX2072X:
    • II 1G
    • Ex ia IIB T4 Ga
    • Ta = -40º to 85ºC
  • IECEx Certificate IECEx SIR 19.0026X:
    • Ex ia IIB T4 Ga
    • Ta = -40º to 85ºC
What makes the MPI-E Chemical suitable for corrosive environments?

The MPI-E Chemical features an advanced anti-corrosion coating that withstands harsh chemicals, including sulfuric acid, boric acid, hydrochloric acid, and sodium hydroxide. Its PVDF stem and Kynar float provide long-term durability in highly corrosive liquids.

This level transmitter features RS-485 Modbus RTU output, allowing seamless integration with Modbus controllers for remote monitoring and data acquisition.

Yes, the MPI-E Chemical is designed for water treatment and wastewater facilities where chemical-resistant level monitoring is required. It effectively measures liquid levels in tanks containing corrosive treatment chemicals.

Yes, it is compatible with the LOE Master and RST-5003 remote monitoring devices, as well as the MDI controller for a fully Intrinsically Safe level monitoring solution.

The MPI-E Chemical connects via RS-485 Modbus RTU, making it easy to integrate with compatible Modbus controllers, SCADA systems, and APG remote monitoring devices. Installation and wiring guidelines can be found in the product manual.

MOUNT

Flange, NPT
OUTPUT

Modbus
CERTIFICATION

ATEX, CSA – General, IECEx, Intrinsically Safe
PROBE LENGTH

1' – 12.5'
ENCLOSURE PROTECTION

IP65, NEMA 4X
INDUSTRY

Chemical, Industrial Automation, Oil & Gas, Water & Wastewater

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.

RETURNS

Returns and allowances must be authorized by APG in advance, which authorization may be granted or withheld by APG in APG’s sole and absolute discretion. Read our full return policy HERE.
