Explosion Proof Magnetostrictive Float Level Sensor

MPX-T

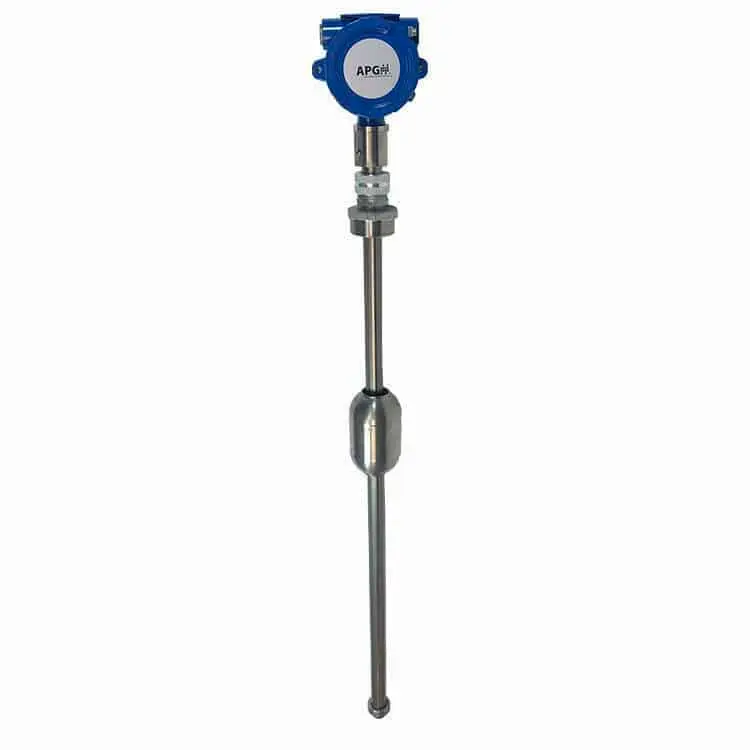

Titanium Float Level Transmitter

The MPX-T Titanium Float Level Sensor is engineered for extreme environments, specifically for applications with hydrogen sulfide (H₂S) and aggressive chemicals. With a 1″ titanium stem, this durable sensor resists corrosion where other probes fail. The MPX-T is ideal for industries requiring reliable liquid level measurement in harsh conditions.

  • Safety Rated: Explosion-proof design for hazardous environments
  • Max length: 25 ft for deep tank applications
  • Output: RS-485 Modbus and 4-20 mA for seamless integration

ⓘ

MPX-T Datasheet

MPX-T User Manual

MPX-T Install Guide

Modbus Software Download
  • Resolution:
    • 4-20 mA: 14 bit DAC (1 mm)
    • Modbus: 0.04 in. (1 mm)
  • Distance Accuracy: 4-20 mA Modbus: Greater of ±0.05% of FS or 1 mm
  • Temperature Accuracy: RTD — 1k Ohm: ±1°C
  • Probe Operating Temperature: -40º – 85ºC (-40º–185ºF)
  • IP65
  • Electrical Connection: Terminal Block, 12–24 VDC
  • Typical current draw:
    • 4-20 mA: (single) 4-22 mA, (dual) 8-44 mA
    • Modbus (RS-485): 25 mA
  • Reverse polarity protection: Yes
  • Surge protection: (Output 4 only)
  • RS-485: optional RST-6001 USB to RS-485 converter
  • 4-20 mA: factory set or optional RST-4100 programming module
  • Output:
    • Single or dual loop-powered 4-20 mA
    • Set points:
      • 4 mA, probe bottom.
      • 20 mA, 10 in. below probe zero point or at customer specified point.
    • Modbus RTU (RS-485), optional temperature output.
  • Housing: Cast aluminum, epoxy coated
  • Stem: 1.0” Ø Titanium 2
  • Stem Length: 4 – 25 ft. (1.22 – 7.62 m)
  • CSA:
    • Rated 12 – 24 VDC; 4-20 mA or 80 mA; Ta 85°C
    • Class I, Division 1 & 2, Groups C & D T4
    • Ex d IIB T4
    • Ex nA IIB T4
    • Class I, Zone 1; AEx d IIB T4
    • Class I, Zone 2; AEx nA IIB T4
What is the MPX-T Magnetostrictive Float Level Transmitter?

The MPX-T is an Intrinsically Safe magnetostrictive float level transmitter featuring a titanium stem, designed for precise liquid level measurements in various industrial applications.

The MPX-T shares similar features with other APG magnetostrictive transmitters, however, its titanium stem offers enhanced corrosion resistance, making it particularly suitable for applications involving corrosive liquids.

The MPX-T offers two primary output options:​

  • 4-20 mA Analog Output: Provides a current signal proportional to the liquid level, commonly used in industrial control systems.​

  • RS-485 Modbus RTU Output: Allows for digital communication, enabling integration with Modbus-compatible devices and systems.

The MPX-T operates on a power supply ranging from 12 to 24 VDC, with a maximum current consumption of 80 mA.

The MPX-T can be equipped with integrated temperature sensors to provide temperature readings along with level measurements. This feature allows for temperature compensation in applications where temperature variations could affect measurement accuracy.

MOUNT

Flange, No Mount, NPT
OUTPUT

4-20 mA, Modbus
CERTIFICATION

CSA – General, Explosion Proof
INDUSTRY

Chemical, Food & Beverage, Industrial Automation, Oil & Gas, Water & Wastewater
PROBE LENGTH

4' – 25'
ENCLOSURE PROTECTION

IP65
