Flexible Magnetostrictive Float Level Transmitter

MPX-F

Extra Flexibility For Your Extra-Long Measurements

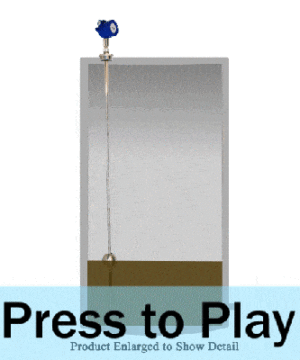

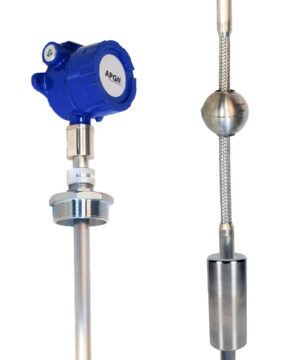

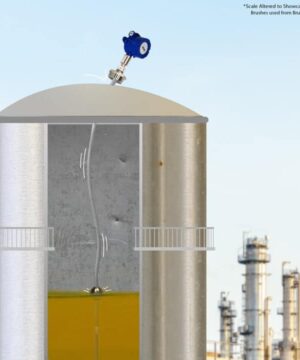

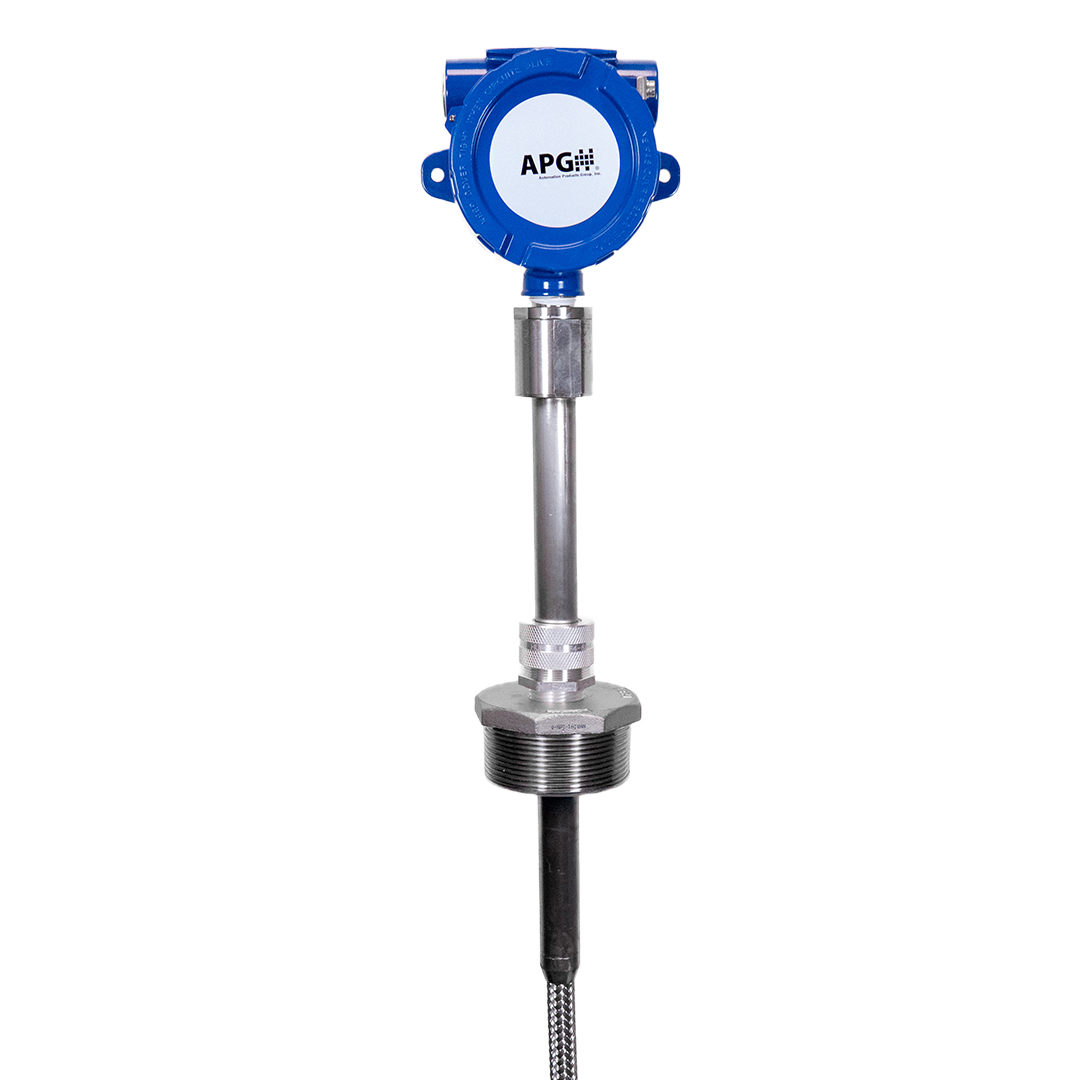

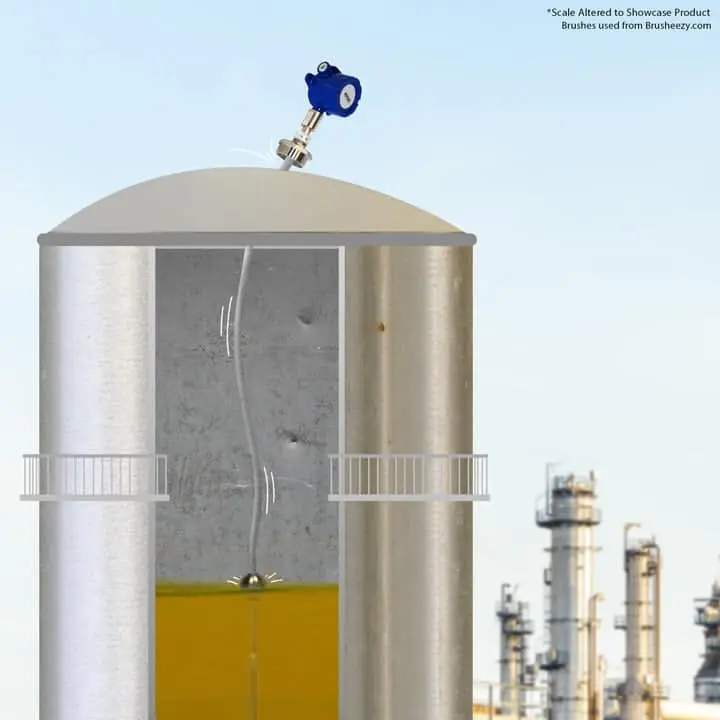

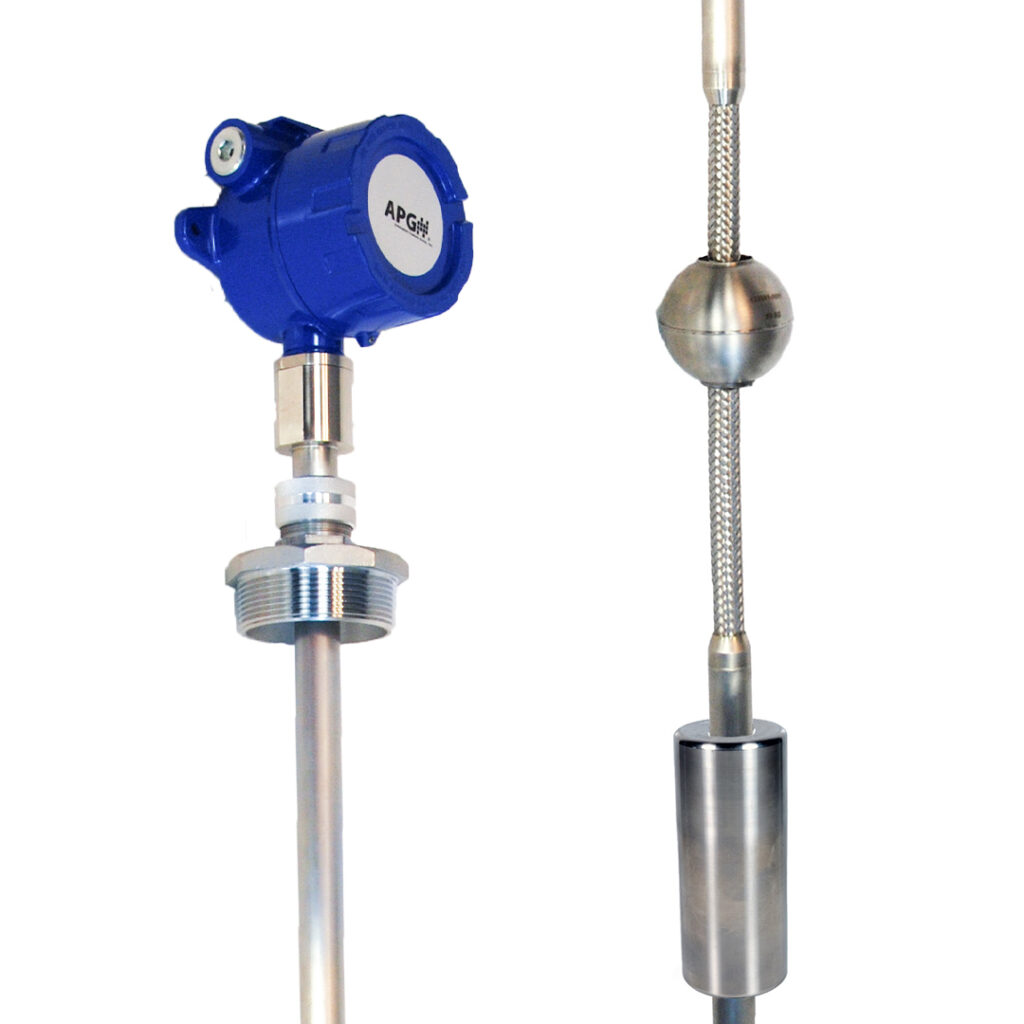

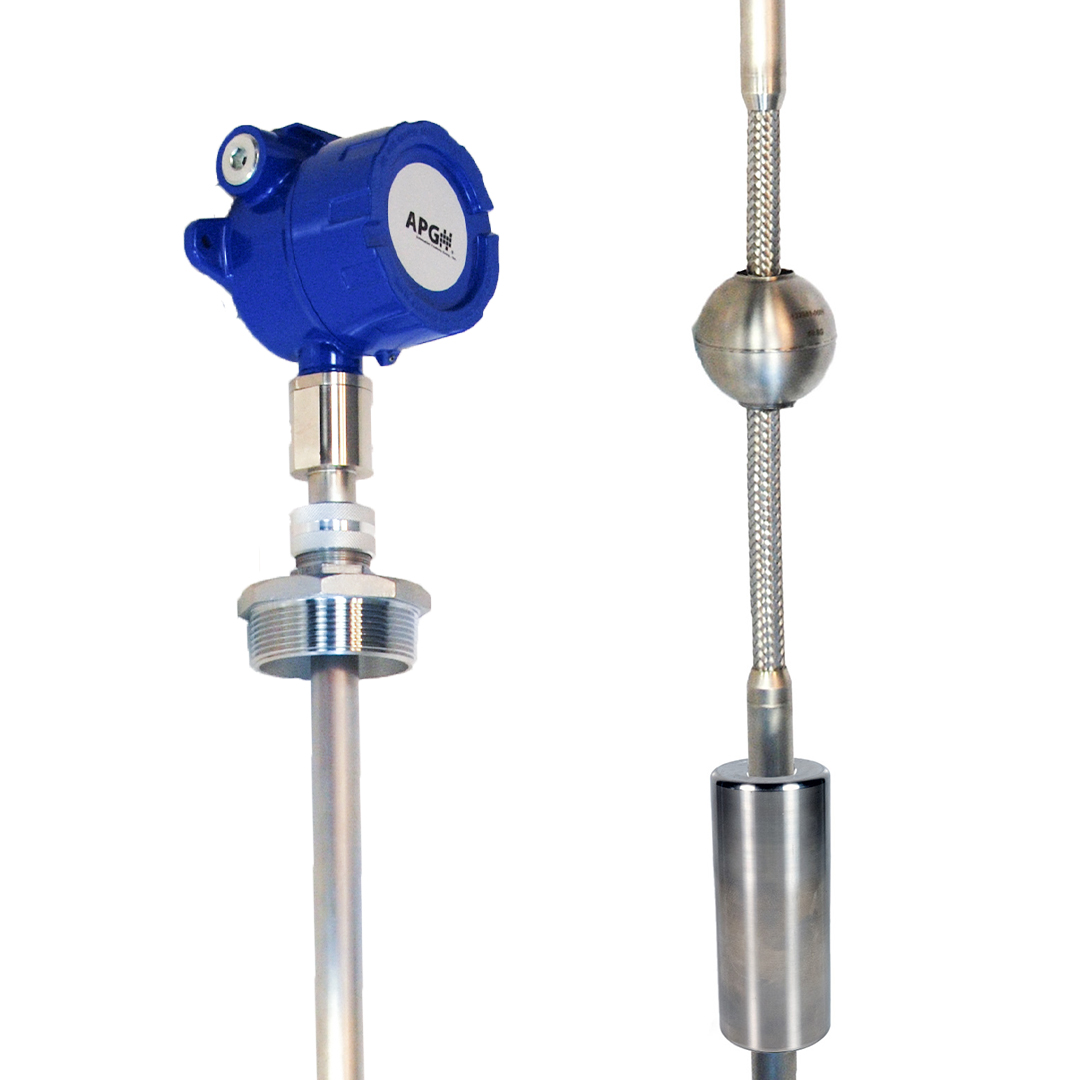

The MPX-F Flexible Magnetostrictive Float Level Transmitter is designed for easy installation in tall tanks, featuring flexible 316L stainless steel tubing with a braided stem. This innovative design simplifies installation, making it a reliable solution for liquid level measurement in chemical processing, water treatment, oil and gas industries, and more. The MPX-F offers high performance with Modbus RTU output for seamless integration into existing systems, ensuring accurate readings and easy monitoring.

  • Superior Flexibility: The 316L stainless steel flexible tubing coils for shipping and uncoils easily for quick installation in tall tanks without the need for heavy equipment.
  • Modbus Output: RS-485 Modbus RTU output ensures compatibility with Modbus controllers and PLCs, streamlining integration and setup.
  • Remote Monitoring: Supports monitoring for real-time remote access to tank levels, ideal for large-scale industrial applications.
  • Durability: Corrosion-resistant 316L SS tubing and reliable performance in challenging environments.
  • Cost-Effective: Reduces installation and maintenance costs by eliminating the need for cranes and simplifying wiring.

ⓘ

MPX-F Datasheet

MPX-F User Manual

MPX-F Install Guide

Modbus Software Download
  • Resolution:
    • 4-20 mA: 14 bit DAC (1 mm)
    • Modbus: 0.04 in. (1 mm)
  • Distance Accuracy:
    • 4-20 mA, Modbus: Greater of +/- 0.05% of FS or 1 mm
  • Temperature Accuracy:
    • RTD—1K Ohm: ± 1°C
    • Digital Temp Sensor: ± 1°C
  • Operating Temperature: -40°–185° F (-40°–85° C)
  • IP65
  • Electrical Connection: Terminal Block, 12-24 VDC
  • Typical Current Draw:
    • 4-20 mA: (single) 4-22 mA, (dual) 8-44 mA
    • Modbus (RS-485): 28 mA
  • Reverse polarity protection: Yes
  • Surge protection: Output 4 only
  • RS-485: Optional RST-6001 USB to RS-485 converter
  • 4-20 mA: Factory set or optional RST-4100 programming module
  • Output:
    • Single or dual loop-powered 4-20 mA
      • Set points:
      • 4 mA, probe bottom.
      • 20 mA 10 in. below probe zero point or at customer specified point
    • Modbus RTU (RS-485), optional temperature output
  • Housing: Cast aluminum, epoxy coated

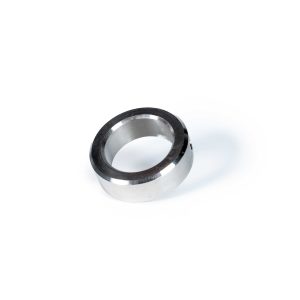

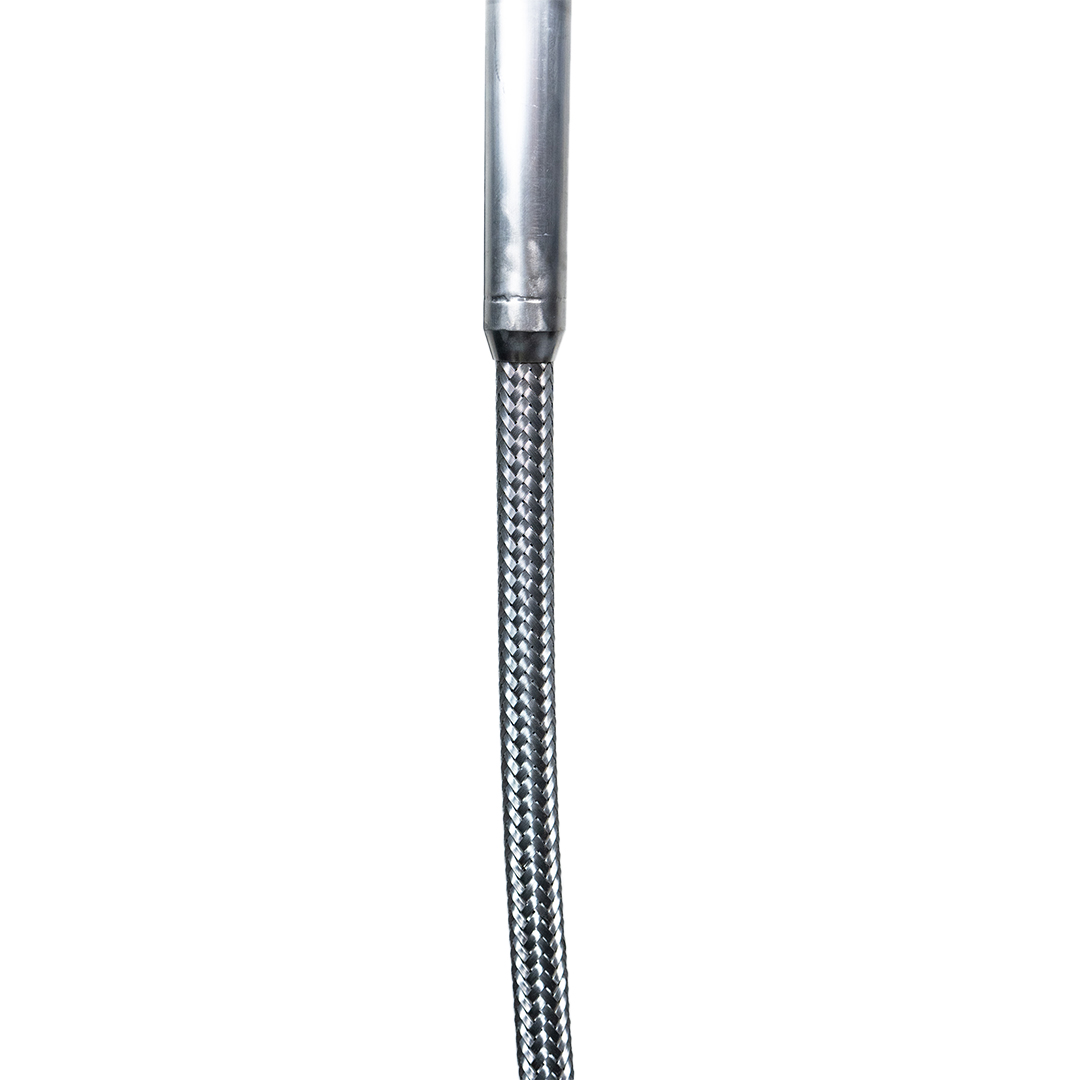

  • Stem: 7/8” Ø 316L SS Flexible Tubing with Braid
  • Stem Length: 10–32 ft. (1.22–9.75 m)
  • CSA:
    • Rated 12–24 VDC; 4-20 mA or 80 mA; Ta 85°C
      • Class I, Division 2, Groups C & D T4
      • Ex nA IIB T4
      • Class I, Zone 2; AEx nA IIB T4
What makes the MPX-F different from other level transmitters?

The MPX-F features flexible 316L stainless steel tubing with a braided stem, allowing for easy installation in tall tanks without heavy equipment. Its Modbus RTU output ensures seamless integration into existing systems, while its corrosion-resistant design ensures durability in harsh environments.

Unlike rigid level transmitters, the MPX-F’s flexible tubing can be coiled for shipping and easily uncoiled for installation, reducing the need for cranes or large lifting equipment. This significantly lowers installation costs and effort.

The MPX-F is ideal for chemical processing, water treatment, oil and gas, and food and beverage industries. It provides accurate tank level monitoring and remote access, making it suitable for a wide range of industrial applications.

Yes, the MPX-F supports remote monitoring by providing real-time data when connected to SETTLER and Explorer. This feature is especially useful for large-scale industrial applications that require continuous oversight of tank levels.

Yes, the MPX-F is constructed with corrosion-resistant 316L stainless steel tubing, ensuring long-lasting performance even in challenging environments such as chemical processing plants and wastewater treatment facilities.
