Ultrasonic Sensor

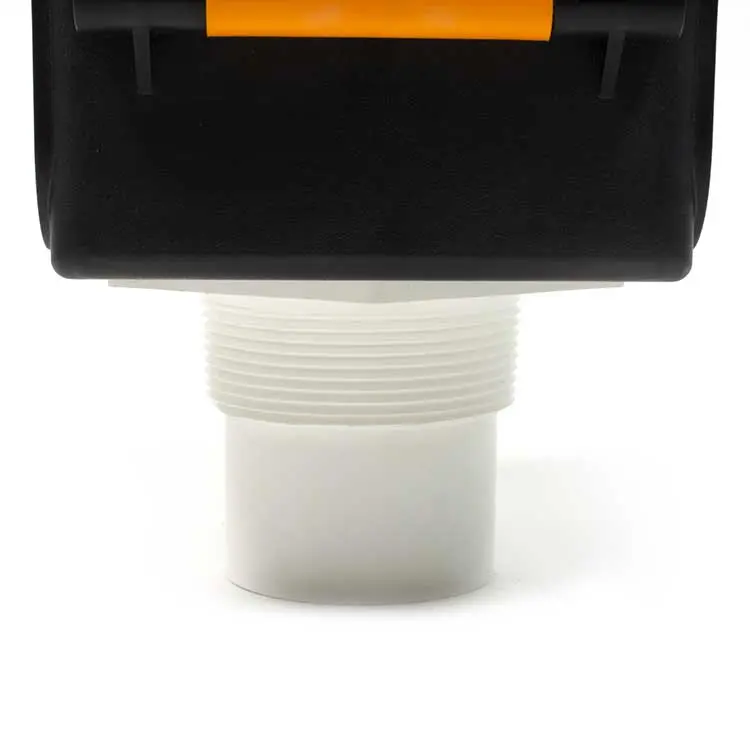

Loop Powered Ultrasonic Sensor

LPU-2127

Hazardous Area Certified with Integrated Keypad

The LPU-2127 Loop-Powered Ultrasonic Sensor is a hazardous area-certified device with an integrated keypad and LCD display, allowing for easy programming without a computer. Designed for fast wiring and simple setup, this CSA-certified ultrasonic level sensor operates reliably in harsh environments with its chemical-resistant PVDF housing.

The LPU-2127 is ideal for liquid and solid level measurement, offering an operating range of up to 25 feet for liquids and 10 feet for solids with ±0.25% accuracy. It features loop-powered 4-20mA output, temperature compensation, and IP65-rated protection.

  • Loop-powered: for simplified wiring
  • Integrated keypad and LCD display: for easy setup
  • Hazardous area certified: (CSA Class 1, Div. 2, Groups C & D)
  • Durable PVDF housing: for chemical resistance in harsh environments
  • Measurement range: 1-25 ft (liquids), 1-10 ft (solids)
  • Accuracy: ±0.25% of detected range
  • 4-20mA output: with 12-28VDC supply voltage
  • IP65 protection rating: for rugged environments

ⓘ

LPU-2127 Datasheet

LPU-2127 User Manual

LPU-2127 Install Guide
  • Operating Range: 1 – 25 ft. (0.3 – 7.6 m) on liquids 1 – 10 ft. (0.3 – 3 m) on solids
  • Beam Pattern: 9º off axis
  • Internal Temperature Compensation: Yes
  • Frequency: 69 kHz
  • Accuracy: ±0.25% of detected range
  • Resolution: 0.1 in. (2.5 mm)
  • Response Time: Dependent on output ranges from 0.6 – 3 seconds
  • Sample Rate: 3 seconds at 4mA – 0.6 seconds at 20mA
  •  Ratings: IP65
  • Operating Temp: -40º – 140ºF (-40º – 60ºC)
  • Cable Connection: 2-terminal connector
  • Total Current Draw: 4-20 mA
  • Supply Voltage: 12-28 VDC

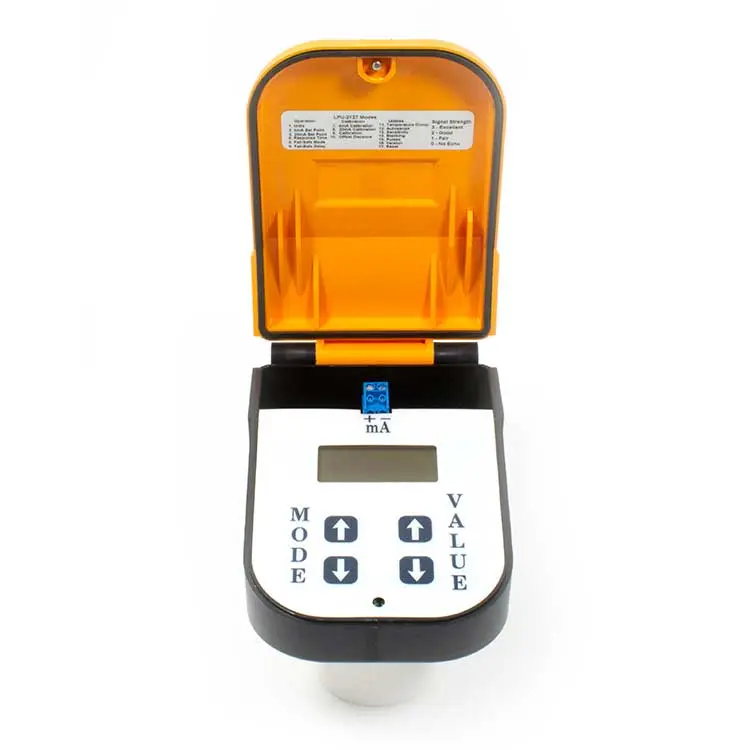

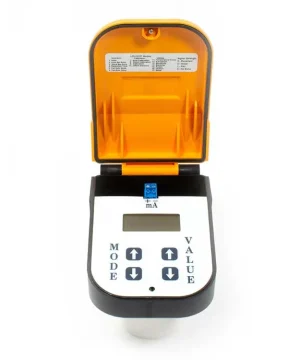

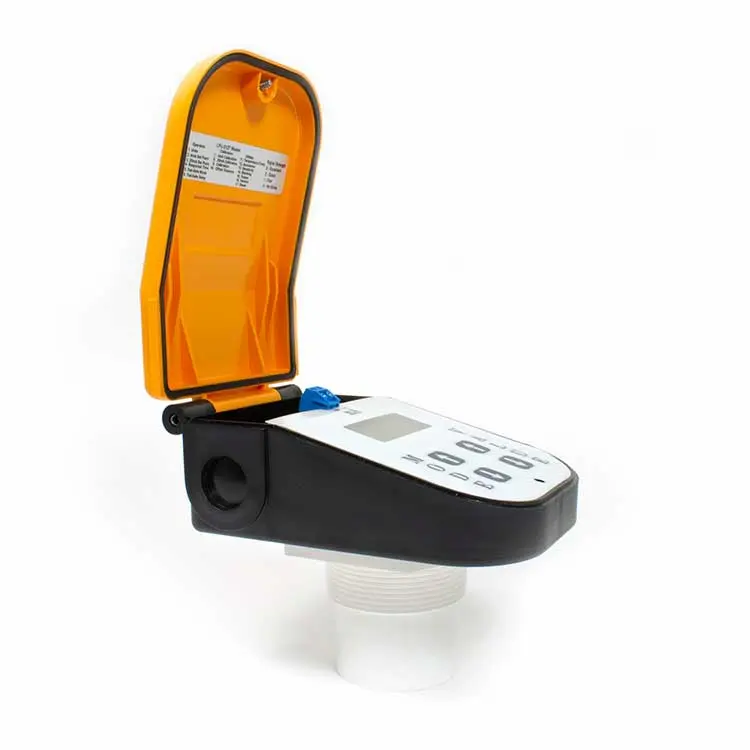

  • Integrated keypad and LCD display
  • Output:
    • 4-20 mA (loop-powered)
    • 600 ohms @ 24 VDC
    • 150 ohms @ 12 VDC
  • PVDF (Kynar®) transducer housing
  • PET upper housing
  • Transducer Type: Ceramic, PVDF face
  • Class 1, Div. 2, Groups C & D
  • Class 1, Zone 2, AEx nA IIB T6
What is the LPU-2127 Loop-Powered Ultrasonic Sensor used for?

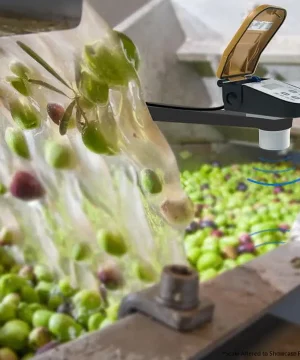

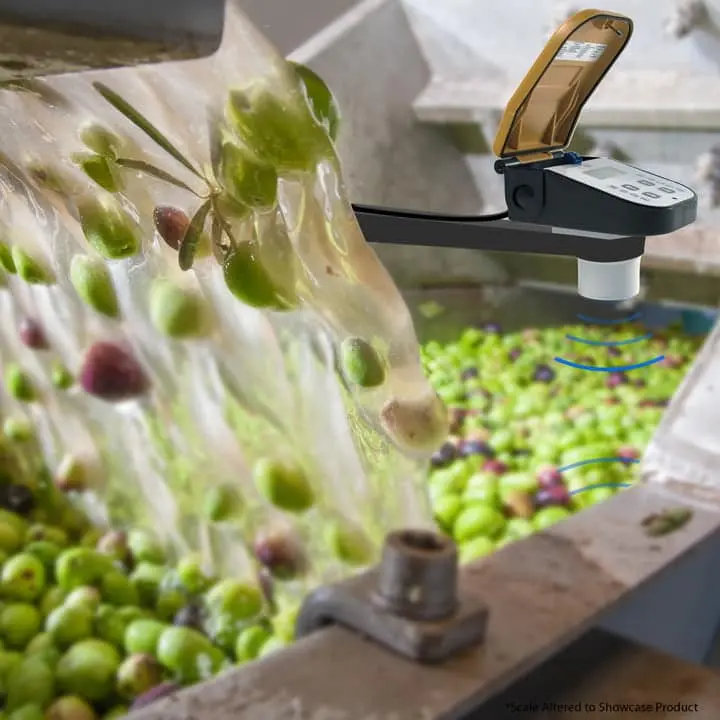

The LPU-2127 is designed for accurate liquid and solid level measurement in industrial applications. It operates in harsh environments with its chemical-resistant PVDF housing and is CSA-certified for hazardous areas.

This sensor is loop-powered, meaning it operates on a 4-20mA current loop with a 12-28VDC supply voltage, simplifying wiring and installation.

The sensor provides ±0.25% accuracy of the detected range, ensuring reliable level measurements.

Yes, it is CSA-certified for hazardous locations, rated Class 1, Div. 2, Groups C & D, and Class 1, Zone 2 Certified.

Yes, the sensor housing is made of durable PVDF, which offers high chemical resistance for use in challenging environments.

Yes, it is compatible with the RST-5003 remote display, allowing for remote monitoring and configuration.

Yes, the sensor includes temperature compensation to ensure accurate readings in varying environmental conditions.

MOUNT

2"
RANGE

1' – 15', 1' – 25'
OUTPUT

4-20 mA
CERTIFICATION

CSA – General
INDUSTRY

Chemical, Food & Beverage, Industrial Automation, Marine, Oil & Gas, Water & Wastewater
ENCLOSURE PROTECTION

IP65

WARRANTY
