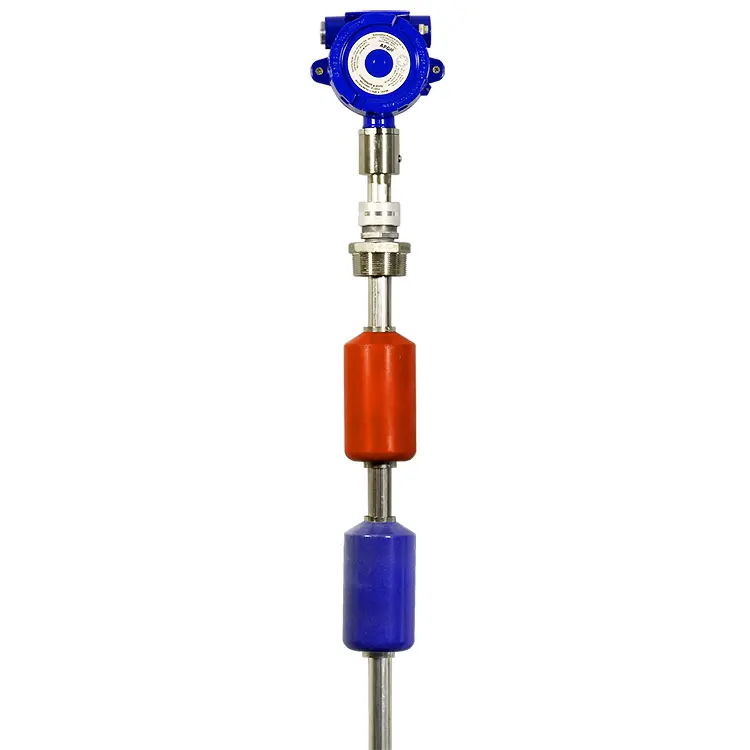

Intrinsically Safe Magnetostrictive Float Level Transmitter

MPI-R

Durable & Accurate for Hazardous Environments

The MPI-R Intrinsically Safe Magnetostrictive Float Level Transmitter offers exceptional accuracy in hazardous environments. The 1.0″∅ MPI-R models are built for extreme durability and reliable performance in tough applications. Designed for Intrinsic Safety, this liquid level sensor provides accurate interface level and total volume measurements. Ideal for use in hazardous locations, it pairs with an Intrinsically Safe Modbus Display (MDI) to form a self-contained monitoring system, eliminating the need for additional barriers.

Durability & Compatibility:

With a robust design that withstands high turbidity and harsh environments, the MPI sensor features multiple stem and float material options, ensuring chemical compatibility and longevity.

  • Low-Level Fuel-Water Interface Detection: Utilizes high-precision technology to accurately detect minimal fuel and water levels, ensuring reliable interface measurement in tanks and industrial systems.
  • Long-Range Performance: Lengths up to 31.5 feet (9.6 m)
  • Large, Buoyant Floats: Ideal for applications where fouling or buildup is a concern, ensuring reliable performance in tough environments

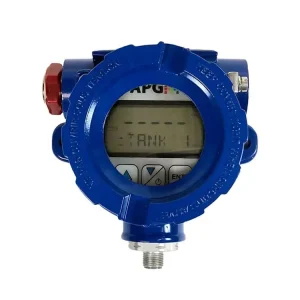

  • Self-Contained Monitoring: Pairs with the Intrinsically Safe Modbus Display (MDI) for easy setup without needing additional barriers.

ⓘ

MPI Install Guide

MPI
IECEx Certificate

Modbus Software Download
  • Resolution: Modbus: 0.04 in. (1 mm)
  • Distance Accuracy: ±0.04 in. (±1 mm)
  • Temperature Accuracy: ±1°C
  • Operating Temperature: -40º – 185ºF (-40º – 85ºC)
  • NEMA 4X, IP65
  • Electrical Connection: Terminal Block, 8-24 VDC
  • Typical current draw: 25 mA
  • Reverse polarity protection
  • Surge protection (IEC 61000-4-5, 4-6, 4-7)
  • Optional RST-6001 USB to RS-485 converter
  • Output: Modbus RTU (RS-485) with Surge Protection

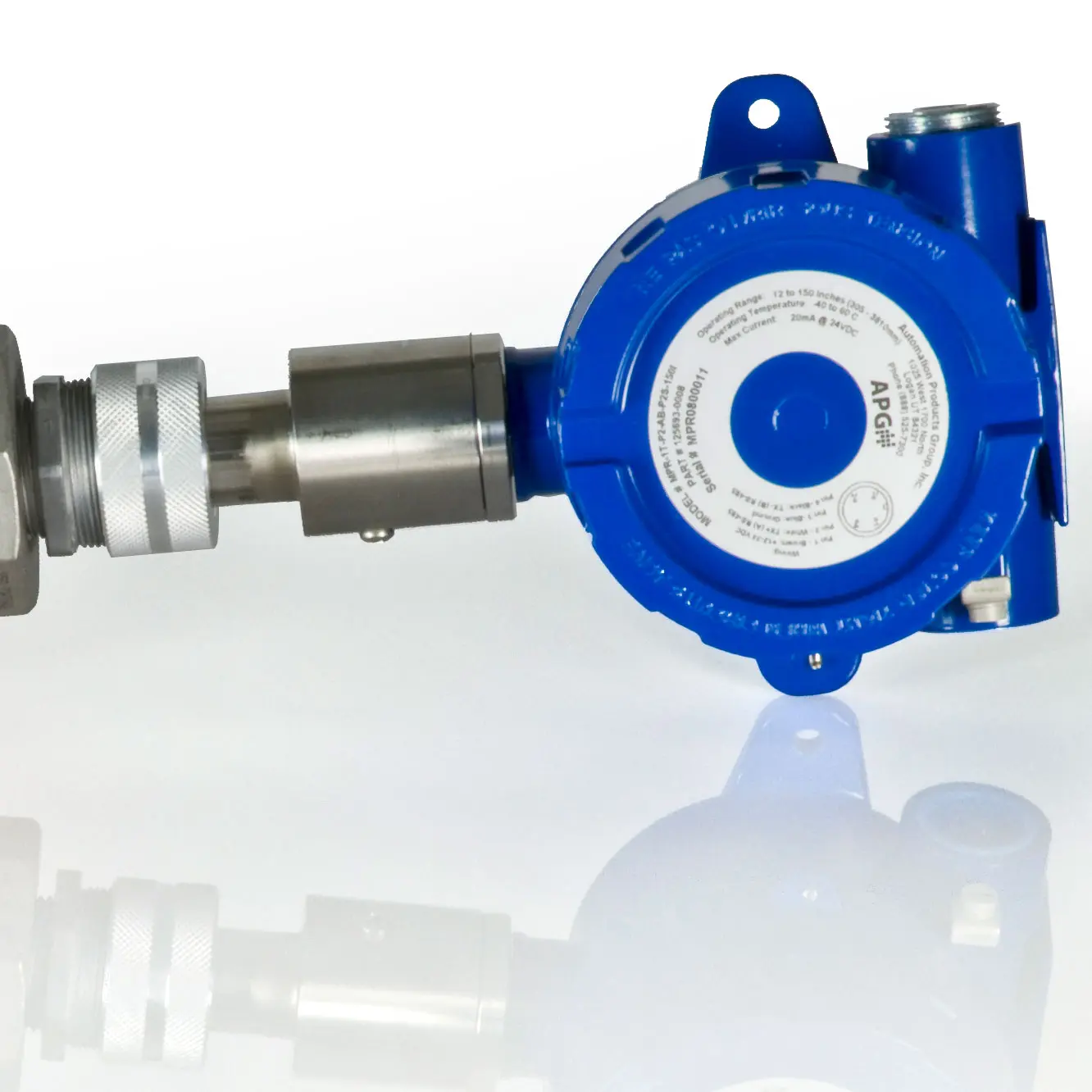

  • Housing: Cast aluminium, epoxy coated
  • Stem: 1.0” ø 316L SS
  • Stem Length: 4 – 31.5 ft. (1.22 – 9.60 m)
  • NEMA 4X, IP65
  • cCSAus Certificate CSA19CA70219727:
    • 8-24 VDC, Imax = 280mA
    • Class I, Division 1, Groups C, D T4;
    • Class I, Zone 0; AEx ia IIB T4 Ga; Ex ia IIB T4 Ga, IP65
    • Ta = -40º to 85ºC
  • ATEX Certificate Sira 19ATEX2072X:
    • II 1G
    • Ex ia IIB T4 Ga
    • Ta = -40º to 85ºC
  • IECEx Certificate IECEx SIR 19.0026X:
    • Ex ia IIB T4 Ga
    • Ta = -40º to 85ºC
What industries and applications is this sensor best suited for?

The MPI-R is commonly used in:

  • Hazardous locations (Class I, Division 1)
  • Storage tanks and fuel tanks
  • Oil/water interface measurement
  • Industrial effluent monitoring
  • Water and wastewater treatment
  • Power generation
  • Petrochemical, chemical, and oil & gas industries

The MPI-R is intrinsically safe and certified for use in hazardous locations (Class I, Division 1, Zone 0). It meets CSA, ATEX, and IECEx safety standards, ensuring reliable operation in environments where explosive gases or vapors may be present.

No. When paired with an Intrinsically Safe Modbus Display (MDI), the MPI-R forms a self-contained level monitoring system, eliminating the need for extra barriers.

Yes. The sensor is designed to work with storage tanks up to 31.5 ft (9.6 m), ensuring flexibility for various industrial applications.

MOUNT

Flange, No Mount, NPT
OUTPUT

Modbus
CERTIFICATION

ATEX, CSA – General, IECEx, Intrinsically Safe
ENCLOSURE PROTECTION

IP65, NEMA 4X
INDUSTRY

Chemical, Food & Beverage, Industrial Automation, Oil & Gas, Water & Wastewater
PROBE LENGTH

4' – 32'

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.

RETURNS

Returns and allowances must be authorized by APG in advance, which authorization may be granted or withheld by APG in APG’s sole and absolute discretion. Read our full return policy HERE.

Suggested Products

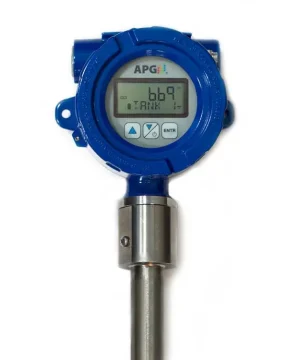

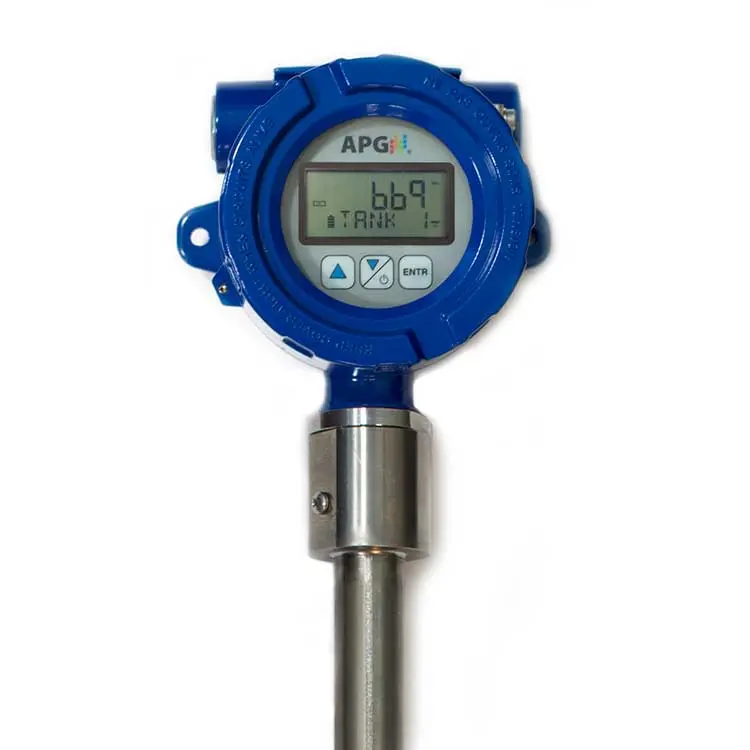

Explosion Proof Magnetostrictive Float Level Transmitter
