DCR-1006A

Full Controller with 4 Relays & Signal Outputs

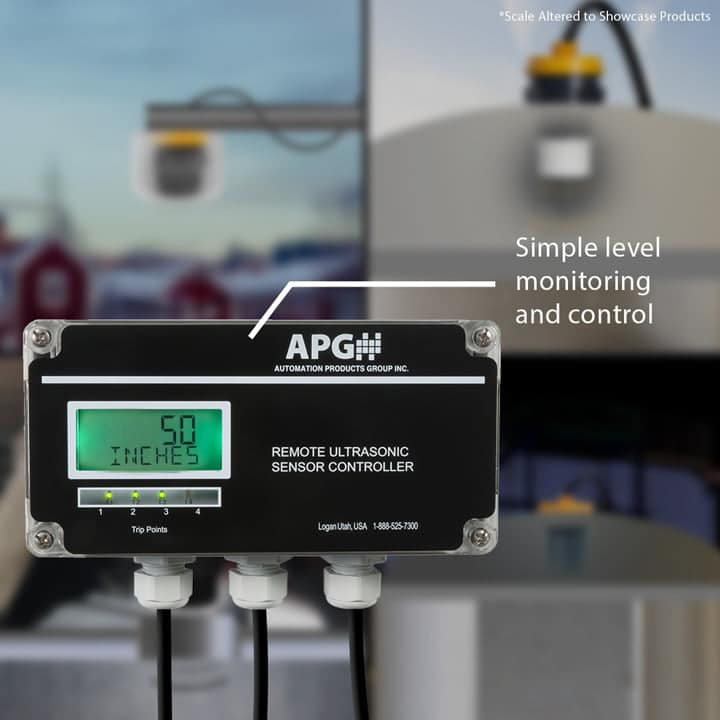

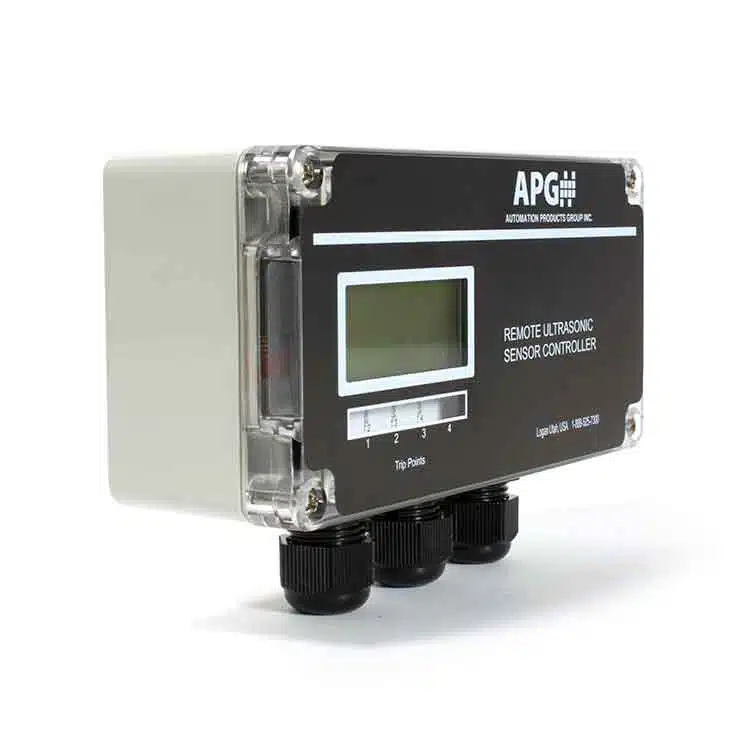

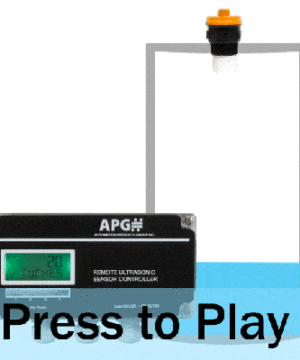

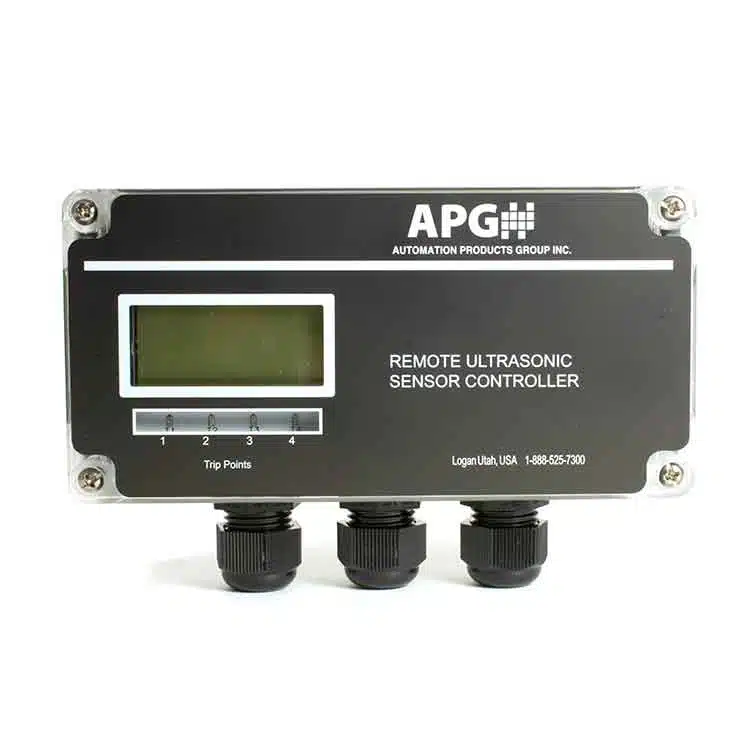

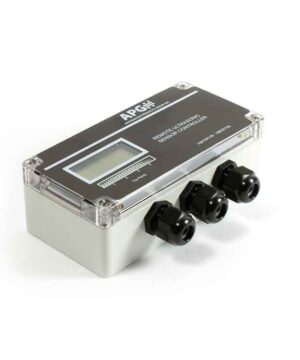

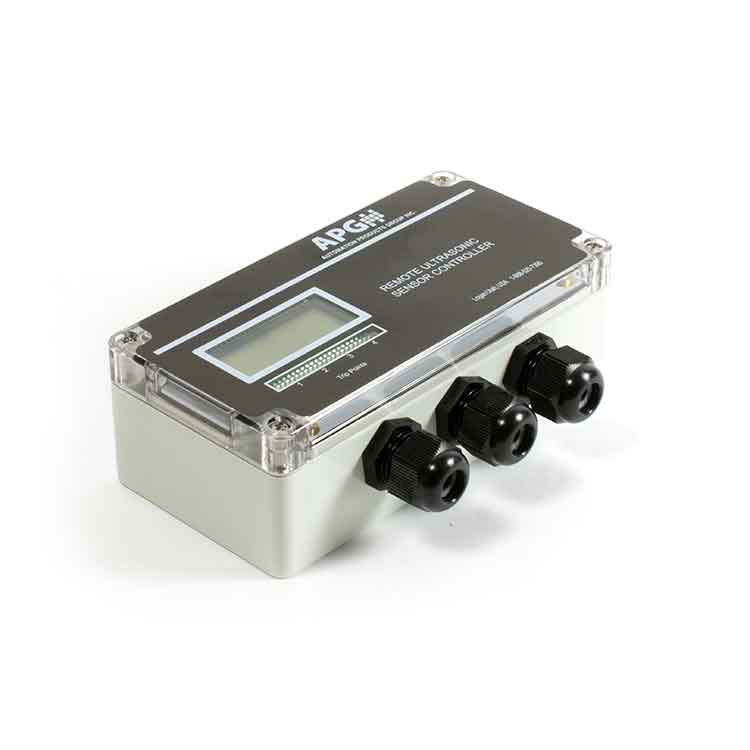

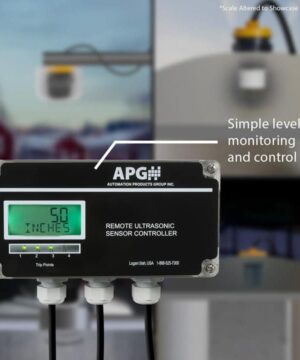

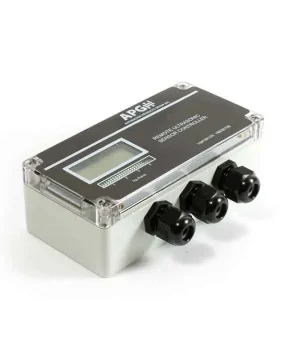

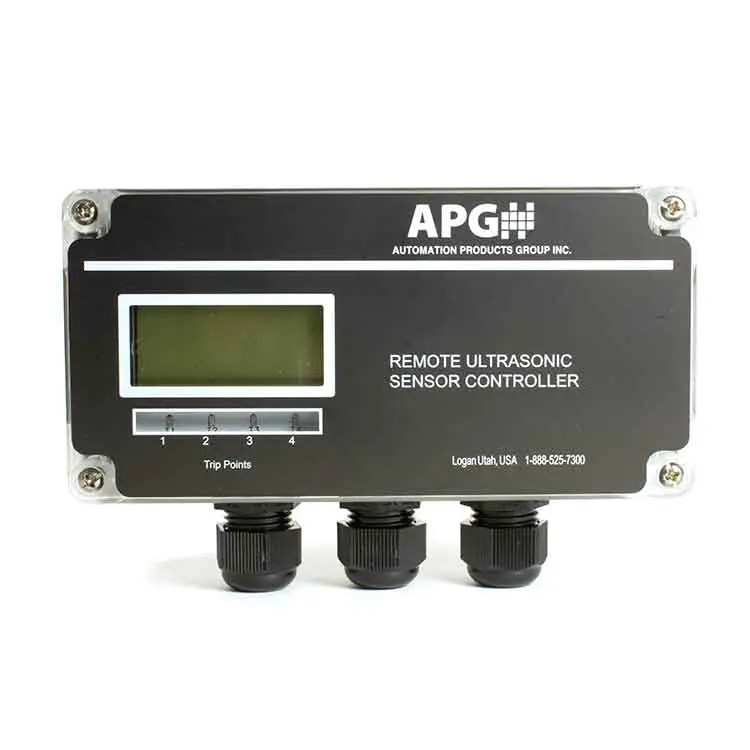

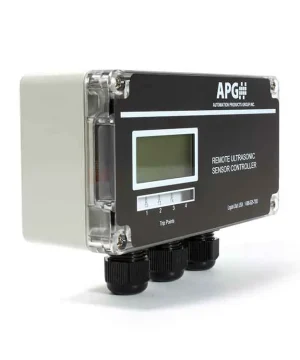

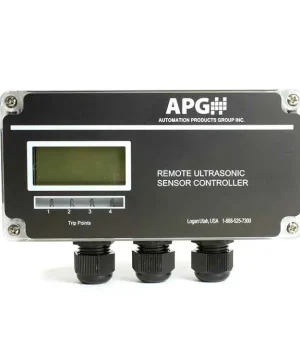

The DCR-1006A Controller is a programmable controller for ultrasonic sensors. It seamlessly integrates with MNU ultrasonic sensors and is also compatible with DST ultrasonic sensors, providing a simple, cost-effective control system without requiring advanced infrastructure.

With four relays and signal outputs, the DCR-1006A supports Modbus communication, 4-20 mA output, and RS-485 (MODBUS/RTU) interface. This reliable system has delivered consistent performance for over 15 years.

  • Sensor Compatibility: Works with MNU and DST ultrasonic sensors, as well as the MPX level probe
  • Versatile Outputs: 4 relays and 4-20 mA signal output for level and flow monitoring
  • Seamless Integration: Supports RS-485 Modbus communication
  • Rugged Protection: NEMA 4X, IP66-rated enclosure for harsh environments
  • Wide Operating Range: Operates in temperatures from -22° to 140°F (-30° to 60°C)
  • Enhanced Readability: Backlit 5-digit display with 6-character description field
  • Flexible Mounting Options: Available with NPT back, DIN mount, or F connector configurations

ⓘ
PDF Download Icon

DCR-1006A
Datasheet
PDF Download Icon

DCR-1006A
User Manual
Software Download Icon

Modbus Software
Download
  • Outputs:
    • 4 Relays
    • 4-20 mA
    • RS-485 (MODBUS/RTU) interface
  • Ratings: NEMA 4X, IP66
  • Operating Temp: -22º – 140ºF (-30º – 60ºC)
  • Supply voltage: 100 – 240 VAC
    • 24 VDC
  • Programmable 4 Button Keypad
  • APG Modbus Software (RS-485)
  • Inputs:
    • MNU/MPX Sensor (RS-485)
    • DST Sensor
    • 1 Dry contact
  • Display:
    • 5 digit with 6 Character description field
    • Back light
  • NEMA 4X, IP66
What is the DCR-1006A Controller used for?

The DCR-1006A Controller is designed to work with the MNU and DST ultrasonic sensors, as well as the MPX level probe. It allows for easy integration with these sensors, enabling reliable level and flow monitoring without the need for complex infrastructure.

The DCR-1006A is fully compatible with APG’s MNU and DST ultrasonic sensors, along with the MPX level probe, providing an effective control system for a range of applications.

Yes, the DCR-1006A supports Modbus communication, specifically the RS-485 (MODBUS/RTU) interface, ensuring seamless integration into your existing control system.

Yes, the DCR-1006A features a NEMA 4X, IP66-rated enclosure, which ensures its durability and reliability in harsh environments, protecting it from dust, water, and other challenging conditions.

The DCR-1006A is available with three mounting options: NPT back, DIN mount, or F connector configuration, allowing you to choose the best fit for your setup.

MOUNT

Surface Mount
OUTPUT

4 Relays, 4-20 mA, Modbus
INPUT

0-2 Switches, 1 Dry Contact, MNU/DST Sensors, Modbus
ENCLOSURE PROTECTION

IP66, NEMA 4X
INDUSTRY

Chemical, Food & Beverage, Industrial Automation, Marine, Oil & Gas, Water & Wastewater
