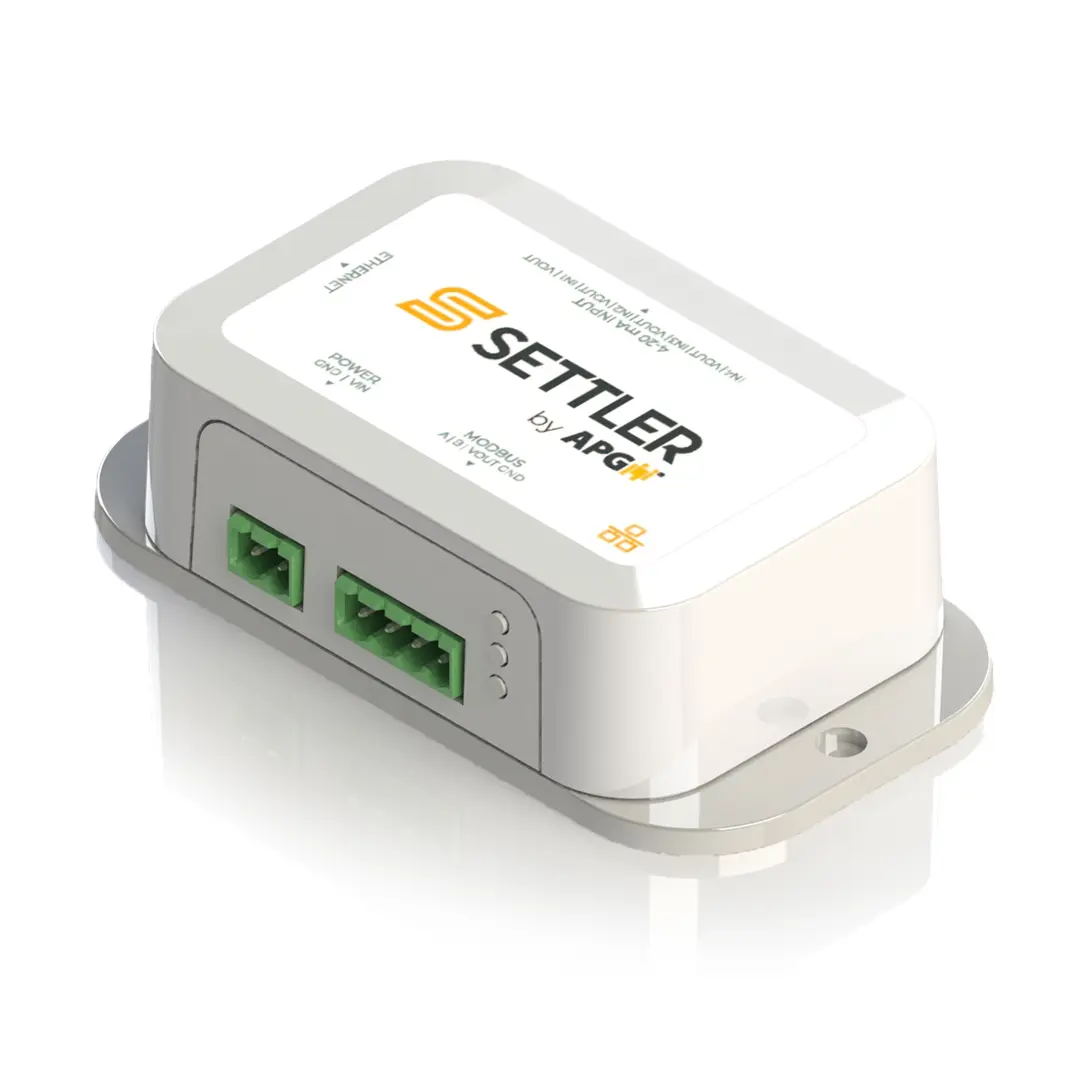

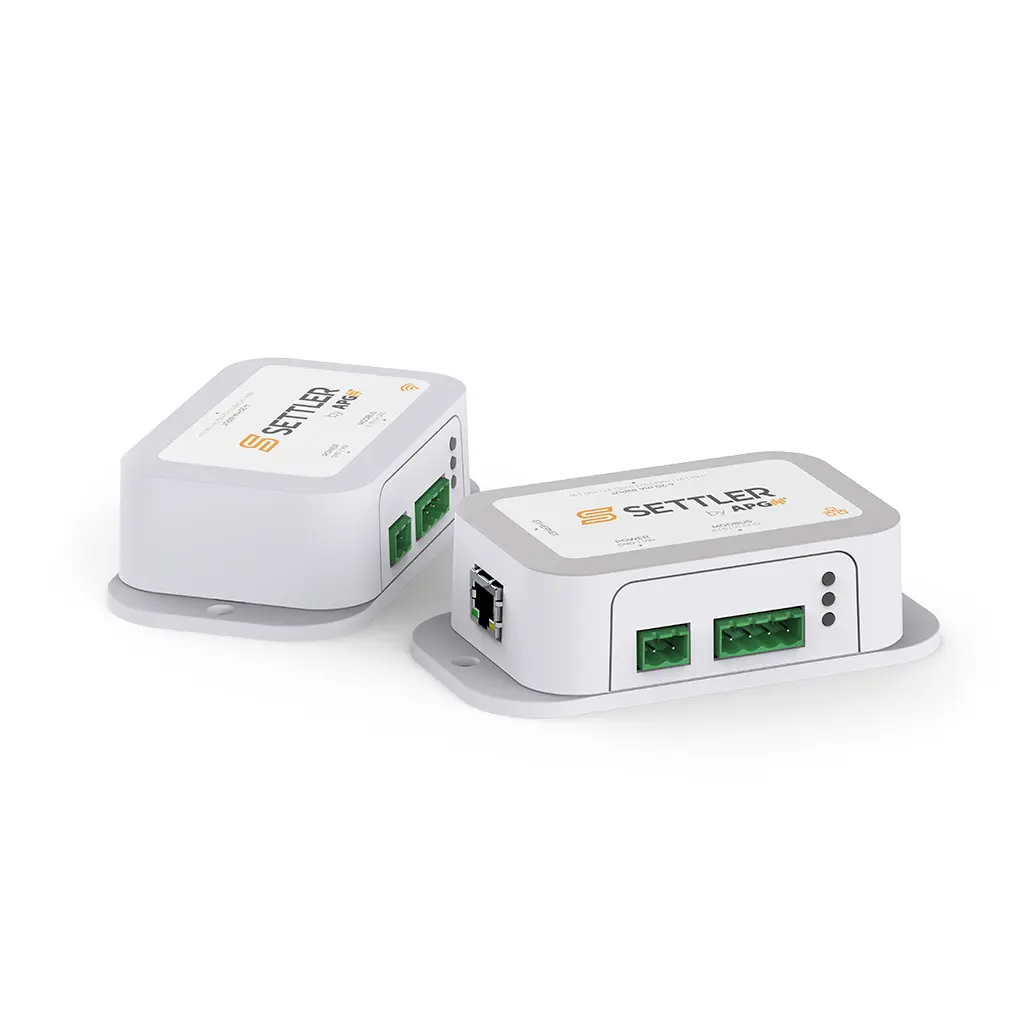

Remote Monitoring Gateway

Settler

DESCRIPTION
Features

Reliable Remote Monitoring

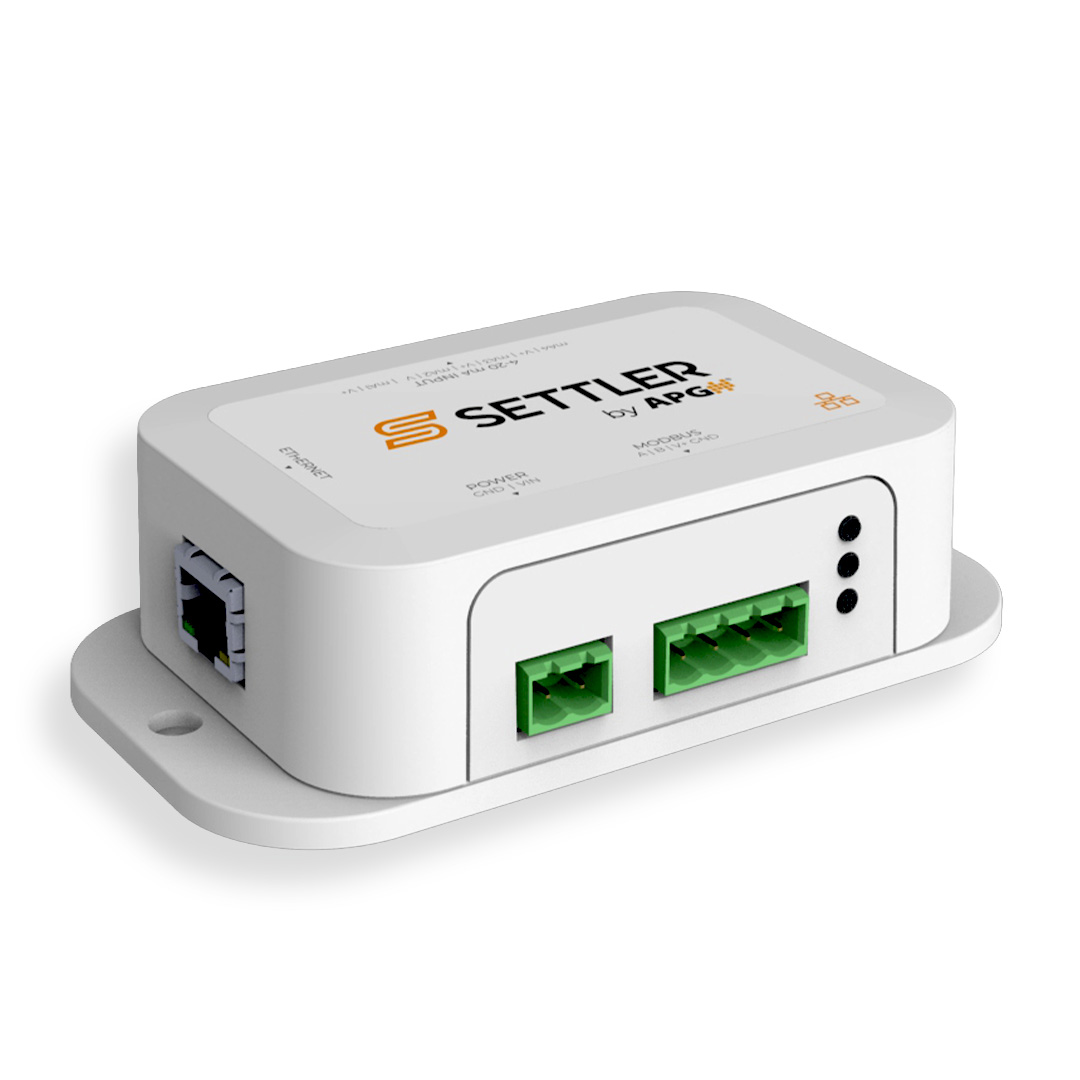

Take control of your data with Settler, the compact and powerful gateway designed for effortless sensor connectivity. Supporting up to four 4-20mA sensors and multiple Modbus RS485 devices, Settler securely transmits data via MQTT with AES (Advanced Encryption Standard) to APG’s cloud-based Explorer platform—ensuring safe and reliable remote monitoring.

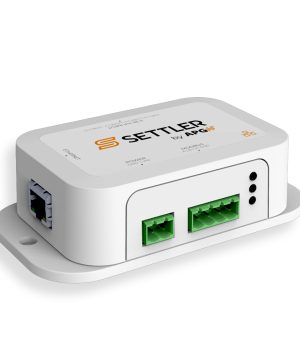

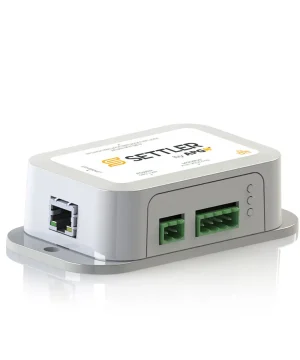

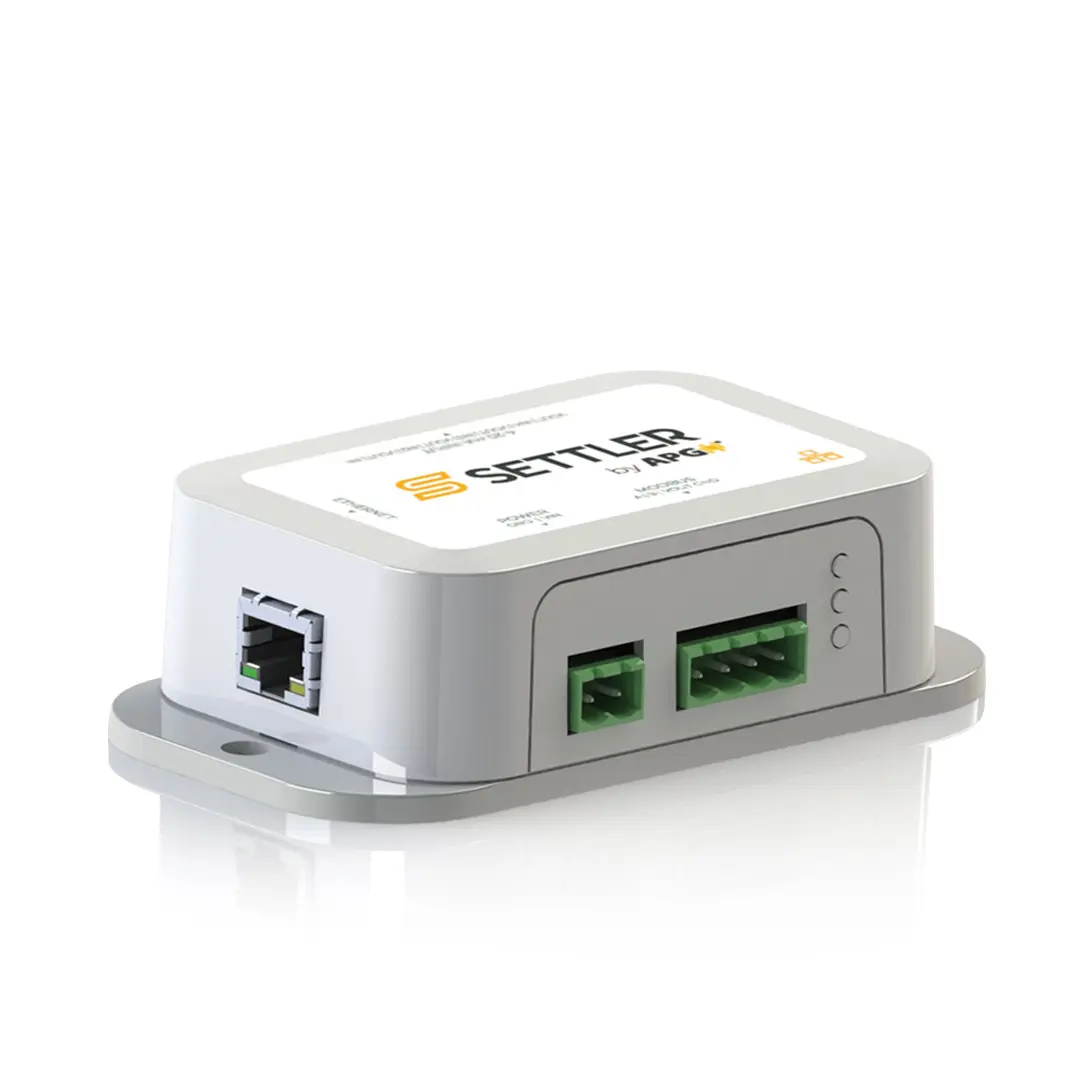

With Ethernet connectivity for a stable network connection and a compact design, Settler is built for industrial environments and remote sites. Its easy setup and global compatibility make it an ideal solution for a wide range of monitoring applications.

Intuitive Web Interface

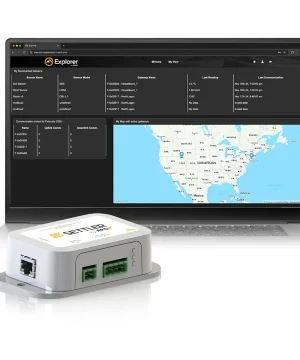

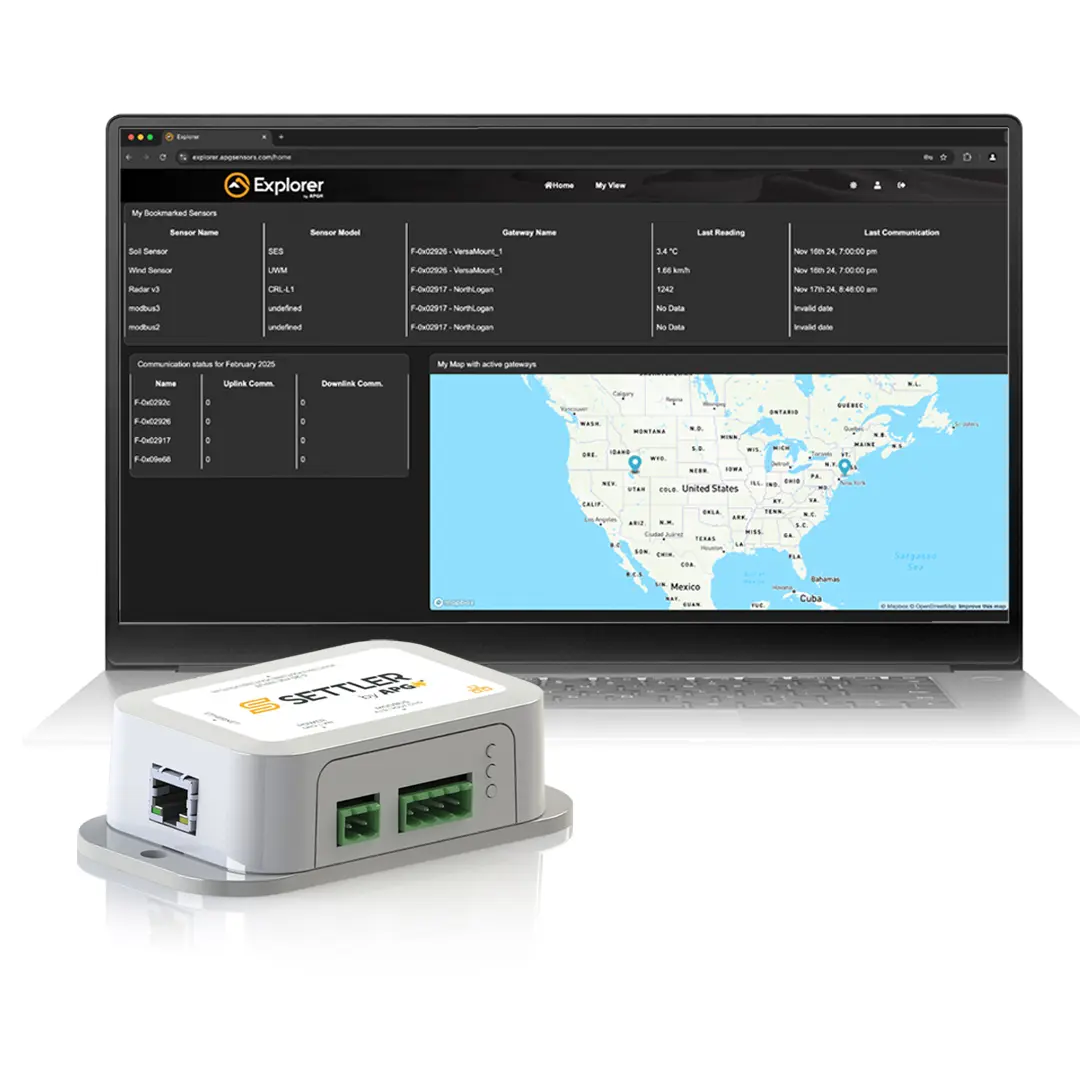

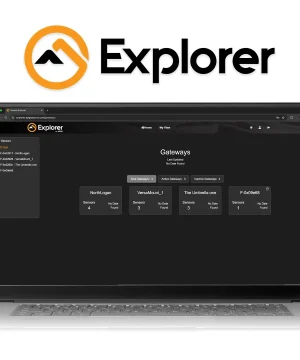

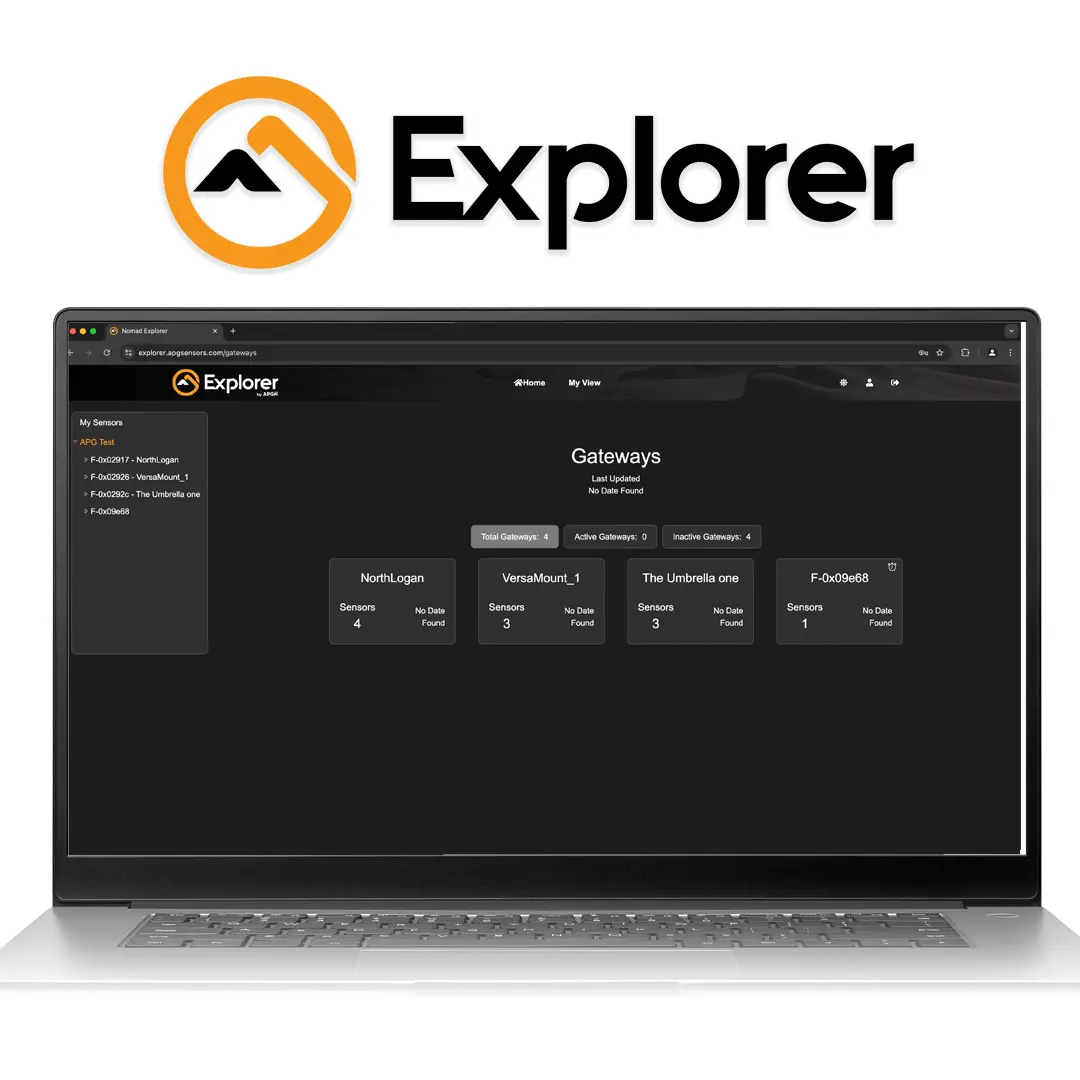

Settler connects to the online monitoring portal, Explorer—a powerful tool for remotely monitoring levels no matter the distance. The site offers data logging, email and text (SMS) alarms, and more, all in an intuitive, easy-to-use package. To sign-up or login to Explorer visit https://explorer.apgsensors.com

Instant Insights: Real-time data acquisition via 4-20 mA and Modbus RS485 inputs
Secure & Encrypted: Secure communication with MQTT with AES (Advanced Encryption Standard)
Steady Connections: Ethernet support for reliable network connectivity
Built for Industry: Compact and versatile design suitable for industrial environments
Remote Ready: OTA (Over-the-Air) updates for remote firmware management

Description
Additional information

Settler Datasheet

Explorer Browser

Settler User Manual

Settler Install Guide

Explorer User Manual

Environmental

Operating Temperature: -20° to 85°C (-4° to 185°F)
Humidity: 5% to 95% non-condensing
Environmental Protection: IP40

Electrical

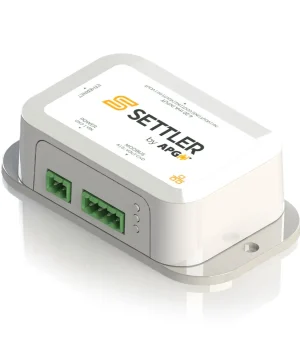

Power Supply:
- 5 to 32 VDC
- 10 mA at 24V

Connectivity

Input/Output:
- Modbus RS485 input
- 4x 4-20 mA analog inputs (active loop power provided)
Protocols & Security:
- MQTT with AES encryption (End-to-End)
- Over-the-Air (OTA) Firmware Updates: Enabled

Physical

External Dimensions:
- Length: 124.3 mm
- Height: 35.0 mm
- Depth: 67.3 mm
Mounting Option: Flanges allowing DIN rail mounting

How does Settler transmit data securely?

Settler uses MQTT with AES encryption to securely send data to APG’s cloud-based Explorer platform, ensuring reliable and protected communication.

Does Settler only work with APG sensors?

No, Settler is compatible with any 4-20 mA or Modbus RS485 sensor, not just APG sensors. It can connect to a wide range of industrial sensors, making it a flexible solution for various monitoring applications.

Does my sensor need external power when using Settler?

No, external power is not needed. Settler supplies power to the sensors using whatever voltage you provide. It supports a wide DC voltage range from 5V to 32V. If your sensor requires 24V, simply supply 24V to Settler, and it will handle the rest!

How easy is it to configure Settler?

Very easy! Explorer includes a wizard that makes configuring your Settler a breeze. Simply follow the step-by-step guide to set up reading registers, alarms, notifications, and more with ease! Navigate to the “Explorer User Manual” under “Product Documentation” for further instruction.

How do I monitor my sensors with Settler?

To monitor your sensors with Settler, you’ll need an Explorer account. Settler securely transmits sensor data to Explorer, APG’s cloud-based platform, where you can view real-time readings, set alarms, and manage your sensors remotely. Without Explorer, the data from Settler would not be accessible for monitoring or analysis.

MOUNT	Din Rail, Flange
OUTPUT	4-20 mA, Modbus, Remote Monitoring
RANGE	1' – 15', 1' – 50', 16' – 30', 31' – 50'
INPUT	4-20 mA, Modbus
INDUSTRY	Carwash Automation, Chemical, Food & Beverage, Industrial Automation, Marine, Oil & Gas, Water & Wastewater
ENCLOSURE PROTECTION	IP40
