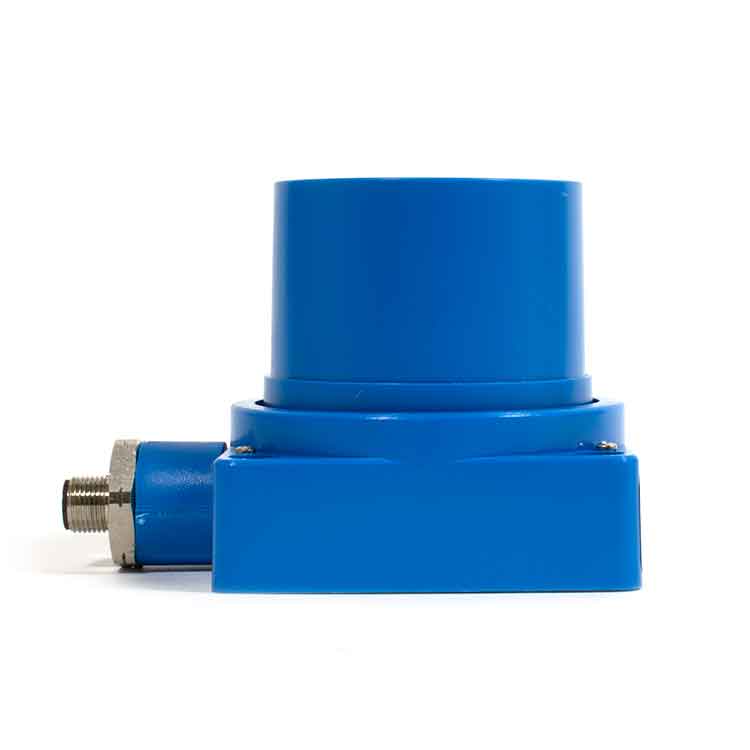

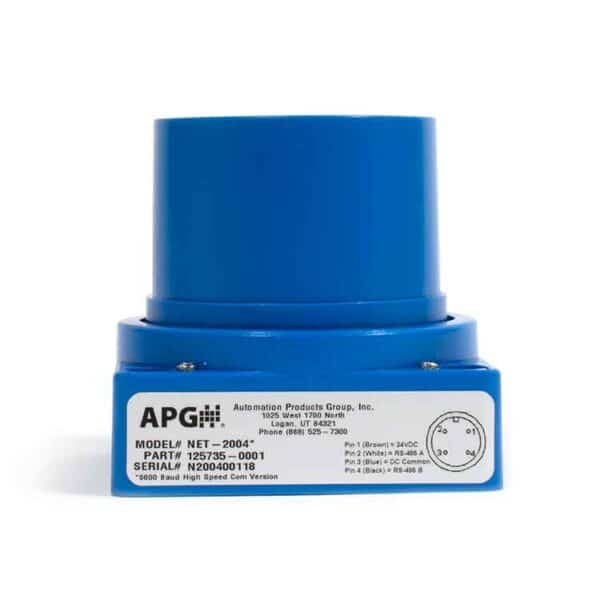

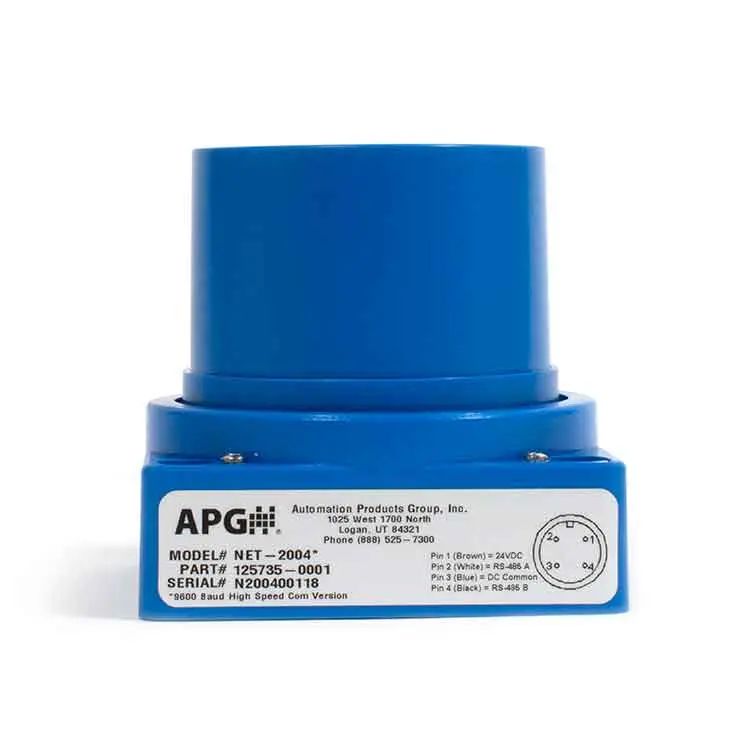

Object Detection Ultrasonic Sensor

IRU-2000

DESCRIPTION
Features

Designed For Detecting Solids And Moving Objects

The IRU-2000 Object Detection Ultrasonic Sensor is designed for absence/presence detection, object profiling, and more. With a surface mount design, it easily installs on walls, ceilings, and flat surfaces. The ultrasonic transducers offer reliable solid and moving object detection across multiple industrial applications.

Versatile Programming Options: Customizable to suit a variety of detection needs.
Surface Mount Design: Eliminates the need for threaded fittings, ensuring quick installation.
Multiple Output Options: Choose from solid-state relay, 4-20mA, and RS-485 with NPN trip points.
Wide Detection Range: Up to 25 ft. for liquids and solids, 10 ft. for bulk solids with high accuracy (±0.25%).
Durable Construction: Built with ABS housing and UV inhibitors, rated NEMA 4X for environmental protection.

Description
Additional information

IRU-2000 Datasheet

RST-3002 Software Download

IRU-2000 User Manual

IRU-2000 Install Guide

RST-3001 Software Download

Performance

Operating Range:
- 1 – 25 ft. (0.3 – 7.6 m) for liquids & solid targets
- 1 – 10 ft. (0.3 – 3.0 m) for bulk solids
Beam Pattern: 9º off axis
Internal Temperature Compensation: Yes
Frequency: 69 kHz
Accuracy: ±0.25% of detected range
Resolution: 0.1 in. (2.5 mm)
Response Time: Programmable (55 ms minimum @ 25 ft.)

Environmental

Enclosure Protection: NEMA 4X
Operating/Compensated Temperature Range: -20° to 140°F (-30 to 60°C)

Electrical

Total Current Draw: 80 mA @ 24 VDC
Operational Supply Voltage: 12-28 VDC
Programming Supply Voltage:
- RST-3002: 15-28 VDC
- RS-485: 12-28 VDC
Wiring Connection:
- 6-conductor shielded cable
- 5-pin micro connector
- 6-pin terminal strip

Programming

Interface with RST-3002 Programmer (purchase separately)
- Interfaces with 32- and 64-bit operating systems
User selected units of measure

Connectivity

Output:
- (1) Solid State Relay
- Isolated 4-20 mA
- RS-485 with (1) NPN trip point
- 4-20 mA with (2) NPN trip points*

*Note: Contact factory for other output options.

Physical

ABS with UV inhibitor upper housing
ABS with UV inhibitor transducer housing
Transducer Type: Ceramic, ABS-faced

Certifications

CSA:
- Inputs: 12 – 28 VDC; Outputs: 4-20 mA, NPN
- General Purpose

How does the IRU-2000 ultrasonic sensor work?

The IRU-2000 uses ultrasonic transducers to emit sound waves that bounce off objects. By measuring the time it takes for the sound waves to return, the sensor determines the presence, absence, or distance of an object.

What are the available output options?

The IRU-2000 series offers multiple output configurations:

IRU-2002: Solid-state relay output
IRU-2003: Isolated 4-20mA output
IRU-2004: RS-485 with 1 NPN trip point

Can the sensor be used outdoors?

Yes. The IRU-2000 features a NEMA 4X-rated ABS housing with UV inhibitors, making it durable for outdoor and harsh industrial environments.

How is the sensor mounted?

The IRU-2000 is designed for surface mounting, which eliminates the need for threaded fittings and allows for easy installation on walls, ceilings, or flat surfaces.

What cable length does the sensor include?

Each model comes standard with a 6-foot cable for easy installation and connectivity.

OUTPUT	1 Relay, 4-20 mA, Isolated 4-20 mA, Modbus
MOUNT	Surface Mount
RANGE	1' – 15', 1' – 25'
ENCLOSURE PROTECTION	NEMA 4X
INDUSTRY	Carwash Automation, Chemical, Food & Beverage, Industrial Automation, Marine, Oil & Gas, Water & Wastewater
CERTIFICATION	CSA – General
