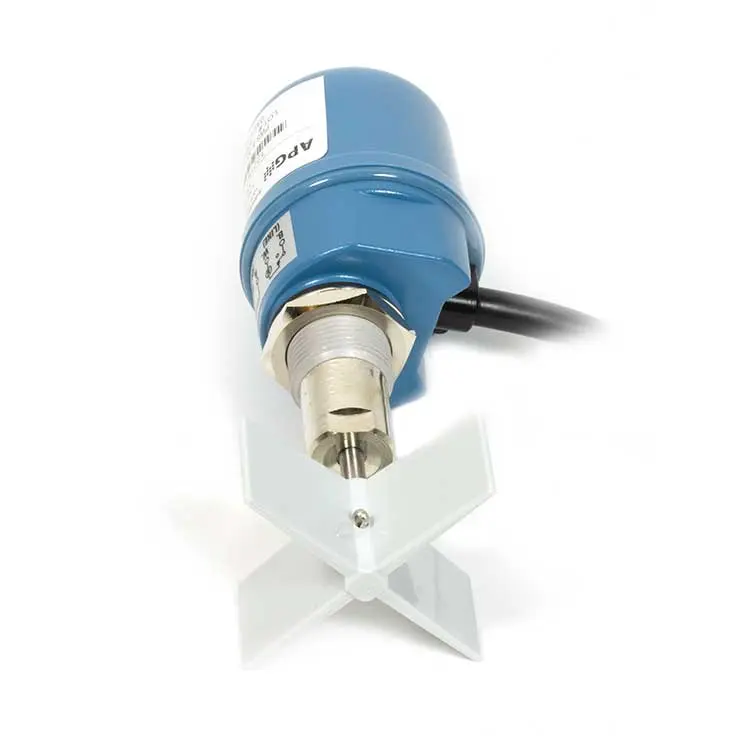

Paddle Wheel Switch
Mini Level Paddle Wheel Switch - Image 2
Mini Level Paddle Wheel Switch - Image 3
Mini Level Paddle Wheel Switch - Image 4
Mini Level Paddle Wheel Switch - Image 5
Mini Level Paddle Wheel Switch - Image 6
Paddle Wheel Switch

Mini Level Paddle Wheel Switch

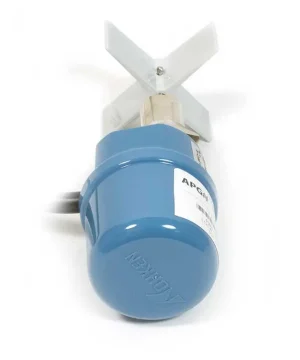

PWS

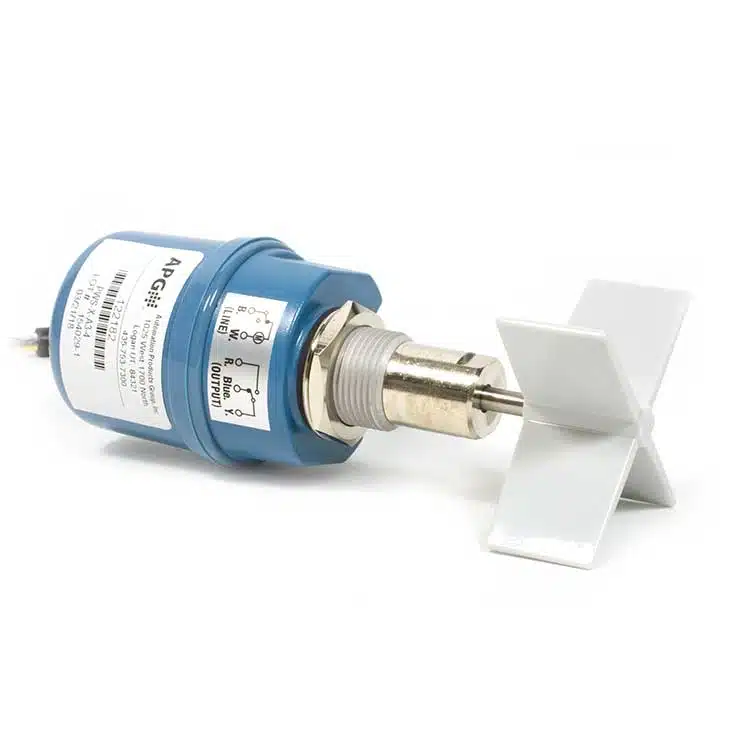

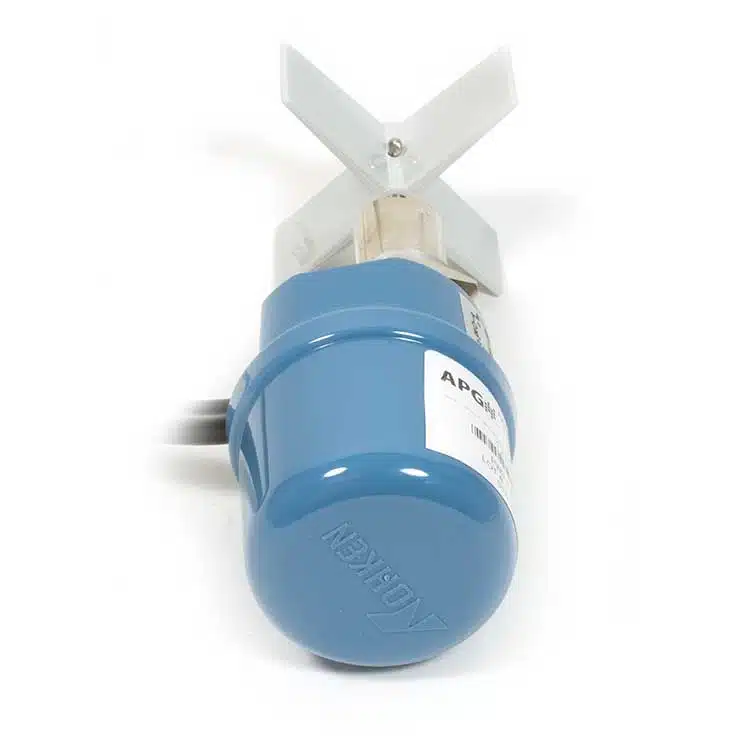

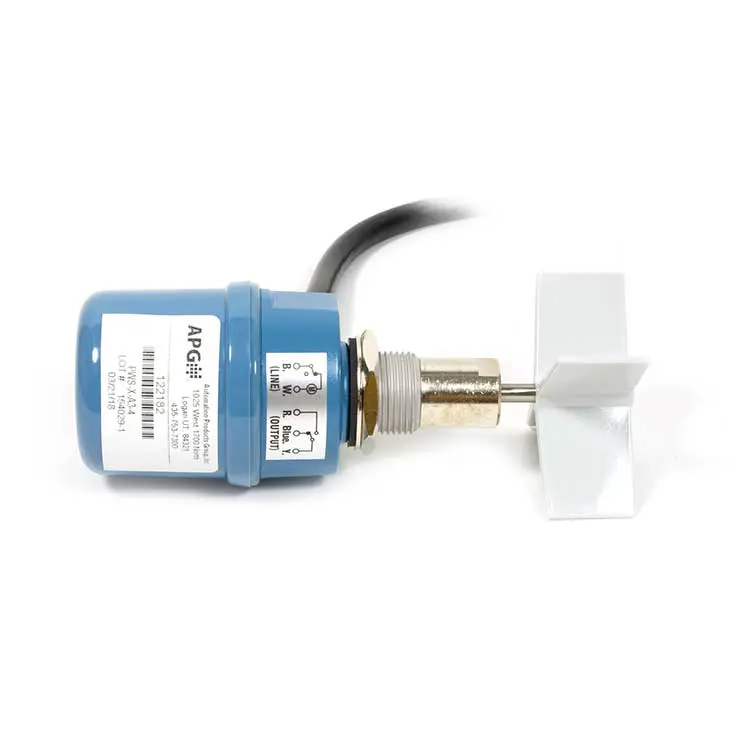

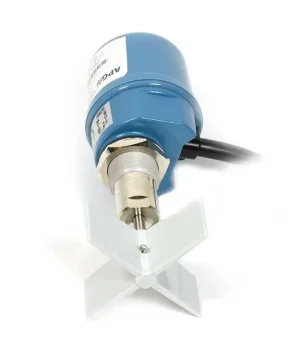

Mini Level Paddle Wheel Switch

The Mini Level Paddle Wheel Switch (PWS) is designed for precise level sensing in small bins and hoppers. With a compact size, it fits easily in tight spaces, making it ideal for confined areas. The PWS features four adjustable torque settings, allowing you to tailor the sensitivity for different applications. Its rugged construction ensures reliable operation in harsh environments, while its low cost design and easy repair process make it a budget-friendly solution. Available in multiple configurations, the PWS is perfect for industries requiring precise, cost-effective level control.

  • Space-Saving Solution: Miniature Size for Compact Applications
  • Easy Customization: Simple Torque Adjustment for Precise Control
  • Proven Reliability: Durable Design for Long-Term Performance
  • Budget-Friendly: Cost-Effective Without Compromising Quality

ⓘ
  • 1 SPDT switch
  • 4 torque settings
  • Ratings: IP65, IP40
  • Operating Temp:
    • 14º – 128ºF (-30º – 53ºC) or
    • 14º – 248ºF (-10º – 120ºC)
  • Output Contact Rating: 240 V 3 A AC; 30 V 3 A DC (resistive)
  • Housing: ADC12 and Polycarbonate or ABS
  • Mounting Section: Galvanized Brass
  • Rotating Spindle: 304 SS
  • Paddle: Polycarbonate or 304 SS
What is the Mini Level Paddle Wheel Switch (PWS) used for?

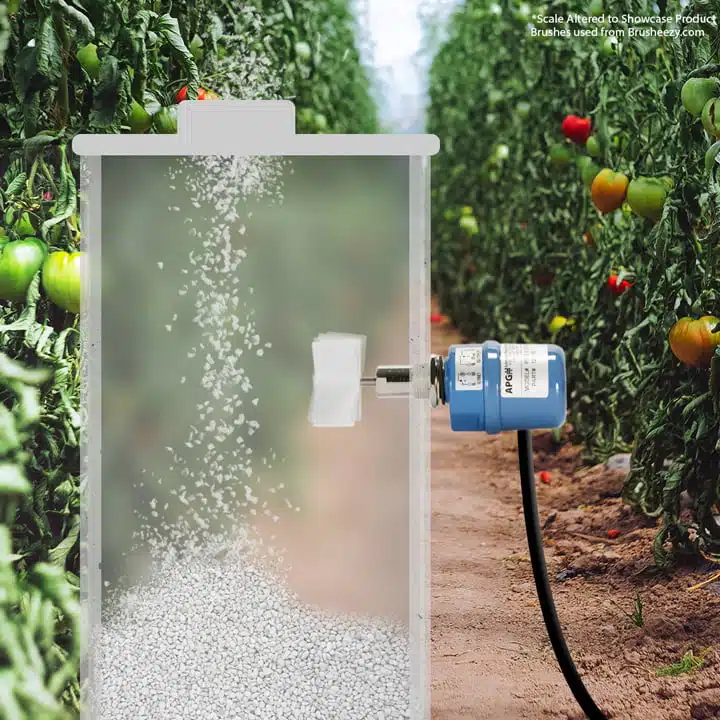

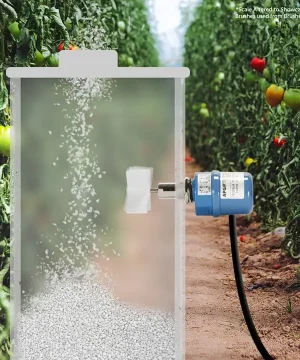

The PWS is designed for precise level sensing in small bins and hoppers. It is ideal for applications requiring a compact, adjustable, and cost-effective solution for monitoring material levels.

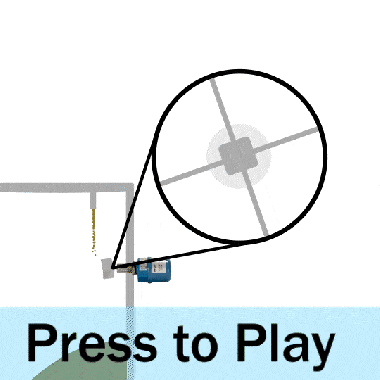

The PWS uses a rotating paddle to detect material levels. When the paddle encounters resistance from stored material, it stops rotating, triggering an electrical signal to indicate the level status.

The PWS features four adjustable torque settings, allowing you to customize the sensitivity based on material density and application needs. This makes it versatile for various industries.

The PWS is rated for indoor use and is available in IP40 and IP65 configurations, providing different levels of protection against dust and moisture.

The detection range depends on the material being monitored and the selected torque setting. The adjustable sensitivity allows for customization based on application needs.

SWITCH TYPE

Minature
ENCLOSURE PROTECTION

IP40, IP65
OUTPUT

Voltage
INDUSTRY

Industrial Automation

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.

RETURNS

Returns and allowances must be authorized by APG in advance, which authorization may be granted or withheld by APG in APG’s sole and absolute discretion. Read our full return policy HERE.
