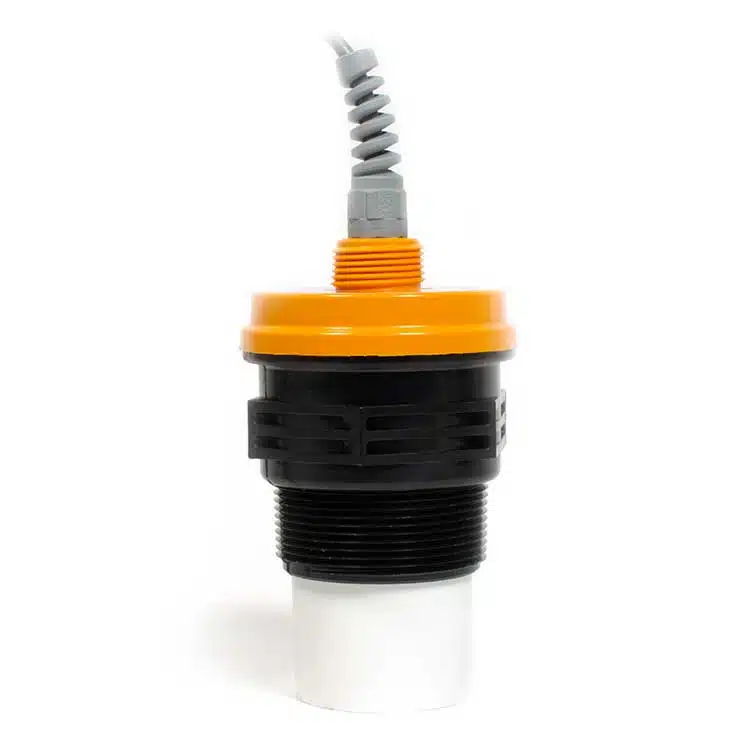

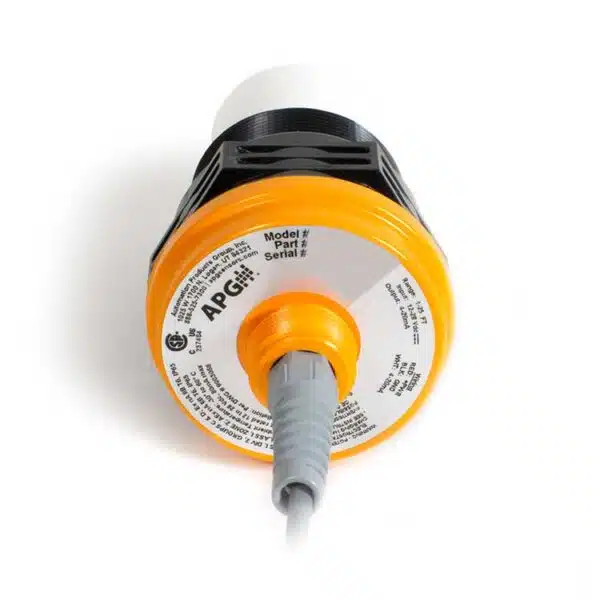

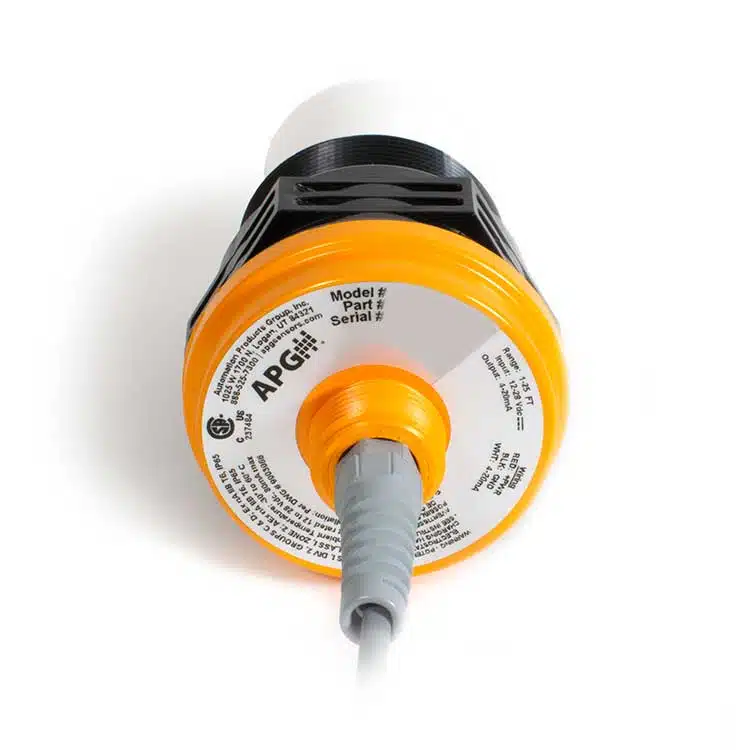

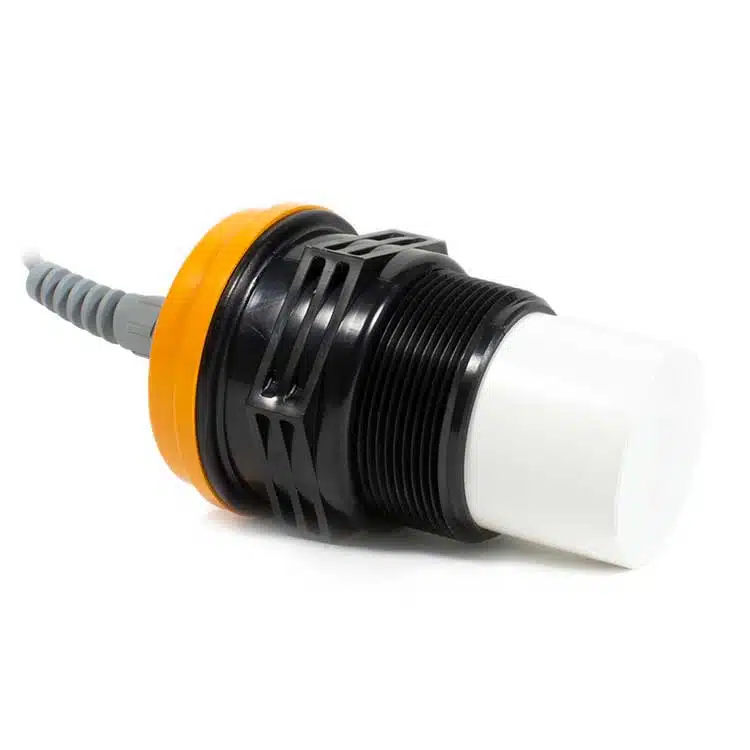

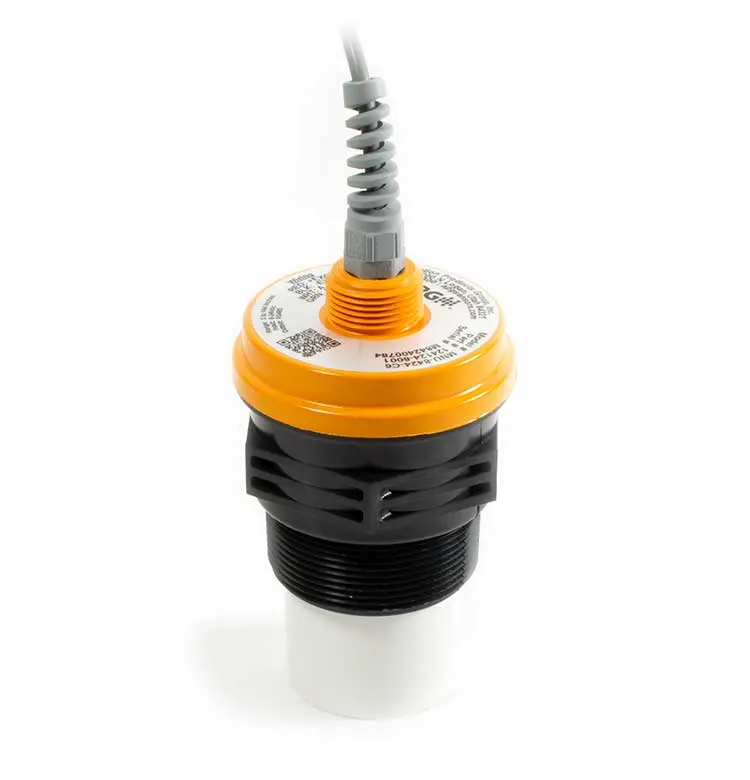

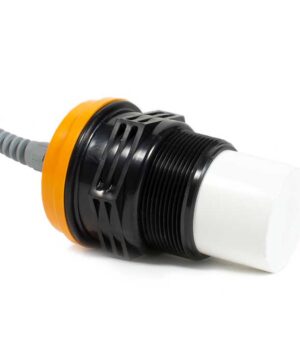

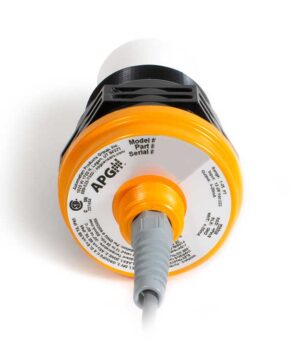

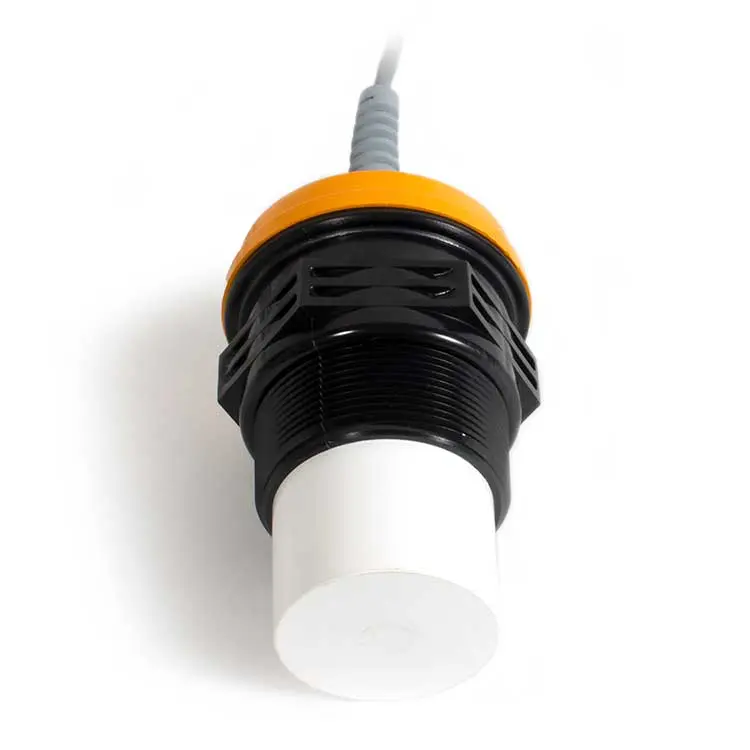

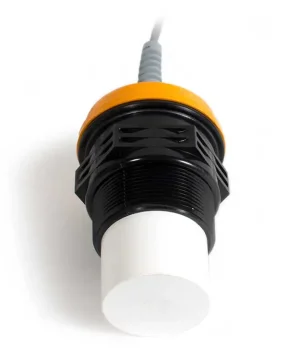

Mid Range Ultrasonic Level Sensor With Data Logging: 30 Feet

IRU-6429

DESCRIPTION
Features

Excitation for Data Logging

The IRU-6429 Ultrasonic Level Sensor offers accurate, real-time level measurement with built-in data logging capabilities. Featuring autosense software, this sensor enables quick and easy programming. Designed for tank monitoring and water/wastewater applications, it delivers a high-accuracy measurement of ±0.25% of the detected range.

This mid-range ultrasonic level sensor provides flexible output options, allowing users to select 0-2.5V or 0-5V during setup. With an operating range of 1 to 30 feet, it ensures precise level measurement in diverse environments. Built with a durable polycarbonate/PET housing, it withstands harsh conditions and features internal temperature compensation for reliable performance.

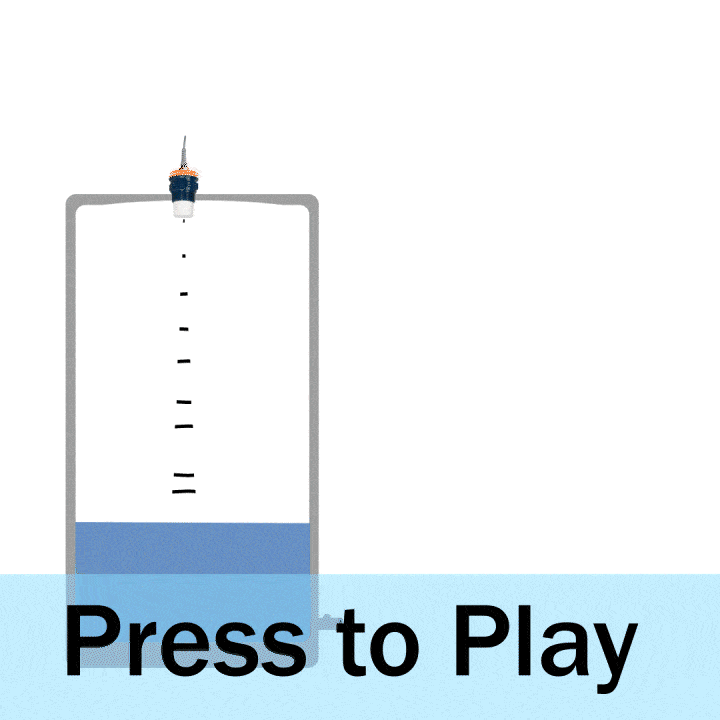

Long-term monitoring: Excitation for data logging for long-term level monitoring
Selectable output options: 0-2.5V or 0-5V
High accuracy: ±0.25% of detected range
Fast response time: Up to 50Hz (once every 20ms)
Durable construction: Polycarbonate/PET housing with IP65 protection rating
Wide operating temperature range: -20°F to 140°F
Certified for safety: CSA General Purpose Certification for safe industrial use

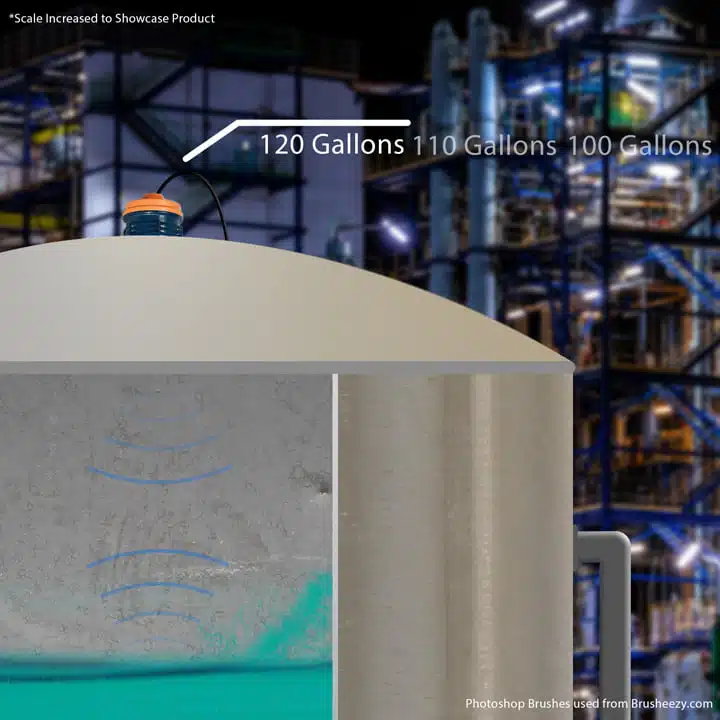

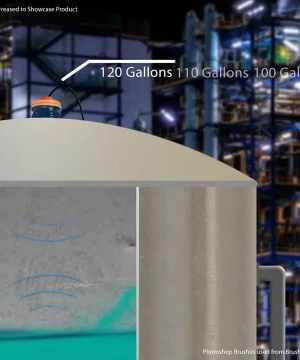

Ideal applications: Tank monitoring and water/wastewater systems

Description
Additional information

IRU-6429
Datasheet

RST-3002
Software Download

IRU-6429
User Manual

IRU-6429
Install Guide

RST-3001 Software
Download [Legacy]

Performance

Operating Range:
- 1 – 30 ft. (0.3 – 9.1 m) for liquid and solid targets
- 1 – 15 ft. (0.3 – 4.6 m) for bulk solids
Beam Pattern: 9º off axis
Internal Temperature Compensation: Yes
Frequency: 69 kHz
Accuracy: ±0.25% of detected range
Resolution: 0.1 in. (2.5 mm)
Response Time: Programmable (64 ms minimum @ 30 ft.)

Environmental

Enclosure Protection: IP65
Operating/Compensated Temperature Range: -20° to 140°F (-30° to 60°C)

Electrical

Total Current Draw: 75 mA @ 24 VDC
Operational Supply Voltage: 12-28 VDC
Excitation Supply Voltage: 5 VDC minimum
Programming Supply Voltage:
- RST-3002: 15-28 VDC
- RS-232: 15-28 VDC
Wiring Connection:
- 5 or 8-conductor shielded cable
- 5 or 8-pin micro connector

Programming

Interface with RST-3002 Programmer (purchase separately – not needed for “S” option)
- Interfaces with 32- and 64-bit operating
  systems
User selected units of measure

Connectivity

Output:
- 0-2.5 V/0-5 V (selectable via software)
- RS-232 option
Excitation Input For Datalogging: Yes

Physical

PC/PET upper housing
PVDF transducer housing
Transducer Type: Ceramic

Certifications

CSA General Purpose
IP65

What applications is the IRU-6429 sensor suitable for?

The IRU-65429 is ideal for tank monitoring and water/wastewater applications.

What is the operating temperature range for the IRU-6429 sensor?

The IRU-6429 sensor operates effectively between -40°F to 140°F.

What is the response time of the IRU-6429 sensor?

The IRU-6429 sensor has a fast response time of up to 50 Hz.

How accurate is the IRU-6429 sensor?

The IRU-6429 offers an accuracy of ±0.25% of the detected range.

OUTPUT	Voltage
MOUNT	2", 3/4"
RANGE	1' – 15', 1' – 25', 1' – 30', 16' – 30'
CERTIFICATION	CSA – General
ENCLOSURE PROTECTION	IP65
INDUSTRY	Chemical, Food & Beverage, Industrial Automation, Marine, Oil & Gas, Water & Wastewater
