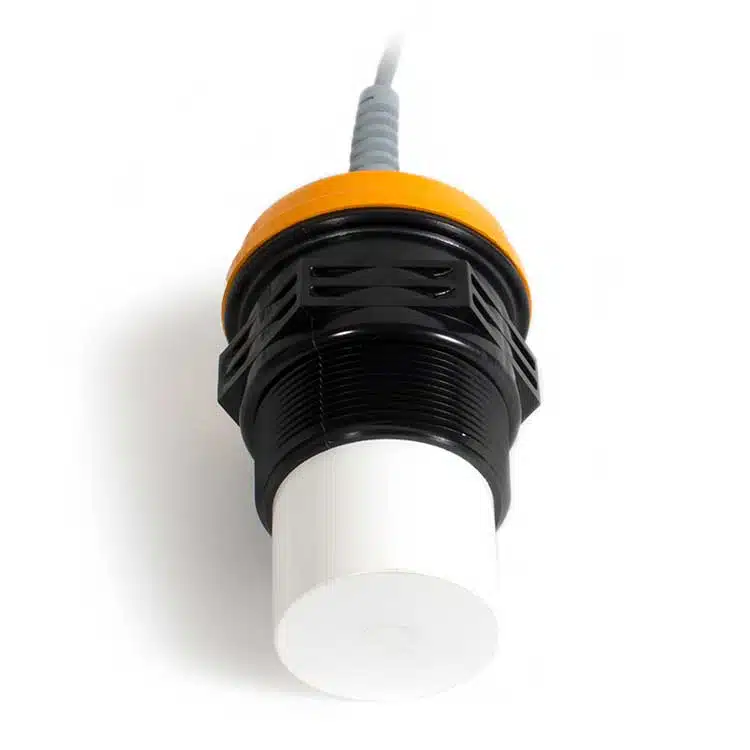

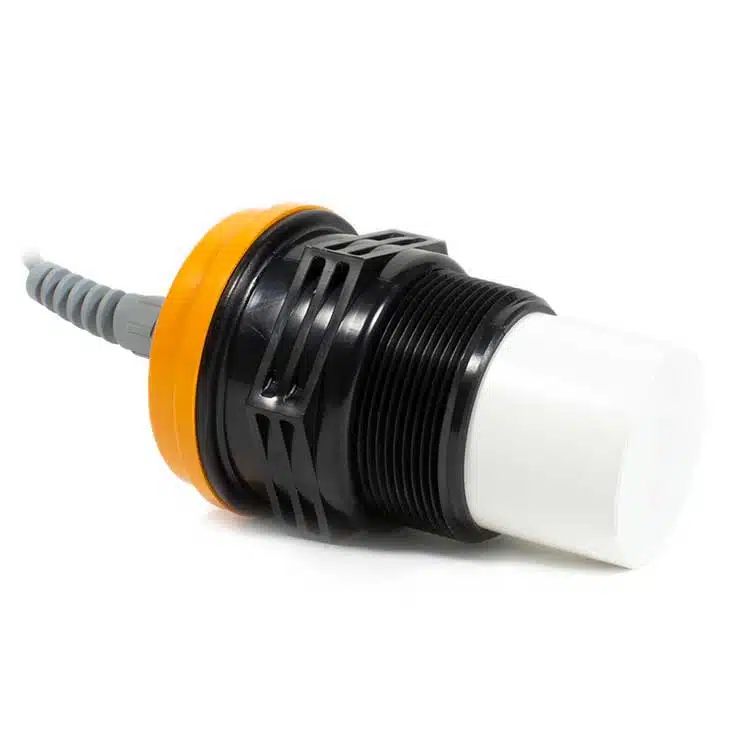

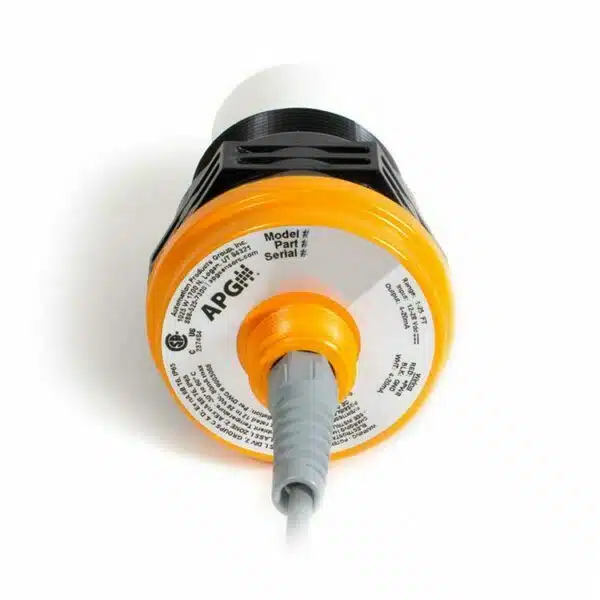

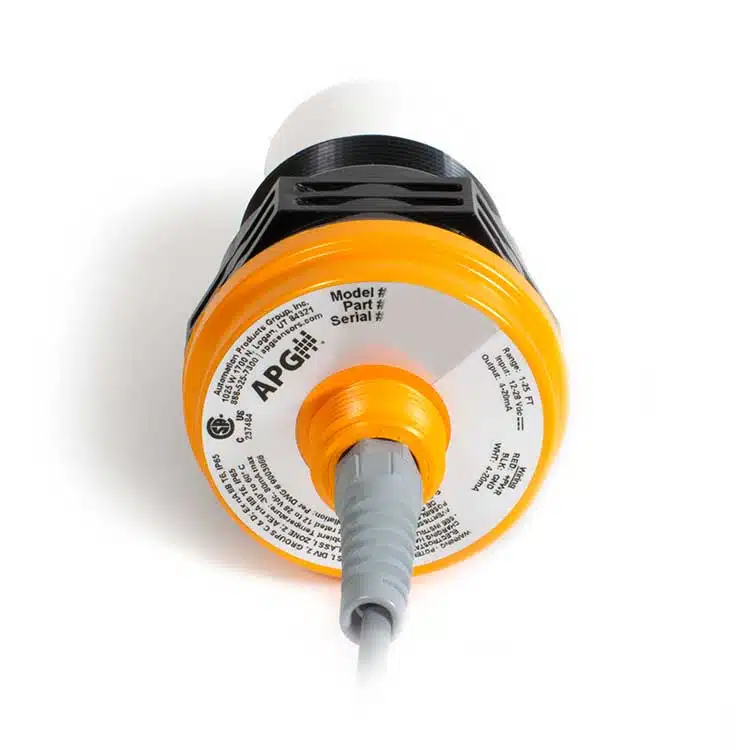

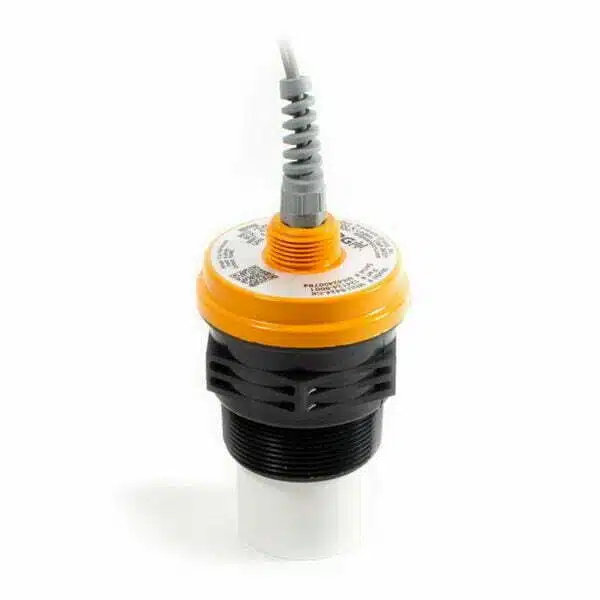

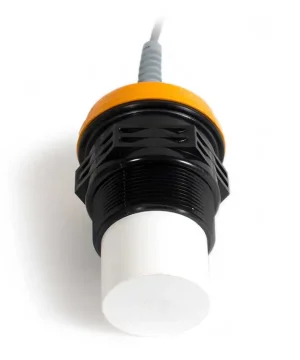

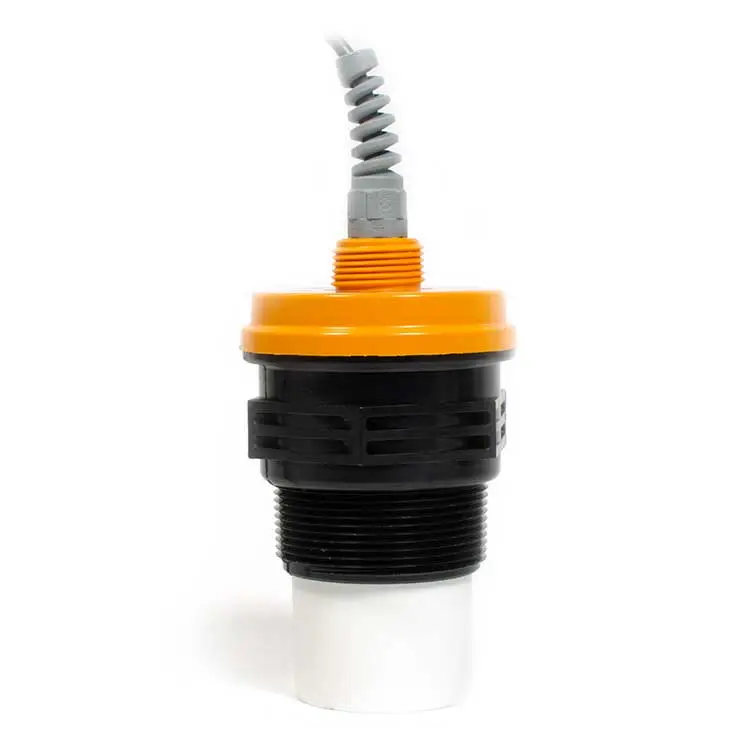

Mid Range Ultrasonic Level Sensor: 25 Feet

IRU-2420

DESCRIPTION
Features

Versatile Mid Range Ultrasonic Level Sensor

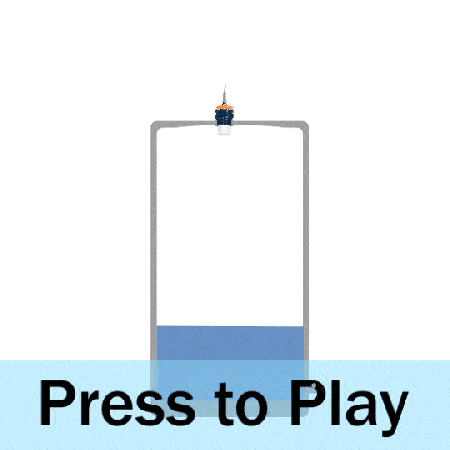

The IRU-2420 Mid-Range Ultrasonic Level Sensor offers precise level measurement up to 25 feet, making it ideal for tank monitoring, water and wastewater applications, and more. Designed for hazardous locations (CSA Class 1, Div. 2), this sensor features AutoSense software for quick and easy programming. With a 2-inch NPT fitting, 4-20mA output, and IP65 protection rating, the IRU-2420 delivers reliable performance in demanding environments. Its fast response time (up to 50 Hz) and internal temperature compensation ensure accuracy and efficiency in level sensing applications.

Extended measurement range: 25 ft. ultrasonic level measurement range
Easy to install: AutoSense software for simple setup
Certified for hazardous locations: CSA Class 1, Div. 2 hazardous location certification
Flexible mounting options: 2-inch NPT and ¾-inch NPT mounting options
Precise control: 4-20mA output with 2 NPN trip points
Fast response time: Up to 50 Hz
Built to last: IP65 protection for durability
Accurate readings: Internal temperature compensation
Seamless connectivity: Compatible with RST-5003 for internet connectivity

Description
Additional information

IR-2420 Datasheet

RST-3002 Software Download

IRU-2420 User Manual

IRU-2420 Install Guide

RST-3001 Software Download

Performance

Operating Range:
- 1 – 25 ft. (0.3 – 7.6 m) for liquid or solid targets
- 1 – 10 ft. (0.3 – 3.0 m) for bulk solids
Beam Pattern: 9º off axis
Internal Temperature Compensation: Yes
Frequency: 69 kHz
Accuracy: ±0.25% of detected range
Resolution: 0.1 in. (2.5 mm)
Response Time: Programmable (55 ms minimum
@ 25 ft.)

Environmental

Enclosure Protection: IP65
Operating/Compensated Temperature Range: -20° to 140°F (-30° to 60°C)

Electrical

Total Current Draw: 75 mA @ 24 VDC
Operational Supply Voltage: 12-28 VDC
Programming Supply Voltage: 15-28 VDC
Wiring Connection:
- 3 or 5-conductor shielded cable
- 4 or 5-pin micro connector

Programming

Interface with RST-3002 Programmer (purchase separately)
- Interfaces with 32- and 64-bit operating
  systems
User selected units of measure

Connectivity

Output:
- 4-20 mA
- 4-20 mA with (2) NPN outputs

Physical

PC/PET upper housing
PVDF transducer housing
Transducer Type: Ceramic

Certifications

IP65
CSA:
- Inputs: 12 – 28 VDC; Outputs: 4-20 mA, NPN
- Class I Division 2 Groups C & D T6 (Ta 60°C)
- Ex nA IIB T6
- Class I, Zone 2; AEx nA IIB T6

What applications is this sensor best suited for?

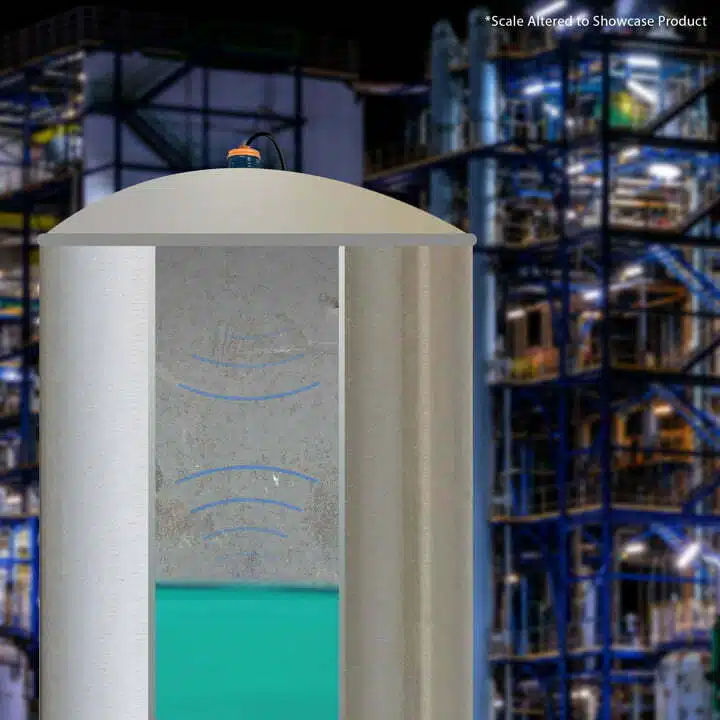

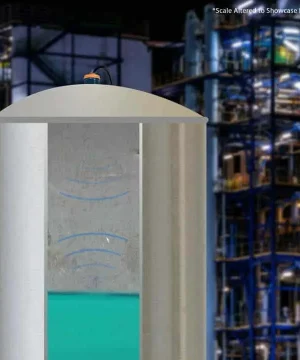

This sensor is ideal for tank level monitoring, water and wastewater management, industrial process control, and chemical storage tanks.

How easy is it to set up and configure?

The IRU-2420 includes AutoSense software, which simplifies programming and setup for quick installation.

What are the mounting options?

It supports 2-inch NPT and ¾-inch NPT fittings, allowing for versatile installation.

Does the IRU-2420 compensate for temperature changes?

Yes, it has internal temperature compensation to ensure accurate readings in varying environmental conditions.

Is the IRU-2420 weather-resistant?

Yes, it has an IP65 protection rating, meaning it is dust-tight and protected against low-pressure water jets.

OUTPUT	4-20 mA
MOUNT	2", 3/4"
RANGE	1' – 15', 1' – 25'
CERTIFICATION	CSA – General
ENCLOSURE PROTECTION	IP65
INDUSTRY	Chemical, Food & Beverage, Industrial Automation, Marine, Oil & Gas, Water & Wastewater
