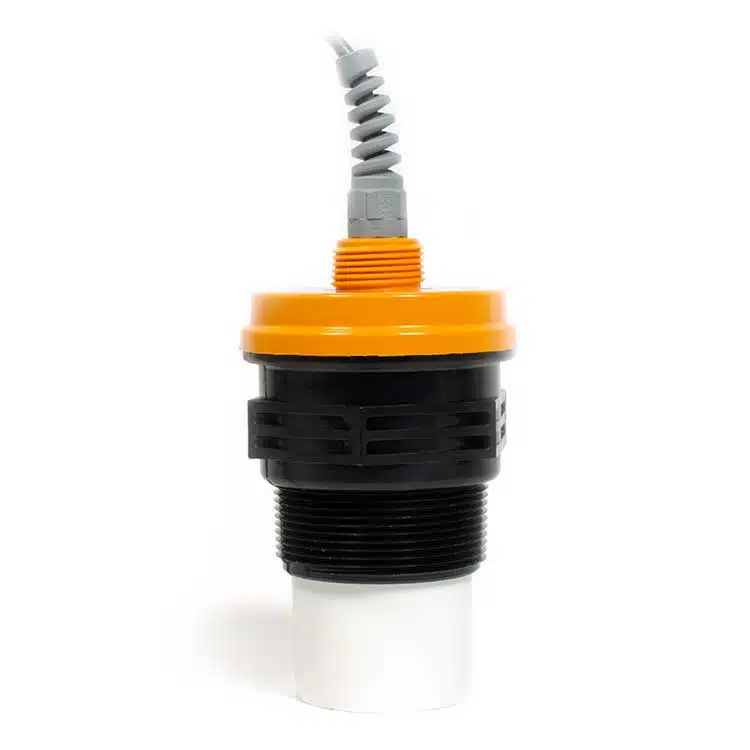

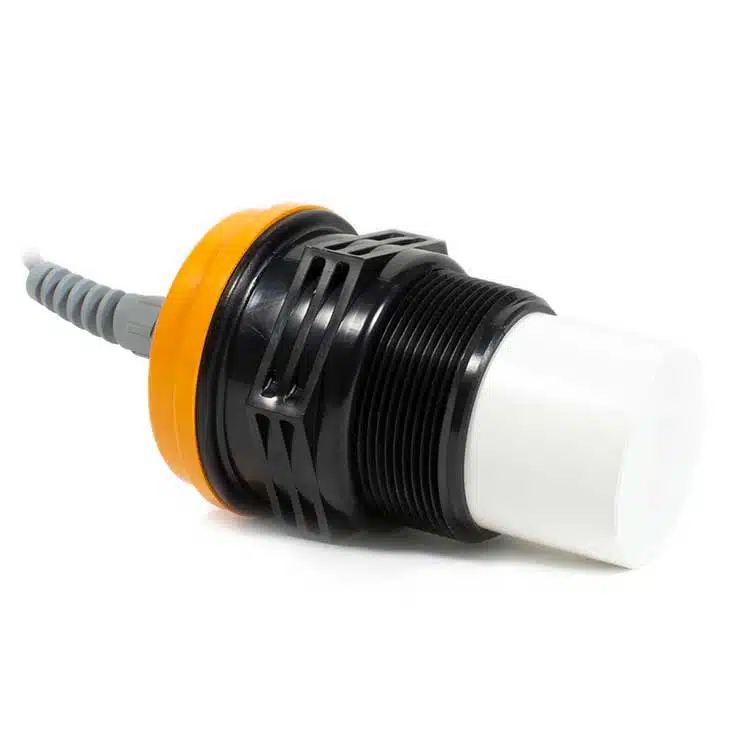

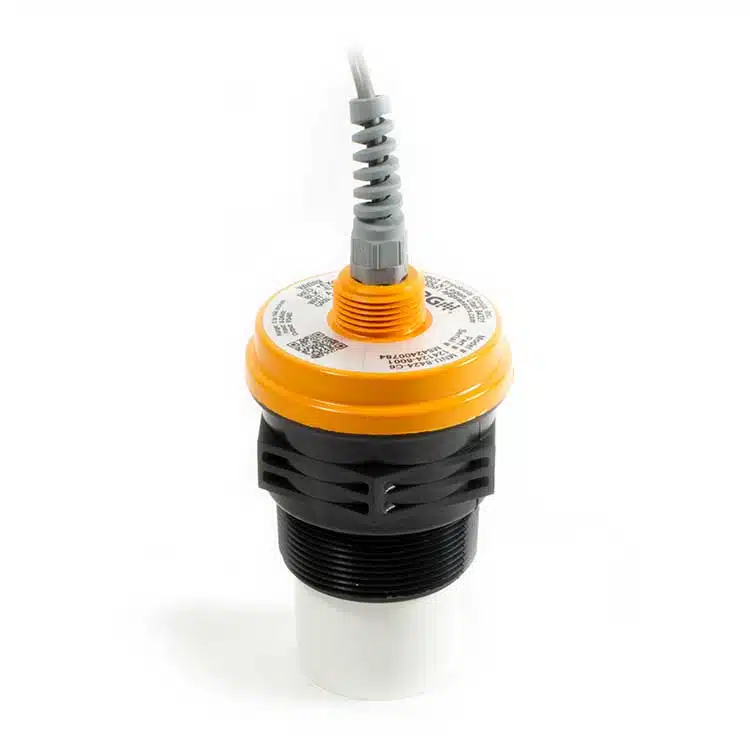

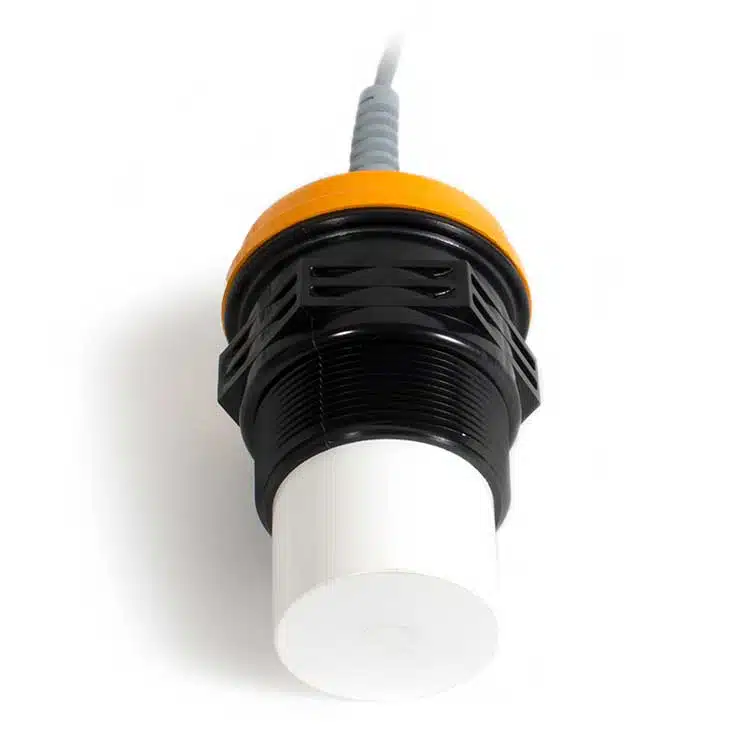

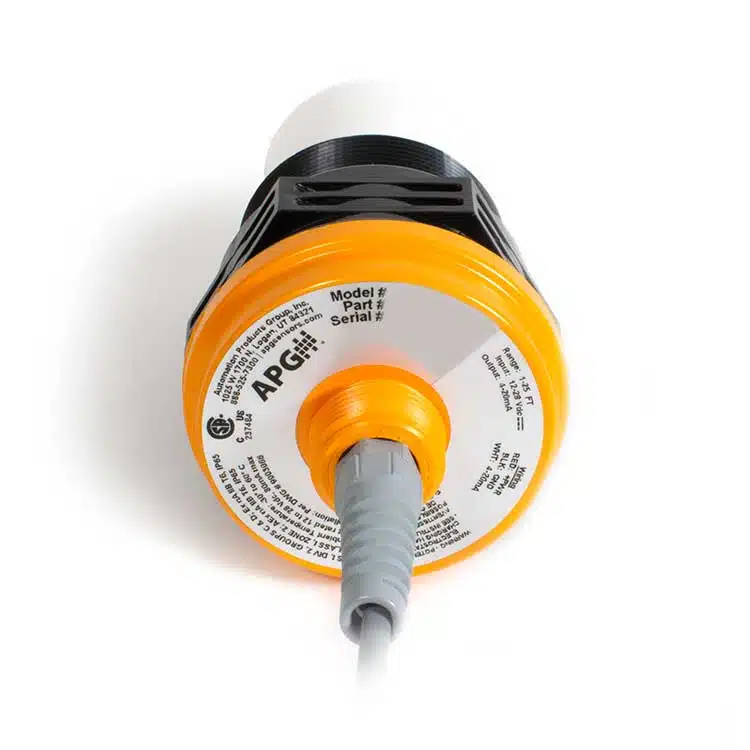

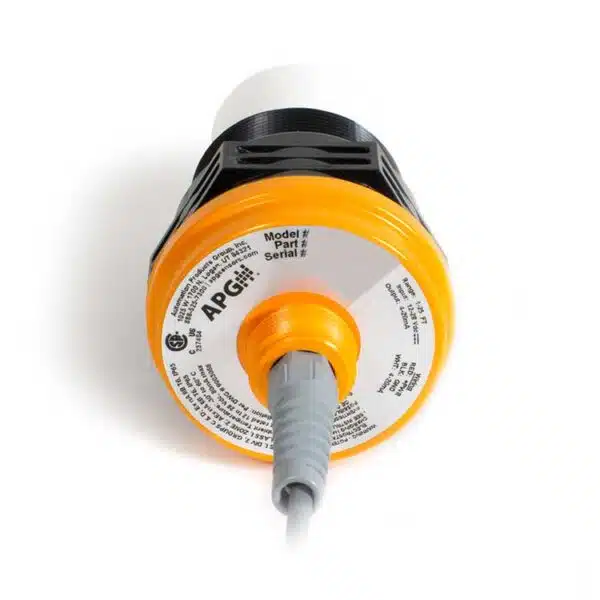

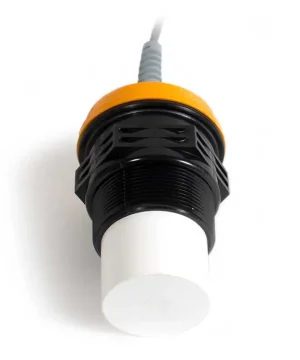

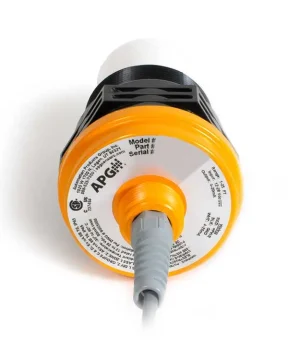

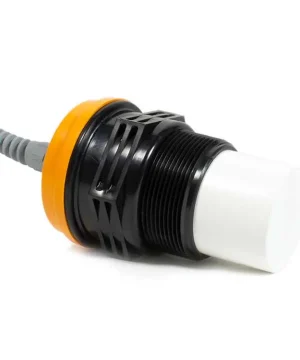

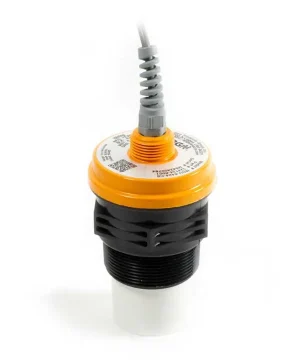

Mid Range Pump Control Ultrasonic Level Sensor

Mid Range Pump Control Ultrasonic Level Sensor - Image 2

Mid Range Pump Control Ultrasonic Level Sensor - Image 3

Mid Range Pump Control Ultrasonic Level Sensor - Image 4

Mid Range Pump Control Ultrasonic Level Sensor - Image 5

Mid Range Pump Control Ultrasonic Level Sensor - Image 6

Mid Range Pump Control Ultrasonic Level Sensor - Image 7

Mid Range Pump Control Ultrasonic Level Sensor

DST

DESCRIPTION
Features

Simple Ultrasonic Sensor

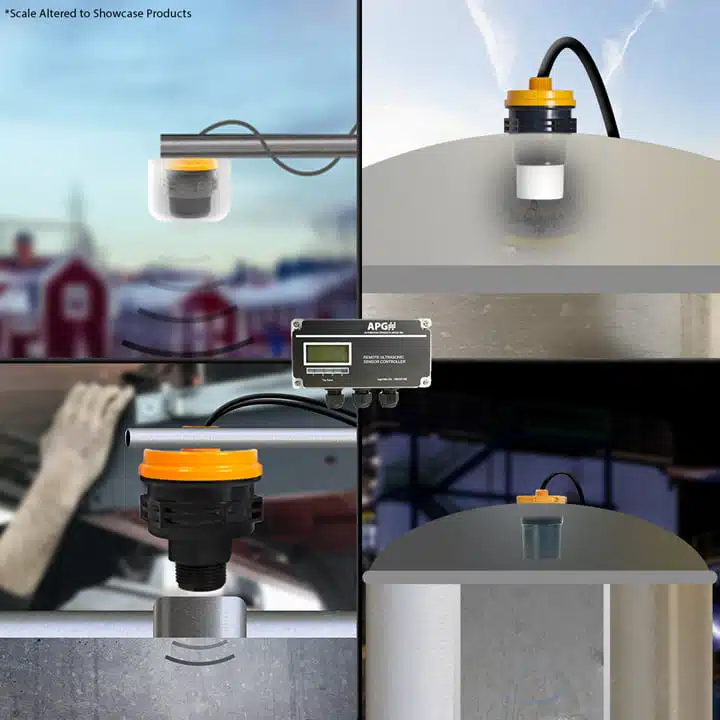

The DST ultrasonic level sensors provide an affordable and reliable solution for level-based pump control. Designed to work seamlessly with DCR controllers, these sensors create a stand-alone level measurement system ideal for large tanks and liquid storage applications.

Proven Performance
For over a decade, DST liquid level sensors paired with DCR controllers have delivered precise and efficient ultrasonic level measurement, ensuring consistent performance in various industrial applications.

Flexible & Configurable
With multiple sensor options, the DST ultrasonic sensors allow customization to meet diverse tank level monitoring and liquid level control needs.

Trusted Ultrasonic Tech: Reliable ultrasonic sensor technology
Customize with Ease: Flexible configuration options
Smart Temperature Adjustments: Internal temperature compensation for accurate readings
Built to Last: Durable housing (PC/PET blend) with NEMA 6P, NEMA 12, & IP65 ratings
Versatile Range: Operating range from 1 ft. to 50 ft., depending on model

Description
Additional information

DST Datasheet

DST Install Guide

Performance

Beam Pattern: 9º off axis
Internal Temperature Compensation: Yes
Accuracy: ±0.25% of detected range

Environmental

Ratings:
- NEMA 6P
- NEMA 12
- IP65
Operating Temperature: -22º to 140ºF (-30º to 60ºC)

Electrical

Wiring Connection: 2 conductor shielded cable
WW: Coaxial cable (requires DCR-1006A with F connection)

Programming

Interface with DCR Controller via APG Modbus Software
User selected units of measure

Connectivity

Output: DCR Controller

Physical

PC/PET Blend Body: IP67 / IP68

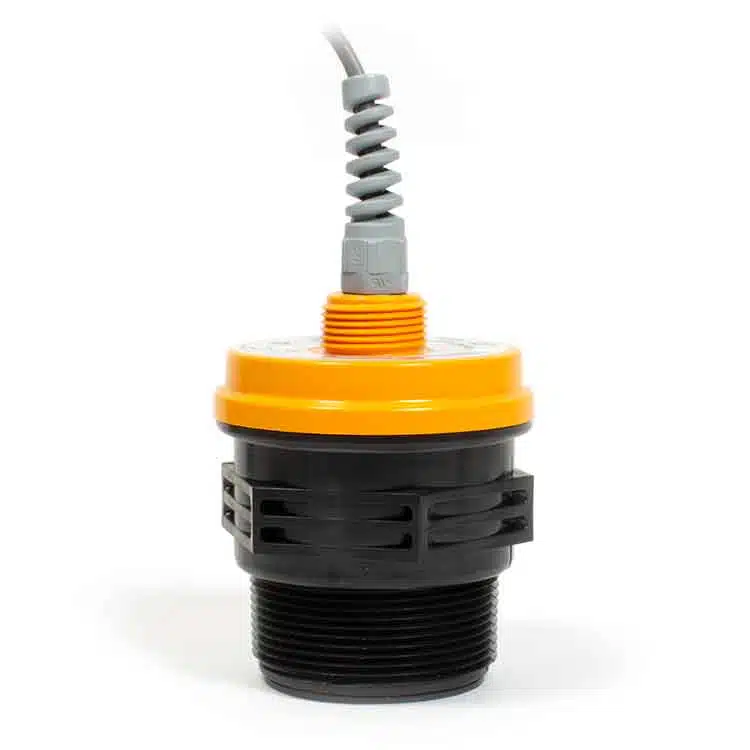

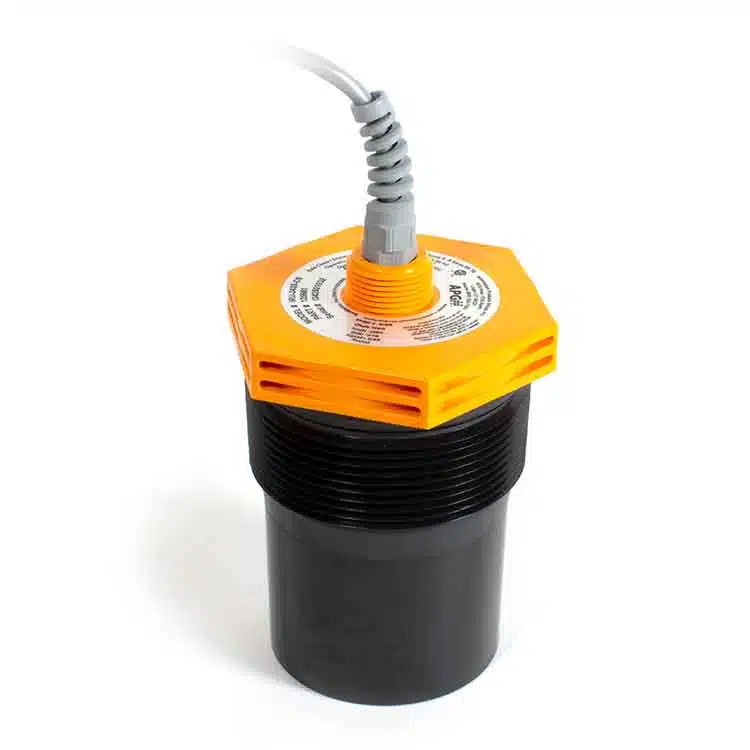

Electrostatic Transducer: DST-2421, 3431, 5111, 9421

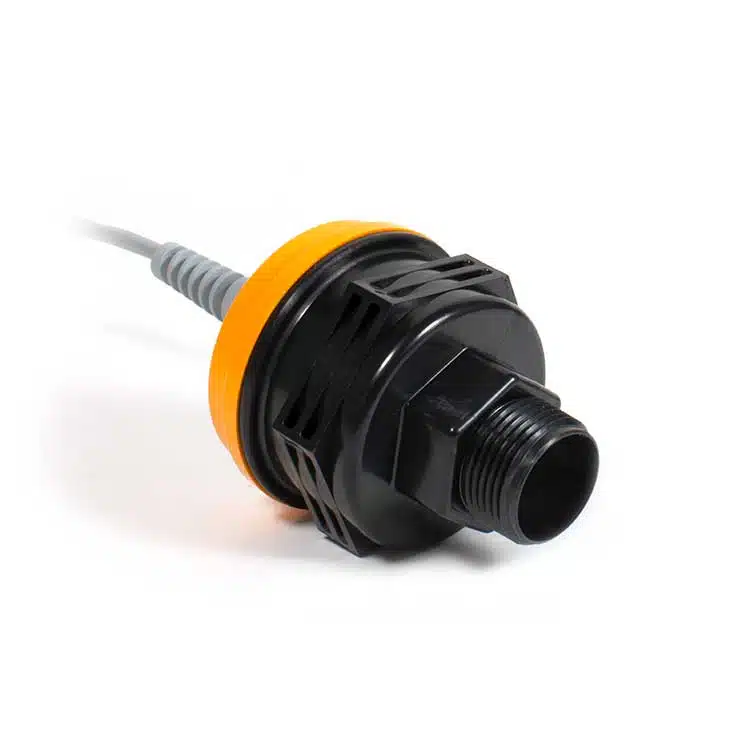

Ceramic Transducer: DST-2421, 3431, 5111

What is the DST ultrasonic level sensor used for?

The DST ultrasonic level sensor is designed for accurate liquid level measurement and pump control in large tanks and liquid storage applications. It works seamlessly with DCR controllers to provide a complete stand-alone level monitoring system.

Are DST sensors compatible with other controllers?

DST sensors are optimized for use with APG’s DCR series controllers. Compatibility with other controllers depends on the communication and power requirements.

Can I use DST sensors for non-liquid applications?

DST sensors are primarily designed for liquid level measurement. While they may work in some solid-level applications, performance depends on surface reflectivity and environmental conditions.

MOUNT	1", 2", 3", 3/4"
RANGE	1' – 15', 1' – 25', 1' – 30', 1' – 50', 16' – 30', 31' – 50'
INDUSTRY	Chemical, Food & Beverage, Industrial Automation, Marine, Oil & Gas, Water & Wastewater
ENCLOSURE PROTECTION	IP65, IP67, IP68, NEMA 12, NEMA 6P
