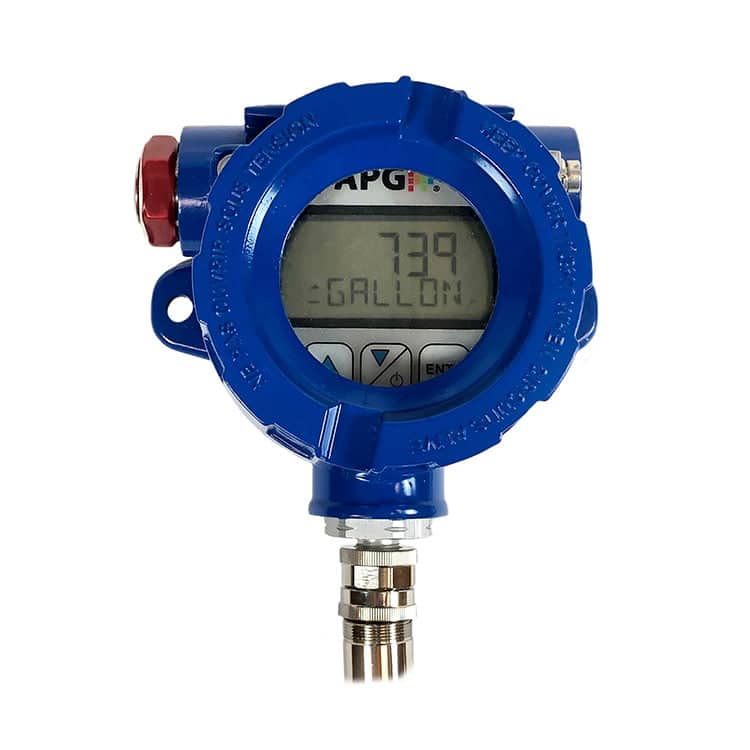

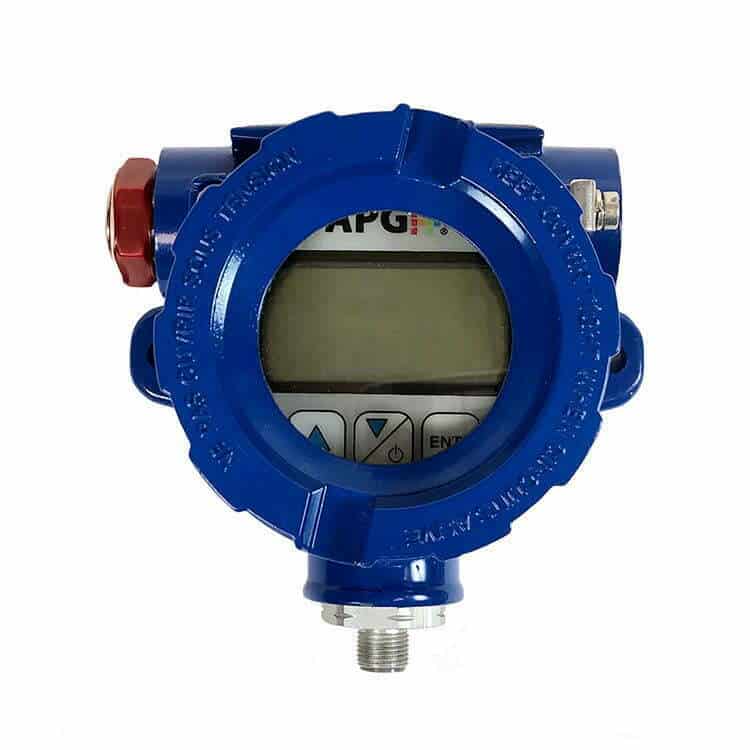

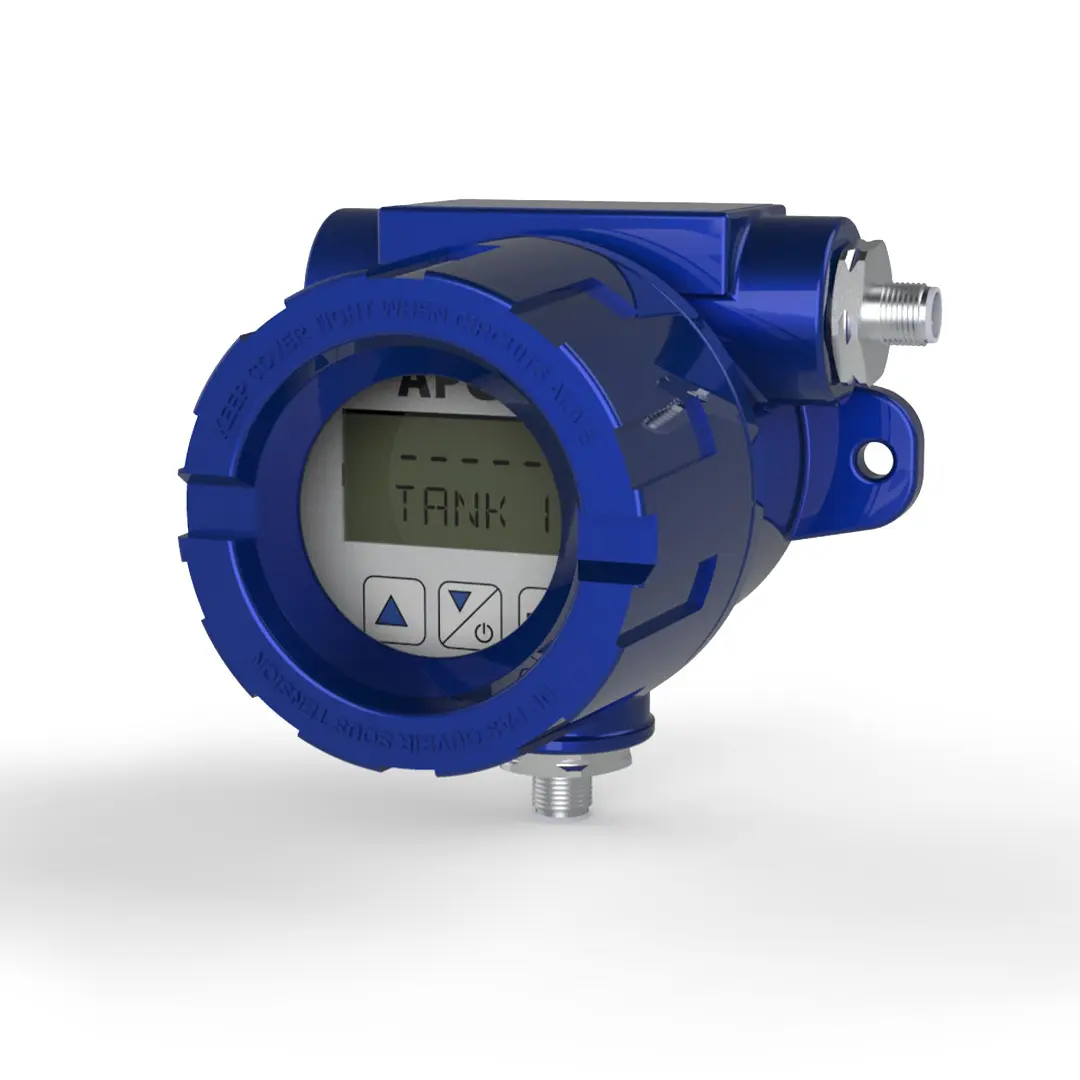

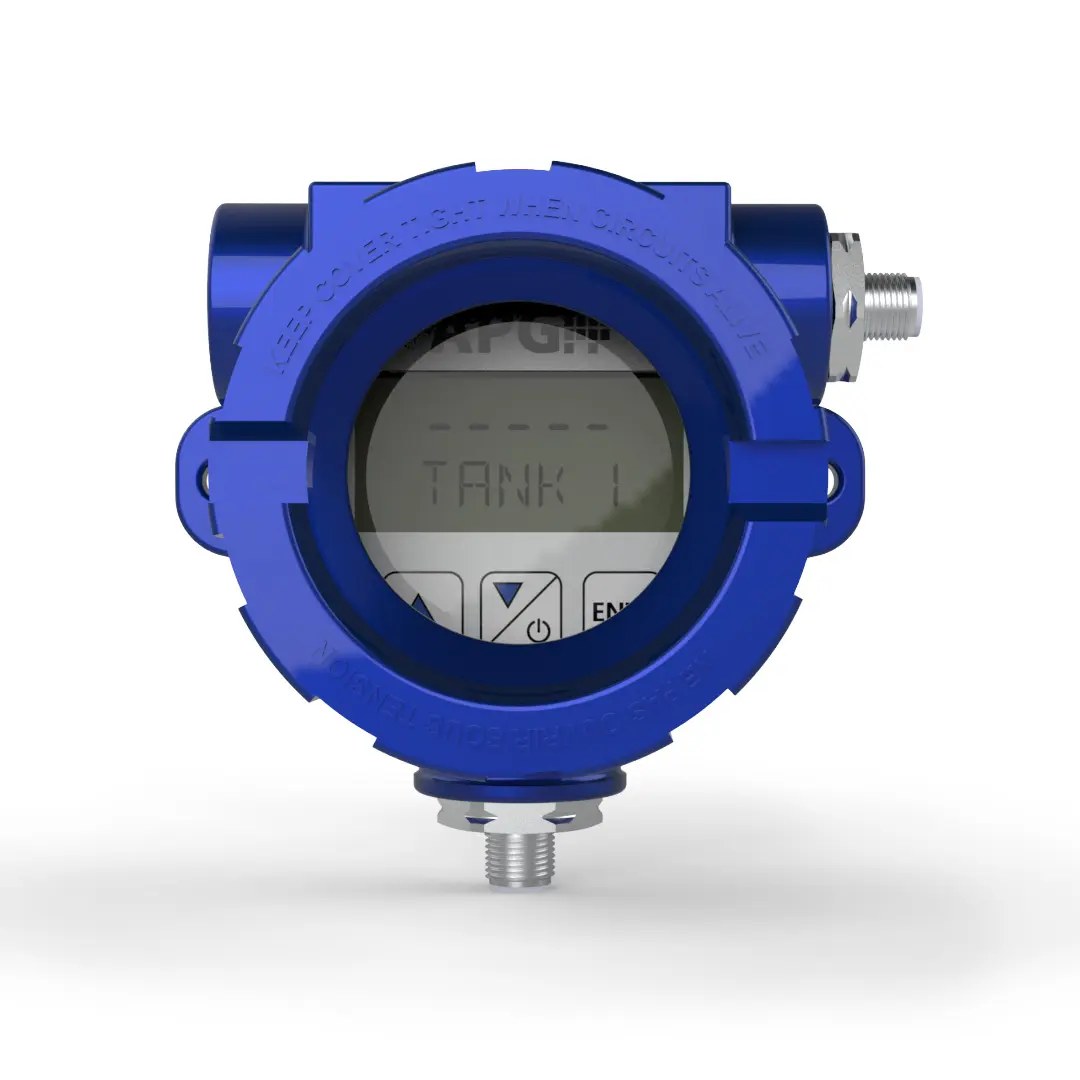

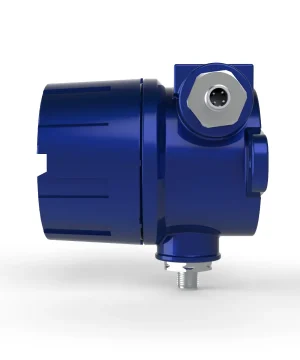

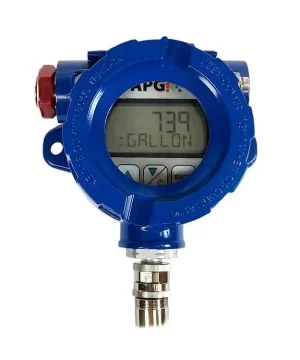

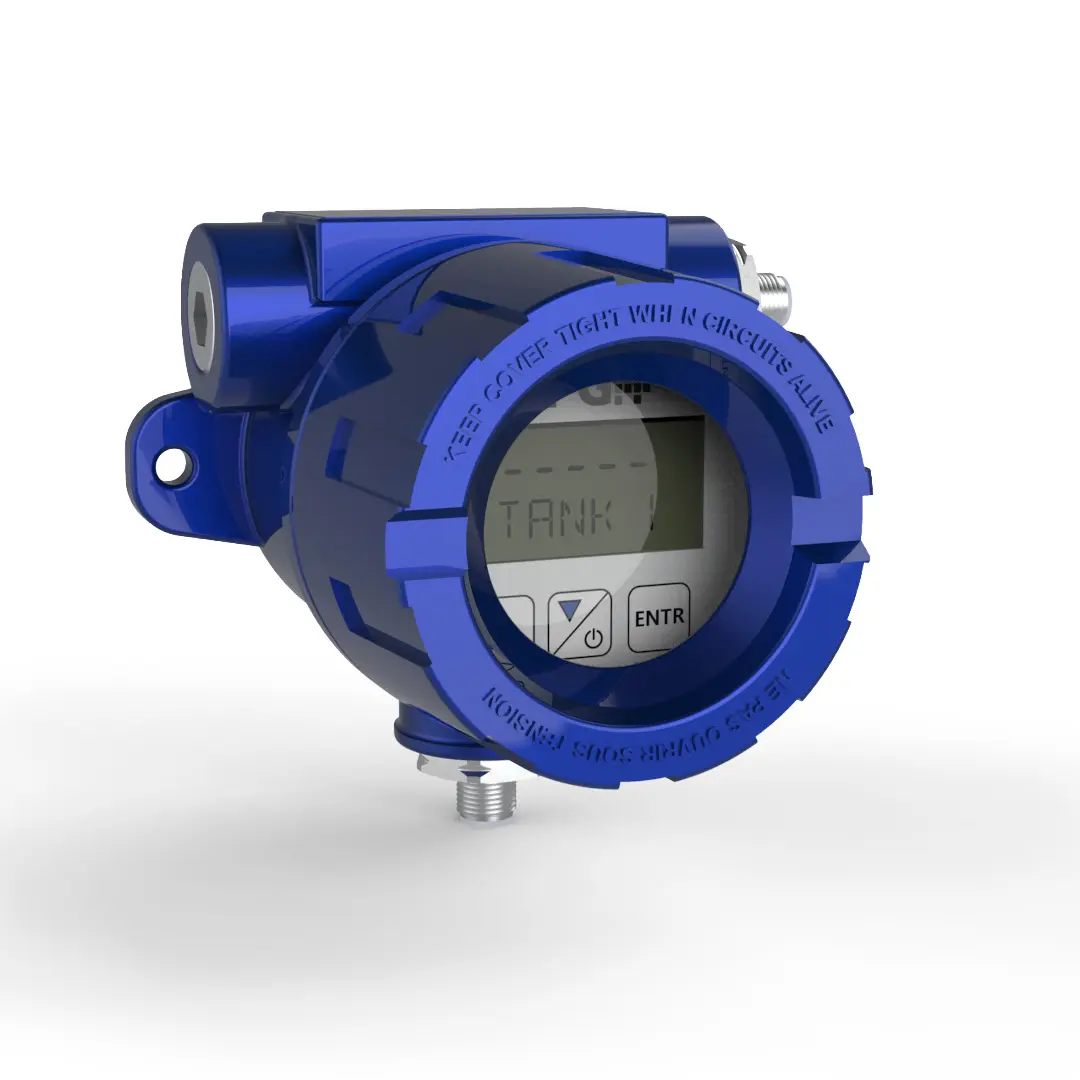

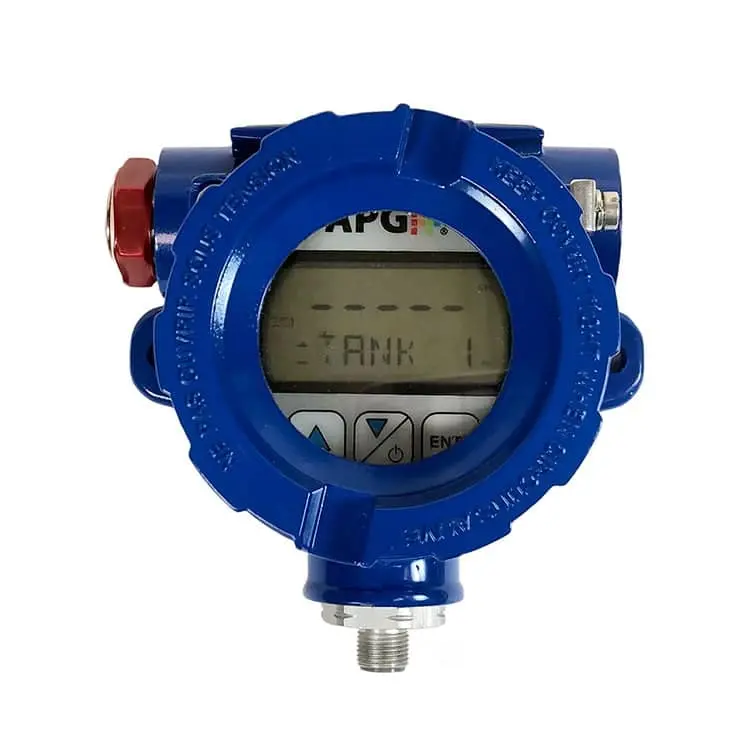

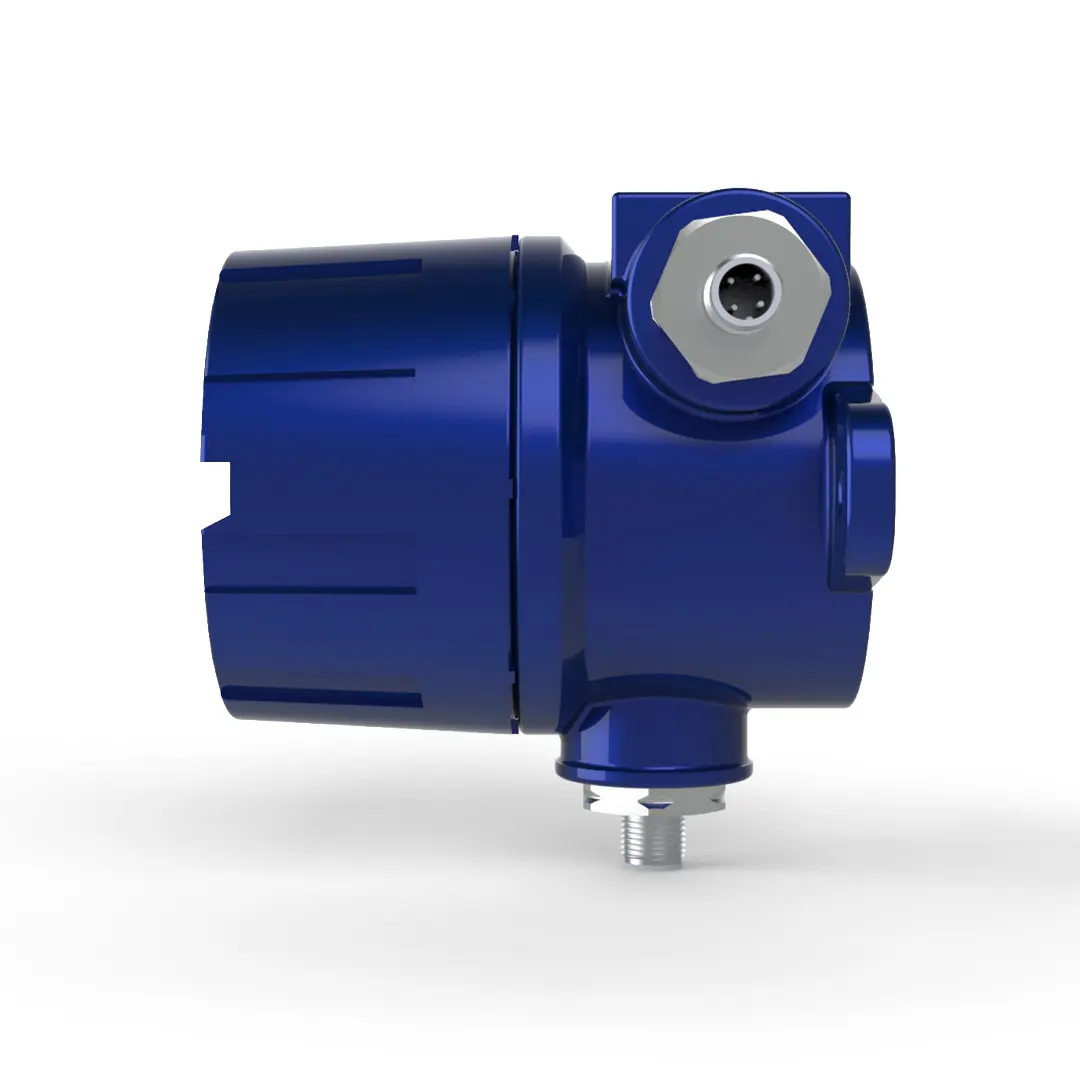

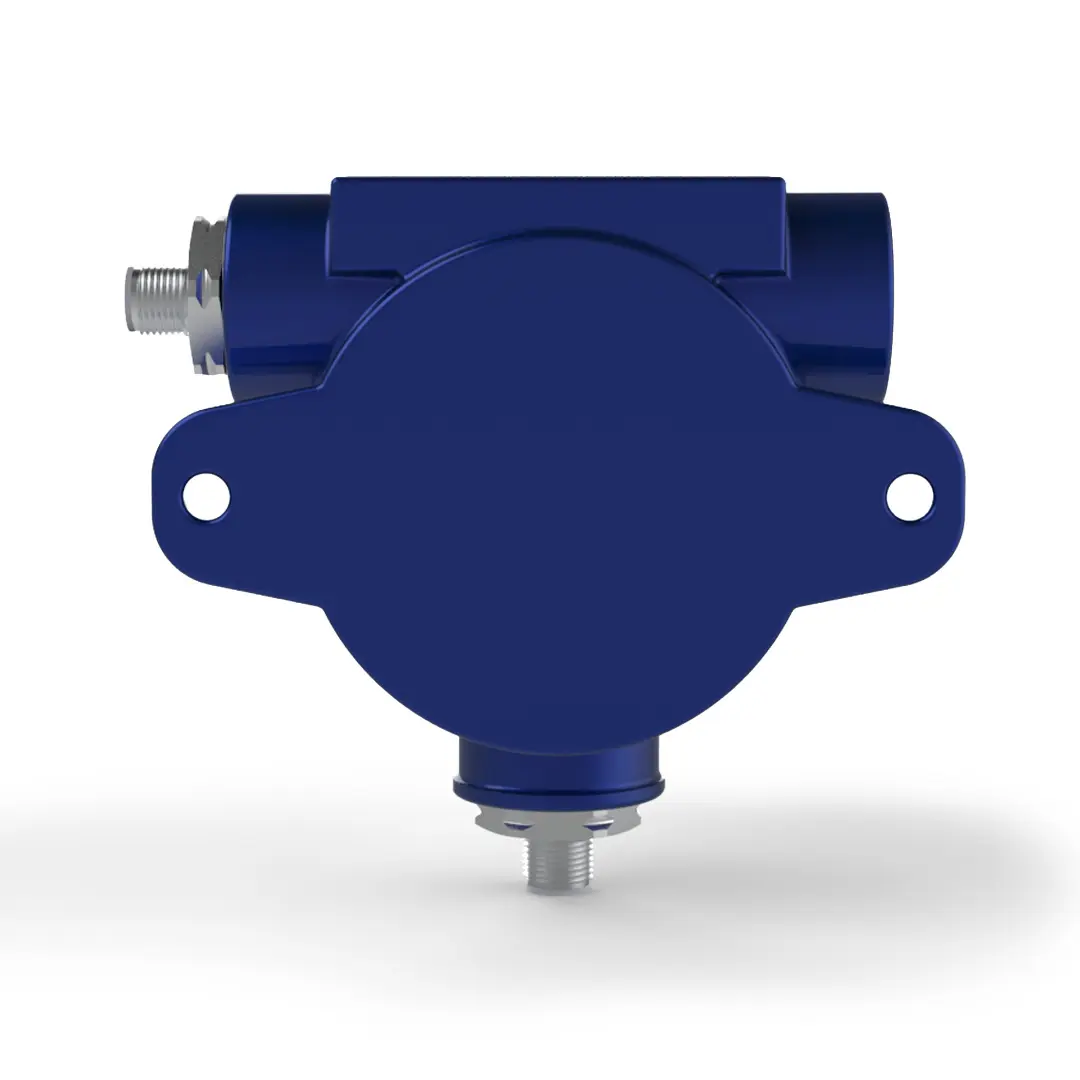

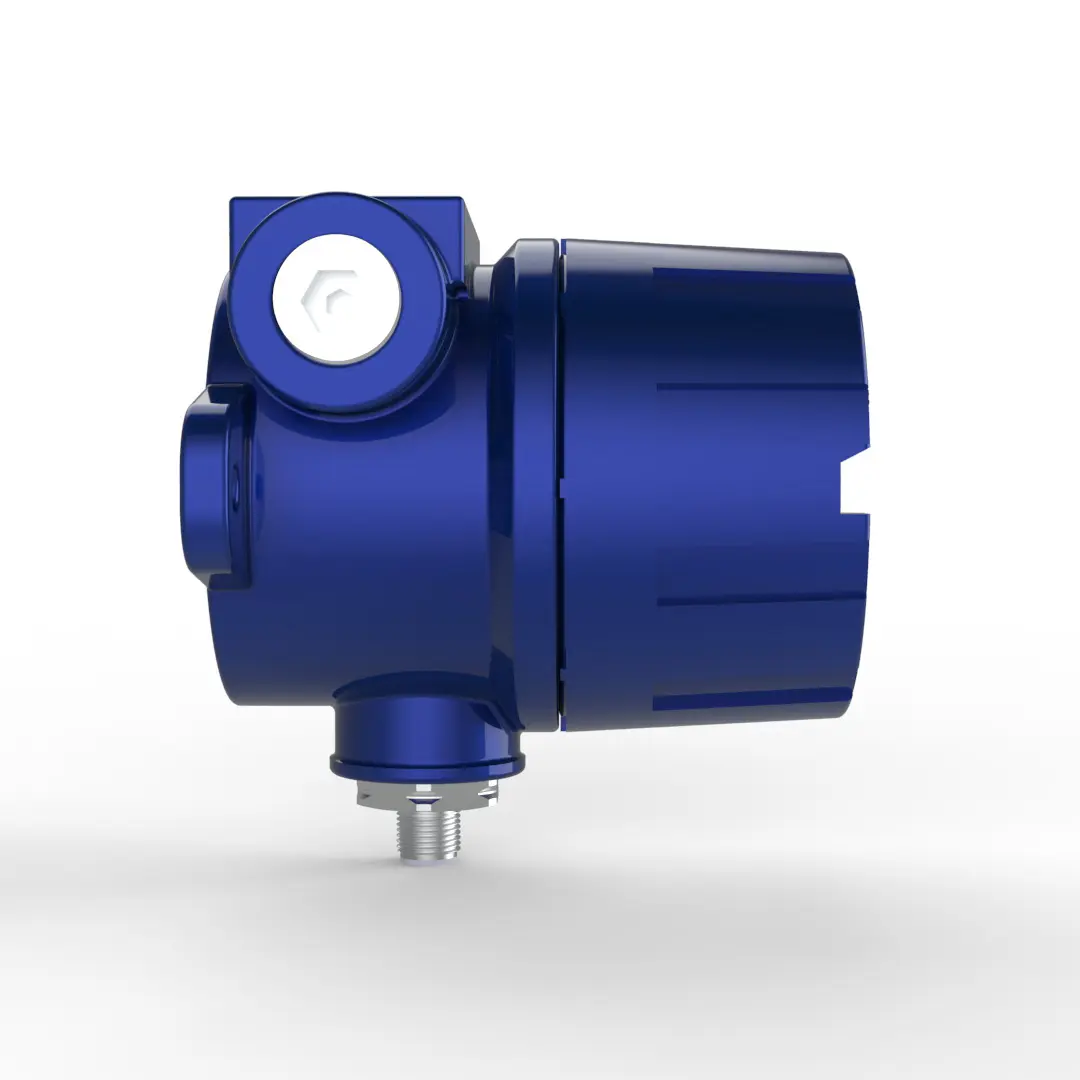

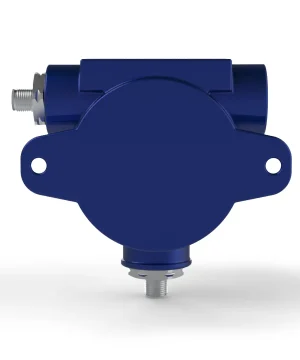

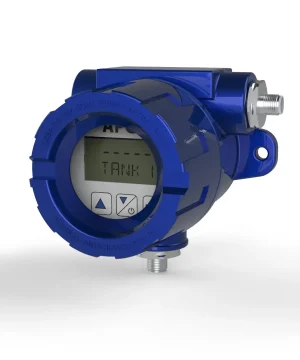

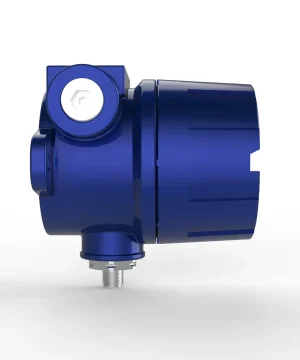

Class I, Zone 1 display that can power and control a Class I, Zone 0 or Class I, Zone 1 sensor, with optional connection to external monitoring network.
Self Contained, Intrinsically Safe Monitoring and Control System

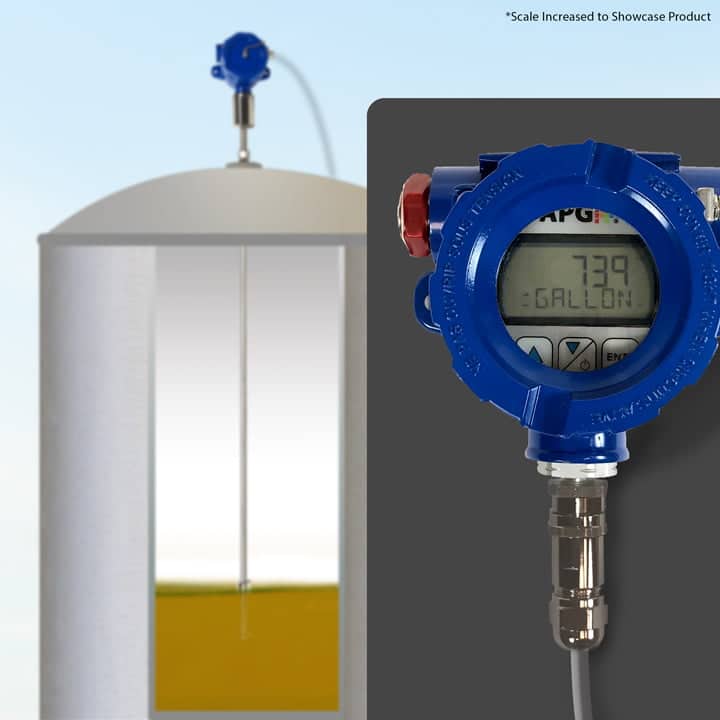

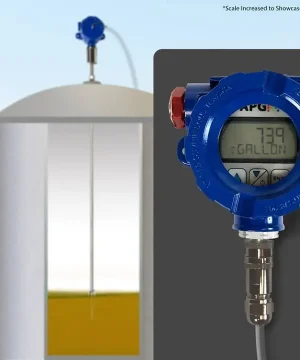

An MDI can be paired with an Intrinsically Safe sensor to create a simple and complete monitoring system for hazardous locations. No IS barriers or outside connections are necessary.
Power Conservation Applications
The MDI's Timed Interval configuration lets you set the amount of time both the MDI and the sensor it is controlling are powered up. Less time ON means longer battery life.
Additional Monitoring Options
With the Auxiliary Connection option, an external Modbus system can be connected to "sniff" the MDI. This connection does require an approved IS barrier.
RS-485
2400, 9600, 19200, 38400 baud
Display readings
Volume
Level
Distance
Pressure
Material
Pressure die cast Aluminum
Sizes
3"∅ face: 4.92"W, 4.15"H, 3.74"D (125mmW, 105.5mmH, 95mmD)
4"∅ face: 5.71"W, 4.94"H, 4.21"D (145mmW, 125.5mmH, 107mmD)
Display
5 digit LCD, 0.4 in. digits
Battery Power
3 - 3.6V Lithium
Low battery detection with 25% increments
Environmental Protection
IP66
Storage Temp
-49° - 194° F (-45° - 90° C)
Operating Temp
-22° - 185° F (-30° - 85° C)
CSA
Certificate: CSA19CA7021972B
Ambient: -30° to 85°C
Class I, Zone 1
AEx ib [ia GA] IIB 142°C (T3) Gb
Ex ib [ia GA] IIB 142°C (T3) Gb
ATEX
Certificate: Sira 18ATEX2289XX
II 2G Ex ib [ia Ga] IIB 142°C (T3) Gb
Ta = -30° to 85°C
IECEx
Certificate: IECEx SIR 18.0076X
Ex ib [ia Ga] IIB 142°C (T3) Gb
Ta = -30° to 85°C
Control
Modbus RTU
Online Access/Control
Via APG's Tank Cloud and RST-5003 or LOE controller
Non-IS installations only
