Explosion Proof Resistive Level Transmitter

RPM

As Durable As It Gets

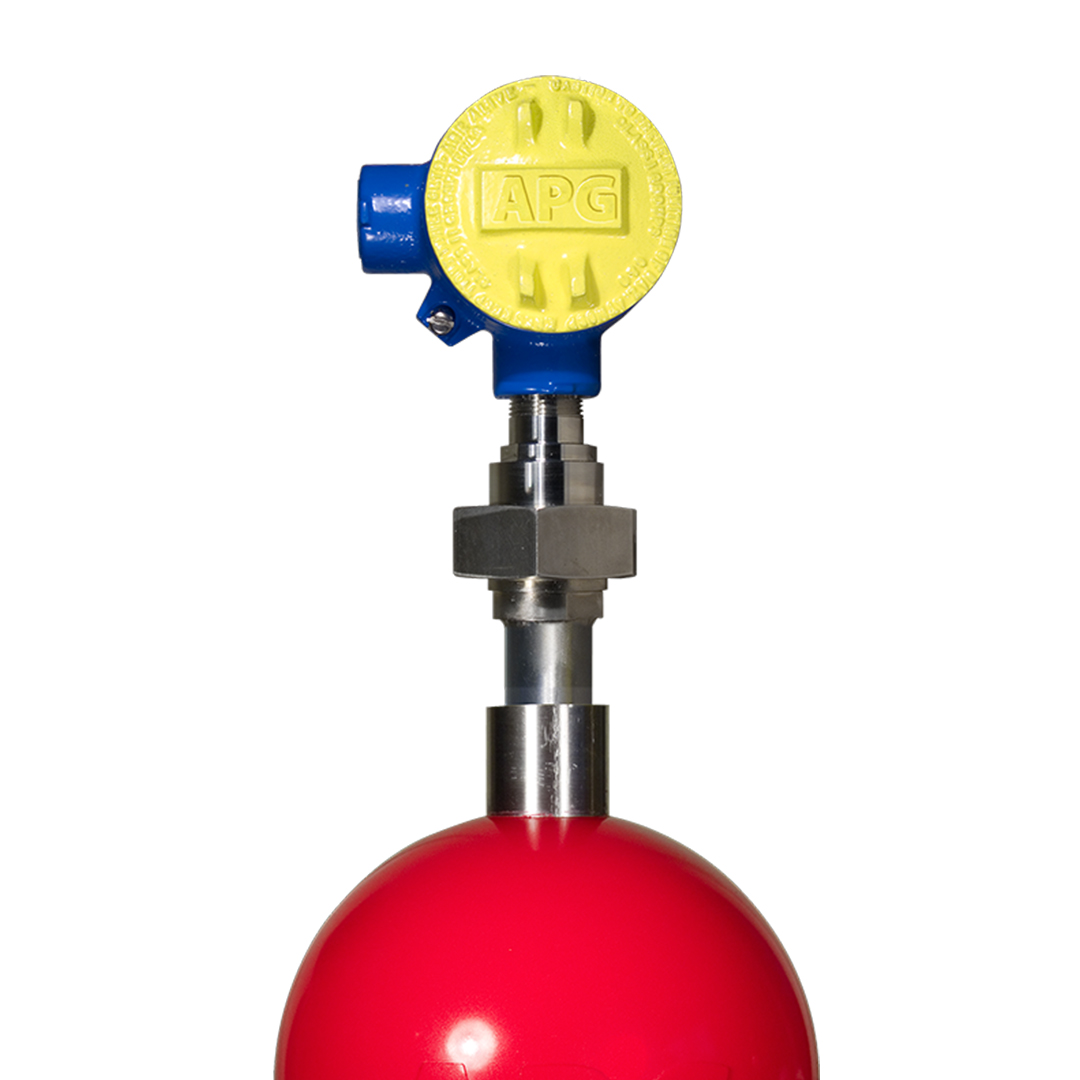

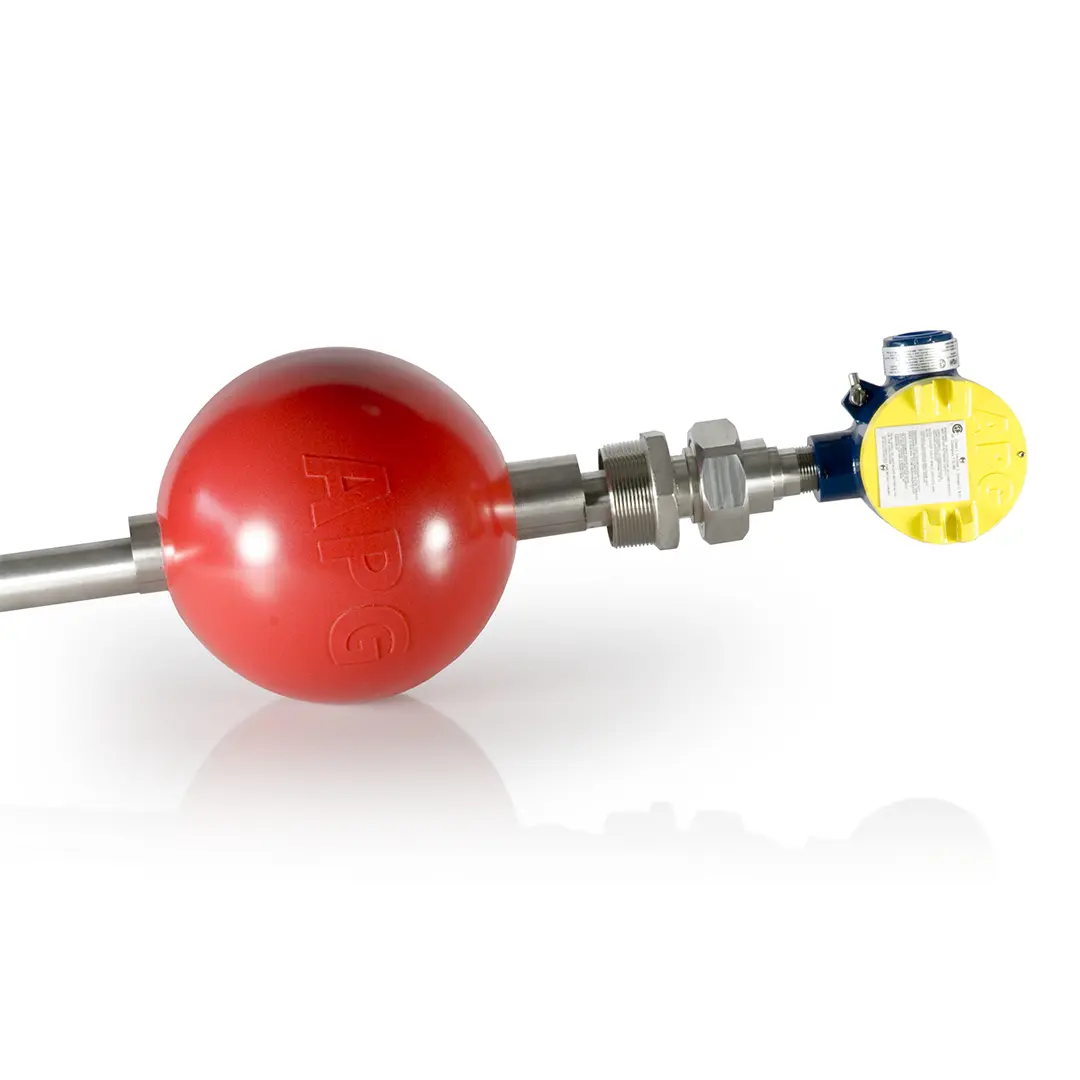

The RPM Explosion Proof Resistive Level Transmitter with a 1.25″ Stem is designed for durability and reliability in the most demanding applications. This customizable float level transmitter is perfect for measuring thick, viscous, and sludgy fluids commonly found in wastewater, sewage, and oil & gas industries. Known as a “mud probe,” the RPM is built for heavy-duty environments, offering ATEX/IECEx and CSA intrinsic safety or explosion proof certifications. It’s ideal for hazardous locations, including Class I, Div. 1 settings. The probe features a 316L SS stem, polyurethane float, and cast aluminum housing, ensuring long-lasting performance.

The RPM level transmitter is customizable to suit specific needs with adjustable probe lengths, float types, specific gravity options, and output choices. Its simple linear measurement provides accurate readings without the complications of non-contact methods. It’s also approved for marine applications with ABS certification. The RPM is a reliable solution for extreme conditions, offering both 4-20mA and resistive output options, with excellent performance at temperatures from -40 to 185°F.

  • Continuous level indication: Ongoing level measurement
  • Durable Stem Construction: Rugged 1.25”Ø 316L SS stem
  • Reliable Housing: NEMA 4 & 7 / IP65 cast aluminum housing protects highly reliable electronics
  • Accurate Readings: Anti-stick float design
  • Flexible Output Options: Resistive chain or loop-powered 4-20 mA output
  • Hazardous location approvals: Explosion Proof, Intrinsically Safe, Non-incendive

ⓘ

RPM
Install Guide

RPM
CSA Certificate
  • Resolution:
    • High: 0.25 in. (6.4 mm)
    • Standard: 0.5 in. (12.7 mm)
  • Accuracy: ± 0.12 in. (±3 mm)
  • Maximum Pressure: 72.5 psi (5 bar)
  • Enclosure Protection: NEMA 4 & 7, IP65
  • Typical Connection: (Resistive Chain Voltage Output)
    • High Res: I = VDCSupply / (40Ω * Probe Length in inches.)
    • Standard Res: I = VDCSupply / (20Ω * Probe Length in inches.)
  • Output: 4-20 mA; Resistive Chain Voltage Output
  • Internet: Via RST-5003, 4-20 mA only
  • Housing: Aluminum Die Cast
  • Cable Entry: 3/4 in. NPT
  • Stem Material: 316L SS
  • Stem Length: 48 to 240 in. (1219 to 6096 mm)
  • Float Materials:
    • Polyurethane
    • 316L SS
    • ABS
  • Class I, Division 1, Groups C & D T3 (Ta 40°C)
    • Explosion Proof
  • Ex d, IIB T3
    • Class I, Zone 1, AEx d, IIB T3 (Ta 40°C)
    • Explosion Proof
  • Class I, Division 2, Groups C & D T3 (Ta 85°C)
  • Class I, Division 2, Groups C & D T3 (Ta 85°C)
    • Non-incendive
  • Class I, Division 1, Groups C & D T3 (Ta 85°C)
    • Intrinsically Safe
  • Ex II 1G Ex ia IIB T3 Ga (Ta 85°C)
    • 4-20 mA
    • ATEX/IECEx Intrinsically Safe
What types of applications is the RPM suitable for?

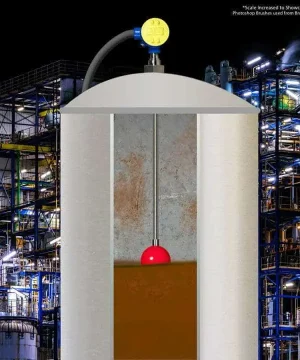

The RPM is designed for heavy-duty applications, including mud tanks, pits, wastewater, sewage, and mixed effluent. Its rugged construction makes it ideal for environments with thick, viscous, or sludgy fluids.

With its thick 1.25 inch stem and sturdy float, the RPM is built to withstand extreme turbulence from pumps and high-flow conditions, ensuring reliable performance in demanding applications.

Yes, the RPM is fully customizable, including options for probe length, float type, specific gravity, and output types, allowing it to be tailored to diverse application requirements.

The RPM is specifically designed to handle tanks with slurries or suspended solids, featuring a rugged stem and a float capable of operating effectively in such challenging conditions.

The RPM provides reliable and accurate measurements, with a resolution of ±0.12 inches.

OUTPUT

4-20 mA
MOUNT

Flange, No Mount, NPT
PROBE LENGTH

4' – 20'
ENCLOSURE PROTECTION

IP65, NEMA 4, NEMA 7
INDUSTRY

Chemical, Food & Beverage, Industrial Automation, Oil & Gas, Water & Wastewater
CERTIFICATION

ATEX, CE, CSA – General, Explosion Proof, IECEx, Intrinsically Safe

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.

RETURNS

Returns and allowances must be authorized by APG in advance, which authorization may be granted or withheld by APG in APG’s sole and absolute discretion. Read our full return policy HERE.

Suggested Products

Level Transmitter

RPE

General Purpose Resistive Level Probe
$0.00

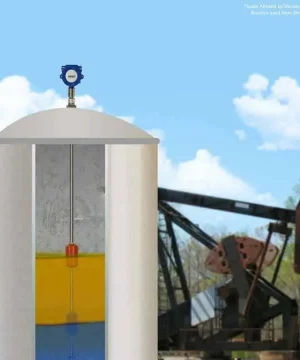

Explosion Proof Magnetostrictive Float Level Transmitter

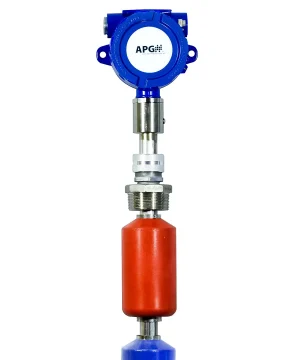

MPX-E/R

Explosion Proof Magnetostrictive Float Level Transmitter
$0.00
Level Transmitter

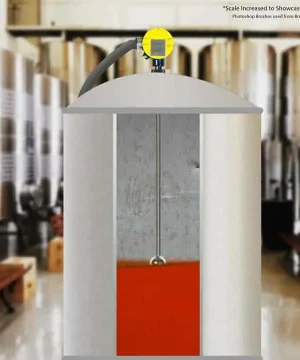

RPX
