Stainless Steel Custody Transfer Level Probe
Stainless Steel Custody Transfer Level Probe - Image 2
Stainless Steel Custody Transfer Level Probe - Image 3
Stainless Steel Custody Transfer Level Probe - Image 4

Stainless Steel Custody Transfer Level Probe

MPX-R API 18.2

Certified Accuracy For Oil Storage and Transfer

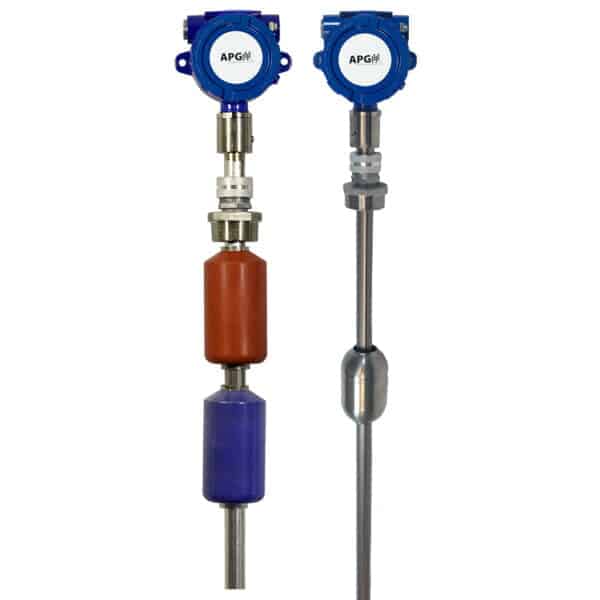

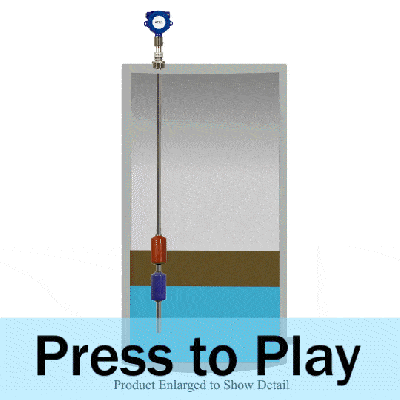

The MPX API 18.2 Custody Transfer Magnetostrictive Level Probes are designed for precise level and temperature measurements in oil storage and transfer applications, with API 18.2 certification. The MPX-R model features a 1″ stainless steel stem and include digital temperature sensors and robust floats that resist fouling for optimal performance in high turbidity environments.

The MPX API 18.2 probes provide Modbus RTU output via RS-485, offering highly accurate and repeatable level readings and configurable volume outputs. Ideal for hazardous locations, they offer multiple stem and float material options to ensure chemical compatibility. Remote monitoring capability enables easy management of alarms, sensor configuration, and user permissions.

  • Hazardous Location Certifications: Class 1 Division 1 Groups C & D, Class 1 Zone 1, Class 1 Zone 2
  • Accurate and Repeatable: Highly accurate and repeatable readings
  • Flexible Communication: RS-485 (Modbus RTU) output
  • Durable and Reliable: Rugged and reliable, lengths up to 31.5 feet (9.60 m)
  • Dual Measurement Capability: Dual level (interface) measurement
  • Tank Volume/Level Calculation: Tank volume/level, strapping table

ⓘ

MPX API 18.2 Datasheet

MPX API 18.2 User Manual

MPX API 18.2 Install Guide

Modbus Software Download
  • Resolution:
    • Modbus: 0.04 in. (1 mm)
  • Accuracy:
    • Distance: ±0.04 in. (1 mm) over range
    • Temp Sensors:
      • ±0.25°C over -40° – 85°C
      • ±0.13°C over +20° – 70°C
  • IP65
  • Operating Temperature: -40º – 85ºC (-40º – 185ºF)
  • Electrical Connection: Terminal Block, 12-24 VDC
  • Typical current draw: Modbus (RS-485): 25 mA
  • Reverse polarity protection: Yes
  • Surge protection: IEC 61000-4-5
  • RS-485: optional RST-6001 USB to RS-485 converter

Output: Modbus RTU (RS-485), Temperature output

  • Housing: Cast aluminum, epoxy coated
  • Stem:

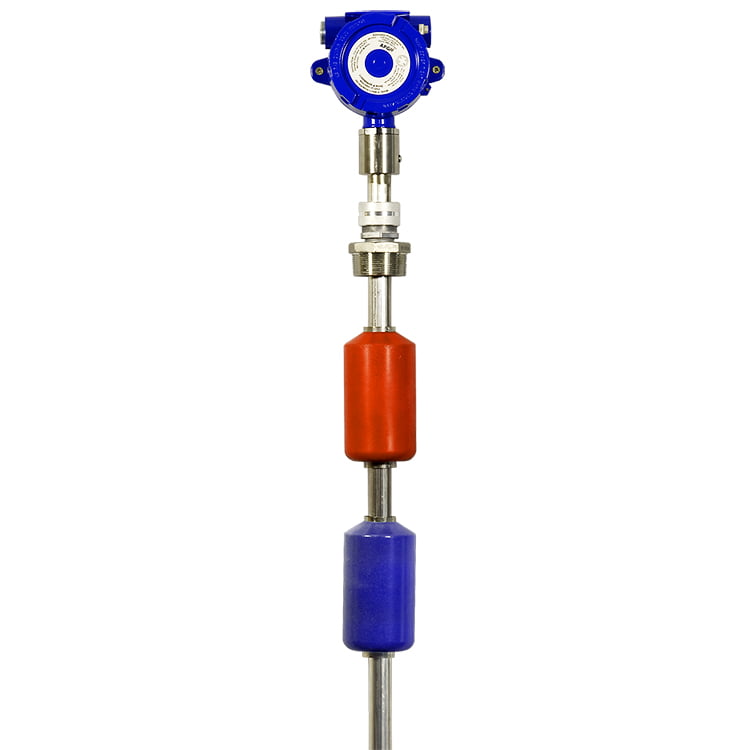

    • MPX-R API 18.2: 1.0” ø 316L SS

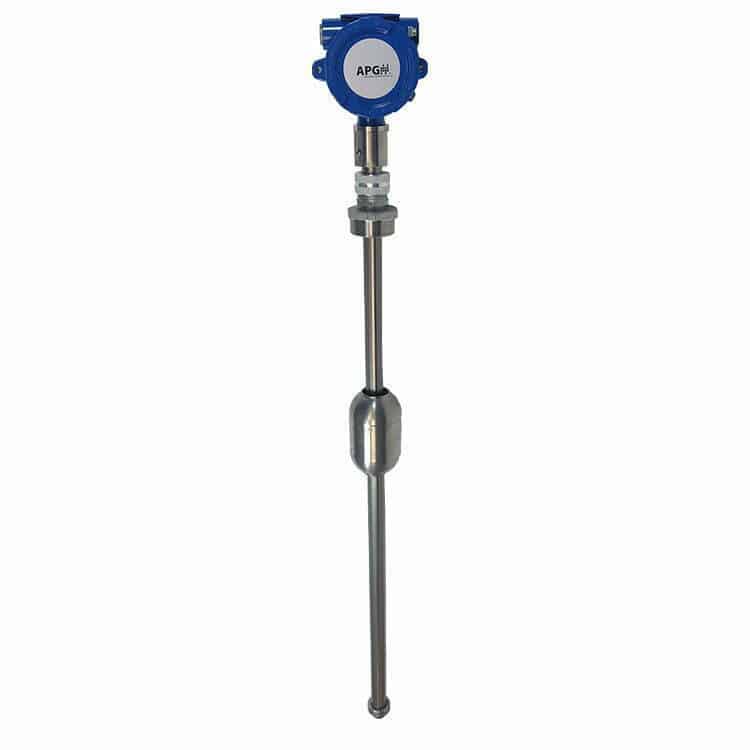

    • MPX-T API 18.2: 1.0” ø Titanium 2
  • Stem Length:
    • MPX-R API 18.2: 10 – 31.5 ft. (3.05 – 9.60 m)
    • MPX-T API 18.2: 10 – 25 ft. (3.05 – 7.62 m)
  • IP65
  • CSA:
    • Rated 12-24 VDC; 80 mA; Ta 85°C
      • Class I, Division 1 & 2, Groups C & D T4
      • Ex d IIB T4
      • Ex nA IIB T4
      • Class I, Zone 1; AEx d IIB T4
      • Class I, Zone 2; AEx nA IIB T4
What is the MPX API 18.2 Custody Transfer Magnetostrictive Level Probe used for?

The MPX API 18.2 probes are designed for precise level and temperature measurement in oil storage and transfer applications. They provide highly accurate and repeatable readings, making them ideal for custody transfer and lease tank monitoring.

API 18.2 certification ensures the probes meet industry standards for custody transfer measurements in lease automatic custody transfer (LACT) units and oil storage applications. This guarantees compliance, reliability, and accuracy in critical measurement processes.

  • MPX-R: Features a 1″ 316L stainless steel stem, suitable for general oil storage applications.
  • MPX-T: Uses a 1″ titanium stem, offering enhanced chemical compatibility for more demanding environments.

Yes, the probes support both level and configurable volume outputs, allowing users to tailor the data to their specific application needs.

Integration is straightforward via RS-485 Modbus RTU, a widely used industrial communication protocol. Configuration instructions and Modbus registers are provided in the product documentation.

MOUNT

No Mount, NPT
OUTPUT

Modbus
CERTIFICATION

CSA – General, Explosion Proof
ENCLOSURE PROTECTION

IP65
INDUSTRY

Chemical, Oil & Gas
PROBE LENGTH

10' – 31.5'

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.

RETURNS

Returns and allowances must be authorized by APG in advance, which authorization may be granted or withheld by APG in APG’s sole and absolute discretion. Read our full return policy HERE.
